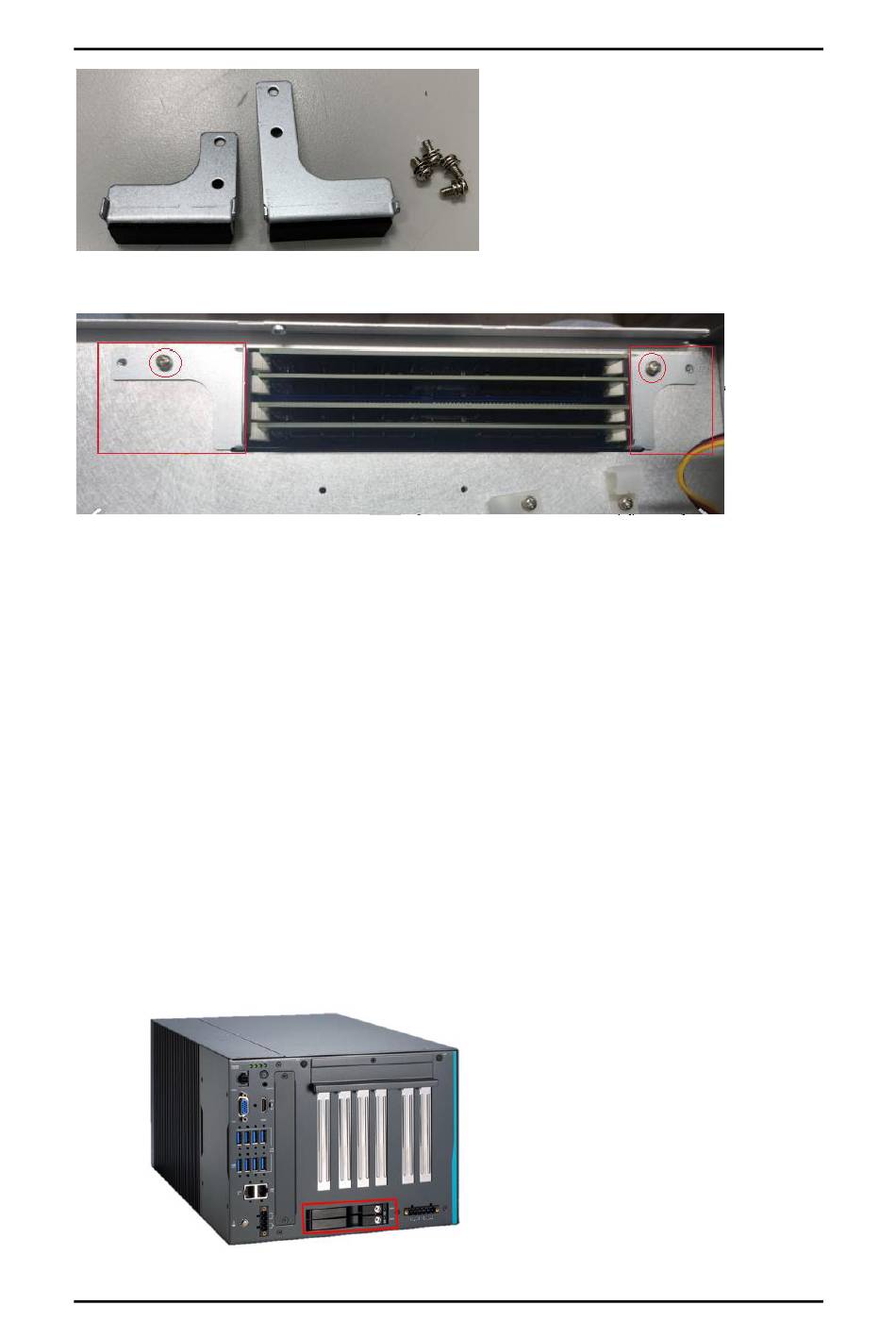

Step 6 After installing the memory module, screws two screws to fix the brackets.
Step 7 Close the side cover back to the chassis and fasten all screws. The installation is
complete.
2.5

Installing the Hard Disk Drive and NVMe SSD

The IPC972 offers two convenient external 2.5" SSD/HDD drive bays, one NVMe SSD socket
and a optional internal SSD/HDD bracket kit for installation. Please refer to the following
instructions and illustrations for then installation of storage drives.
Step 1 Turn off the system.
Step 2 Disconnect the power connector.
2.5.1 Installing external SSD/HDD
Step 1 Open the SSD/HDD tray
