1.7.17 Flexible IO- USB3.0x2 & COMx2(RS232/422/485) &
LAN1(AX93519)

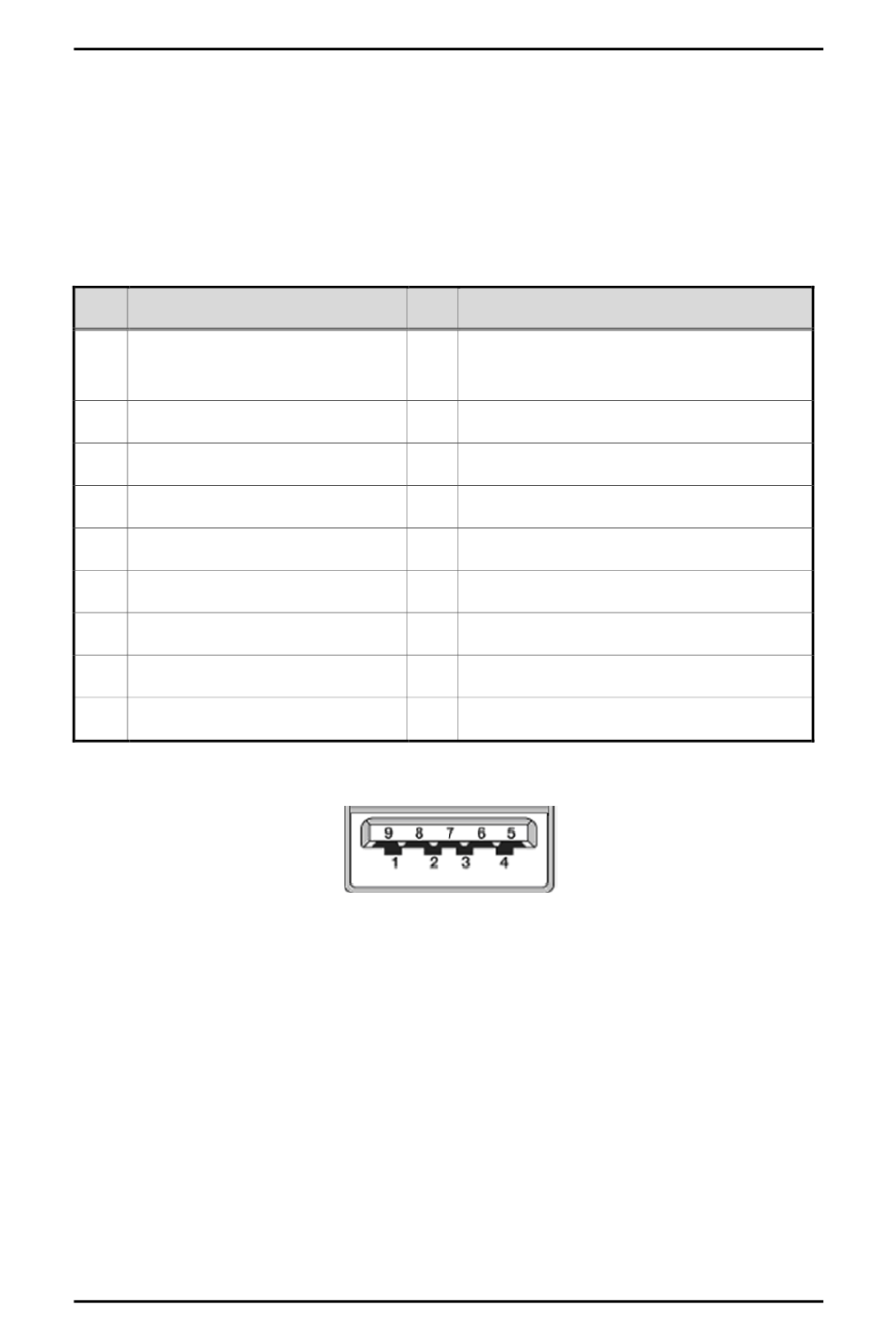

The Universal Serial Bus connectors are compliant with USB 3.0 (5Gb/s), providing ideal
interfaces for installing USB peripherals such as scanners, cameras and other USB devices.
Pins Signal USB Port 0
USB_VCC (+5V level standby
1
power)
2 USB_Data2-
3 USB_Data2+
4 GND
5 SSRX2-
6 SSRX2+
7 GND
8 SSTX2-
9 SSTX2+
Introduction
Pins Signal USB Port 1
USB_VCC (+5V level standby power)
1
2 USB_Data3-
3 USB_Data3+
4 GND
5 SSRX3-
6 SSRX3+
7 GND
8 SSTX3-
9 SSTX3+
