1.7.2
LAN+USB3.0 (CN8、CN9)

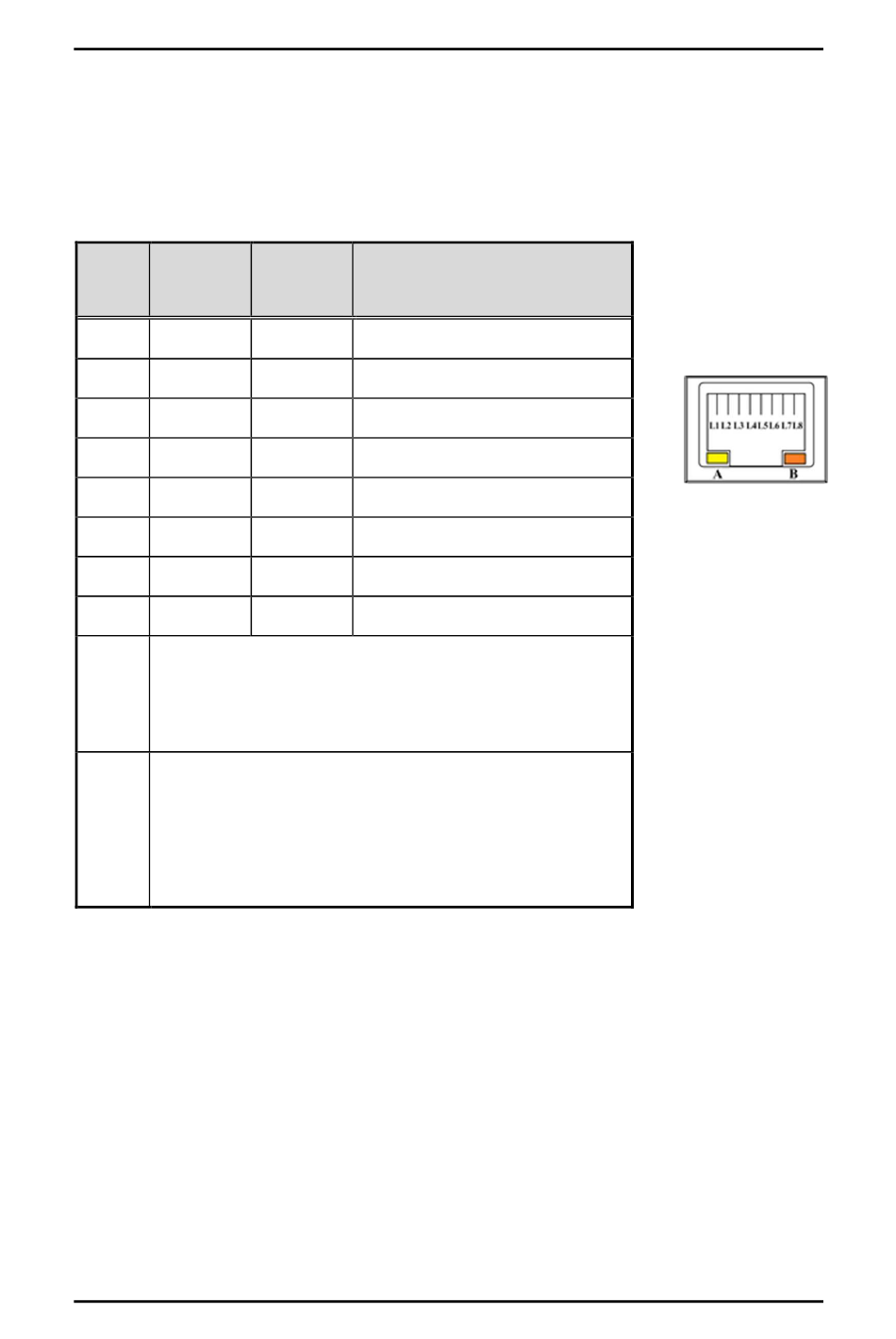

The system has two RJ-45 connectors: LAN1 and LAN2. Ethernet connection can be
established by plugging one end of the Ethernet cable into this RJ-45 connector and the other
end (phone jack) to a 1000/100/10-Base-T hub.
1000
Pins
Base-T
L1
BI_DA+
L2
BI_DA-
L3
BI_DB+
L4
BI_DC+
L5
BI_DC-
L6
BI_DB-
L7
BI_DD+
L8
BI_DD-
Active Link LED (Yellow)
A
Off: No link
Blinking: Data activity detected
Speed LED
1000: Orange
B
100: Green
10: OFF
Introduction
100/10
Descriptions
Base-T
TX+
Bidirectional or Transmit Data+
TX-
Bidirectional or Transmit Data-
RX+
Bidirectional or Receive Data+
N.C.
Bidirectional or Not Connected
N.C.
Bidirectional or Not Connected
RX-
Bidirectional or Receive Data-
N.C.
Bidirectional or Not Connected
N.C.
Bidirectional or Not Connected
IPC974 Series User's Manual
15
