IPC974 Series User's Manual

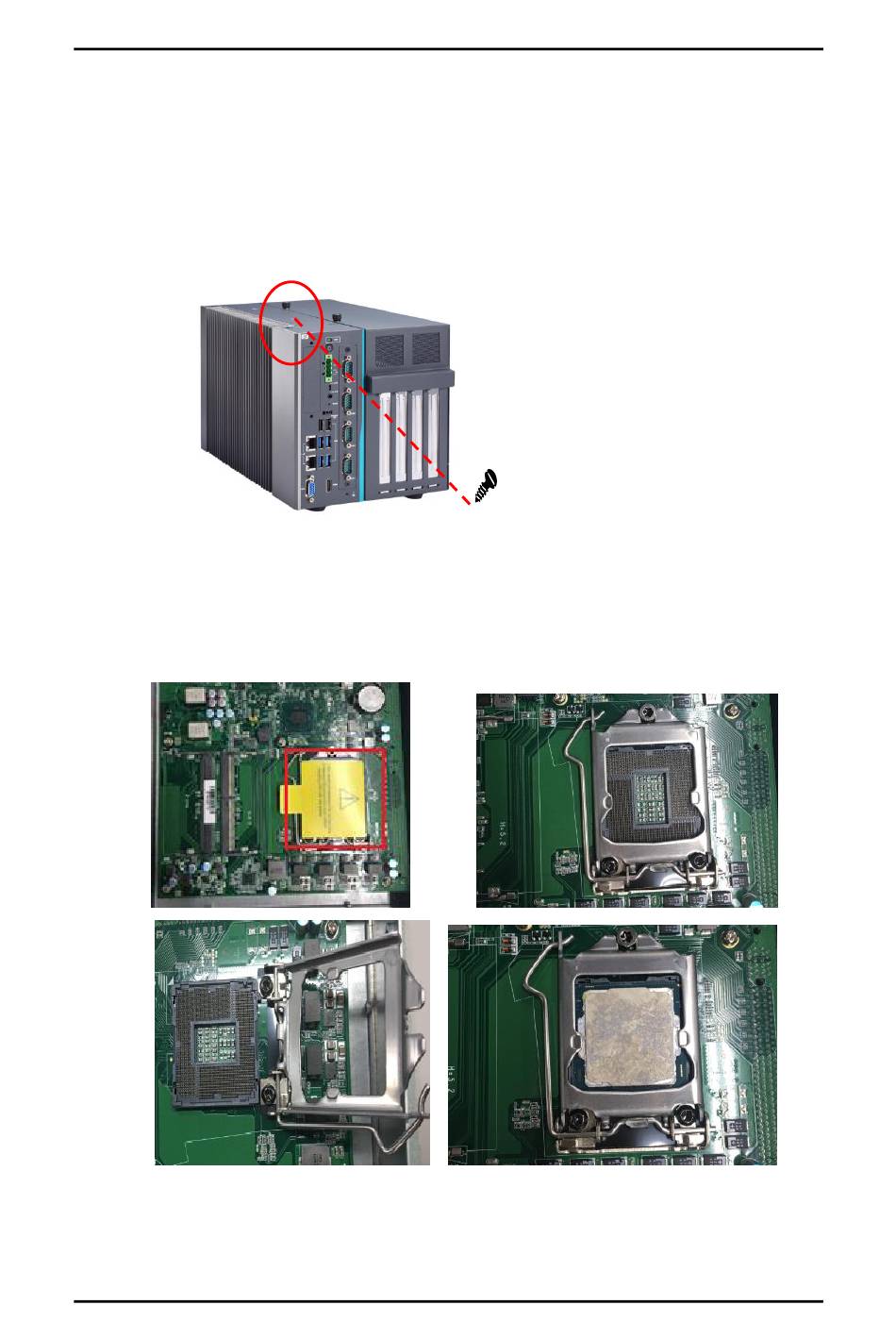

Procedure of Installation:
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3
Loosen screws to remove the heatsink cover from the chassis.
Step 4
After opening the heatsink cover, you can locate the CPU socket as marked. Align
pins of the CPU with pin holes of the socket. Beware of the CPU's orientation by
aligning the arrow mark on the CPU with the arrow key on the socket. Remove the
Mylar before you install the CPU into the socket.
34
Hardware Installation
