Electrical Wiring - Supply, Motors and Inputs
Always switch off power before doing any wiring.
Make sure that all the wiring is completed and that the motor is connected to the control card.
Recommended wire strip length should be 12mm for all connections to the plug in
terminal blocks.

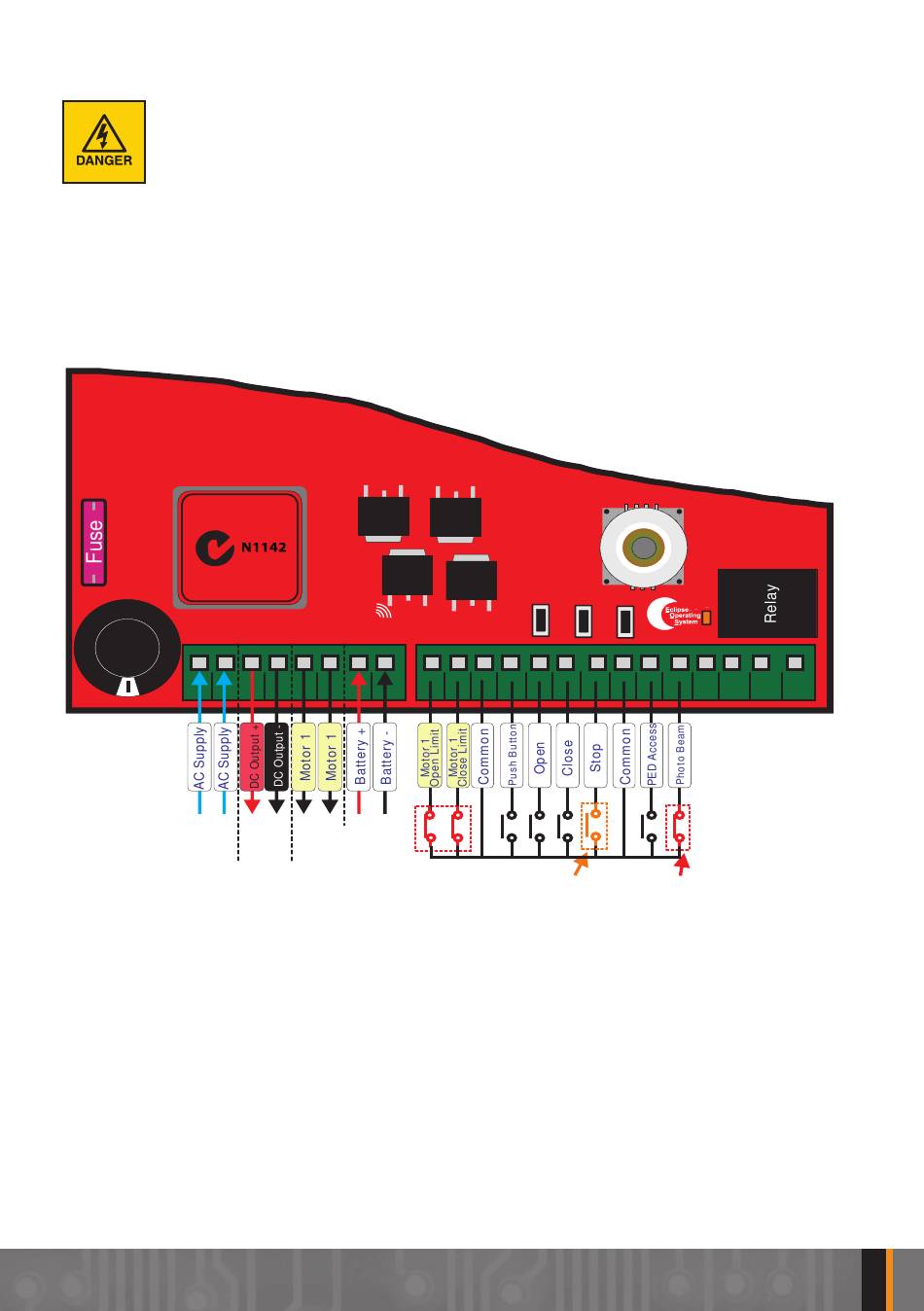

The diagram below shows the supply, motors, and inputs available and the factory default setting for each
input.
AC Supply : 24/12 Volts AC
Model : MCS
Designed by ELSEMA
IN AUSTRALIA
12 or 24 Volts
AC Supply
www.elsema.com
ELSEMA
1
Amp
max
Normally Closed
User can change
Master
Control
Open Close Stop
Normally Open Normally Closed
User can change User can change
