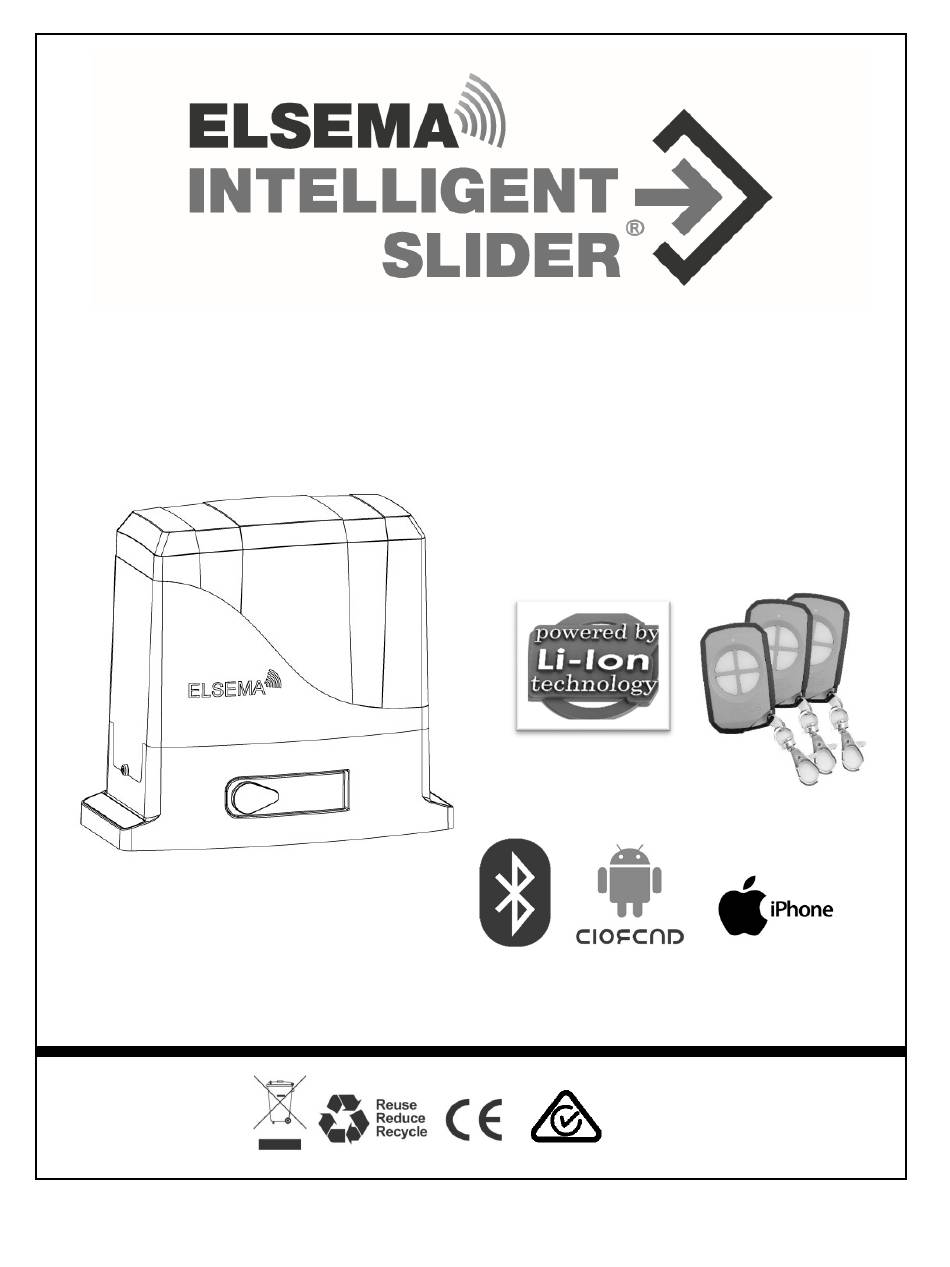

- Page 1 iS900Solar24 SLIDING GATE OPENER USER MANUAL Bluetooth charge monitoring app AXIOM SLIDING GATE KIT USER MANUAL...
-
Page 2: Safety Instructions
Safety Instructions Save these instructions for future reference. WARNING! FAILURE TO FOLLOW THESE SAFETY AND INSTALLATION INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND OR DAMAGE TO PROPERTY AND EQUIPMENT Appropriately licensed and competent personnel only should install the automation equipment. ... -
Page 3: Kit Contents
Kit Contents Sliding gate motor with Smart solar controller and Li-ion Battery pack 3 x PentaFOB ® Remotes Fastener Pack Motor base plate 4 x Gear rack kit with mounting screws GR-4 Long range reflector type photo electric beam. PE-1500 1 x 24 Volt, 40W Solar panel 670 x 570 x 35 mm AXIOM SLIDING GATE KIT USER MANUAL... - Page 4 Dimensions AXIOM SLIDING GATE KIT USER MANUAL...
-
Page 5: Technical Features
TECHNICAL FEATURES: iS900Solar24 Motor 24Volts DC motor Voltage Max Absorbed Power 120 Watts Nominal Thrust 330N Power Supply 240 Volts AC Nominal Input Current 3 Amps Motor Speed 250 mm/sec Maximum Gate Weight 900 kg Duty Cycle 60% over 12 min Operating Temperature -20°c - +50°c Solar Panel... - Page 6 B. INSTALLATION WITH CONCRETE Assemble the base plate bracket as shown in fig 1. Fig 1 Run Conduit and power cables, accessories and sensor cables through the slot in the base plate before pouring concrete. Make sure you have enough length on the cable to wire into the control card.
- Page 7 C. INSTALLATION ON EXISTING FOUNDATION Use TruBolts included in the kit to secure the base plate on solid concrete surface. Making sure that the distance from both edges of the base plate to the gate should be the same. Excess length of the TruBolt will need to be cut.
-
Page 8: Check Gear Rack Installation
E. GEAR RACK INSTALLATION 1. Move the Gate leaf to fully closed position. 2. Place the first piece of the rack over the pinion leaving about 1.5mm gap and mark the drilling point on the gate, drill a pilot hole and screw the rack using the self-tapping screw with the reinforcing plate. -
Page 9: Limit Switch Adjustment
G. LIMIT SWITCH ADJUSTMENT Install the limit switch magnets as shown in fig 6. The limit switch magnets should be initially installed at least 50mm before the end of travel on both sides. Final adjustment should be done after successful travel learning with the control card. -
Page 10: Electrical Connection
H. Manual Release The operator has an unlocking mechanism. Once it’s unlocked, the gate can be operated manually in both directions. The unlocking key is needed to unlock the motor. Please keep the key in a safe place for later use. The manual release lever is located towards the bottom of the operator. (See pictures below). -
Page 11: Maintenance
Battery Disposal When the batteries have reached its end of life, please dispose of the batteries in accordance to your local council regulations. Elsema encourages all batteries to be recycled in accordance with The Australian Battery Recycling Initiative (ABRI). Please visit https://batteryrecycling.org.au/... - Page 12 Notes AXIOM SLIDING GATE KIT USER MANUAL...
-
Page 13: Service History
Service History Date Maintenance Installer AXIOM SLIDING GATE KIT USER MANUAL... - Page 14 Backup batteries Vehicle Loop Detectors Photo electric beams Magnetic locks Wireless keypads Pre formed loop Visit www.elsema.com to see our full range of Gate and Door Automation products AXIOM SLIDING GATE KIT USER MANUAL...
