Summary of Contents for Elsema AXIOM iS600 Series
Page 1

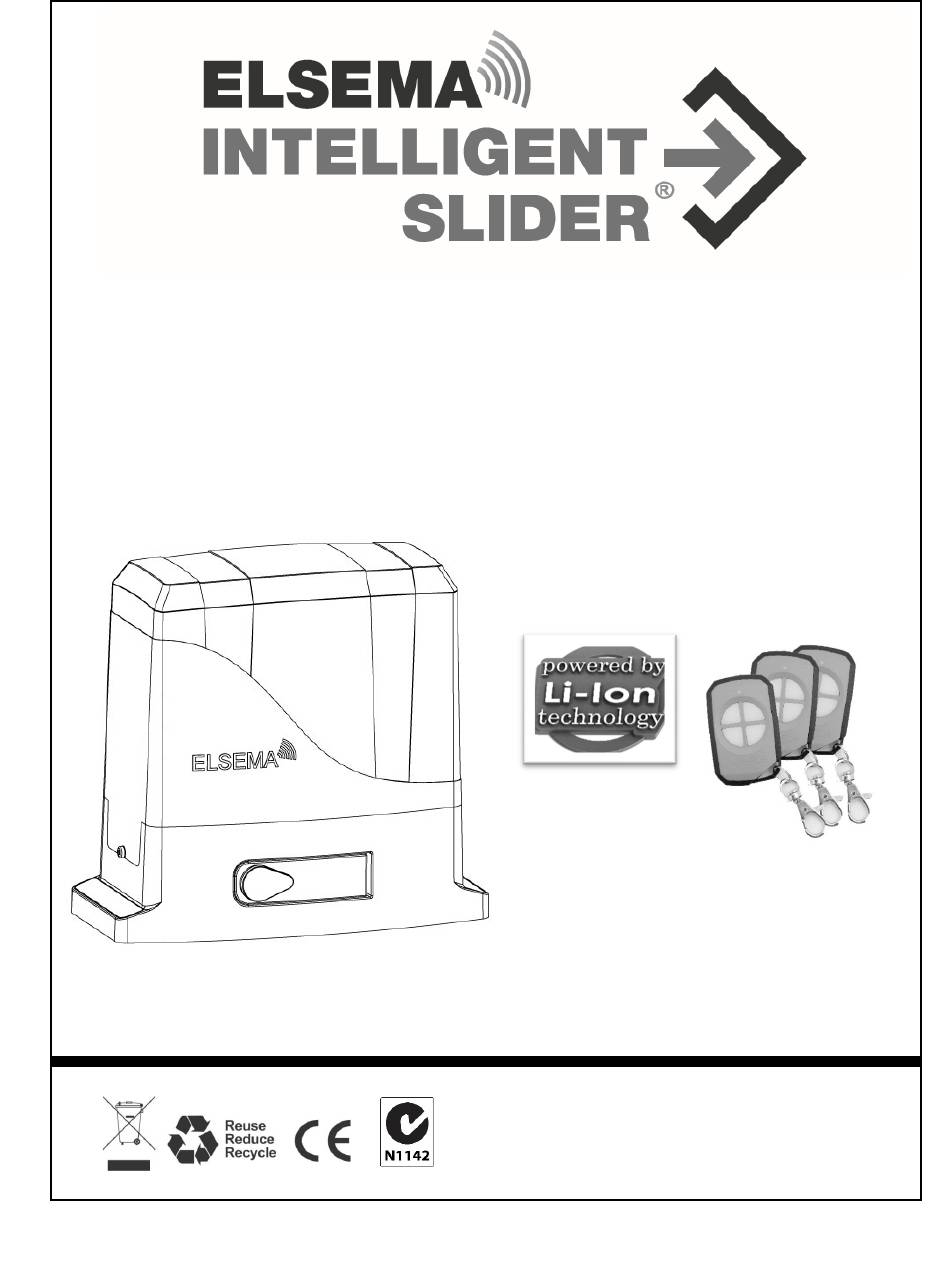

iS600 / iS900 AXIOM Series SLIDING GATE OPENER USER MANUAL Includes 3 Keyring Remotes AXIOM SLIDING GATE OPENER MANUAL ...
Page 2
INDEX GENERAL SAFETY PRECAUTION …………………………………… KIT CONTENTS ………………………………………………………….. DIMENSION ……………………………………………………………... TECHNICAL FEATURES ……………………………………………… 1.5 INSTALLATION A. INSTALLATION CHECK……………………………………………. B. INSTALLATION ON NEW FOUNDATION………………………... C. INSTALLATION ON EXISTING FOUNDATION………………….. D. OPERATOR MOUNTING……………………………………………. E. GEAR RACK INSTALLATION……………………………………… F. CHECK GEAR RACK INSTALLATION……………………………. G.
11) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system.
Page 4
1.2 Kit Contents iS600 / iS900 Kit Sliding gate motor 3 x PentaFOB remotes Fastener pack Sliding gate motor Motor base plate 4 x Gear rack kit with mounting screws Long range photo electric beam Warning label 3 x PentaFOB Remotes iS900B Kit (Battery Backup) Sliding gate motor with Lithium Battery...
1.4 TECHNICAL FEATURES: iS600 iS900 Motor Voltage 24Volts DC motor 24Volts DC motor Max Absorbed Power 80 Watts 120 Watts Nominal Thrust 220N 330N Power Supply 240 Volts AC 240 Volts AC Nominal Input Current 2 Amps 3 Amps Motor Speed 15 m/min 15 m/min Maximum Gate Weight...
Page 7
B. INSTALLATION WITH CONCRETE Assemble the base plate bracket as shown in fig 1. Fig 1 Run Conduit and power cables, accessories and sensor cables through the rectangular cut- out in the base plate. Make sure you have enough length on the cable to wire into the control card.
Page 8
C. INSTALLATION ON EXISTING FOUNDATION Use TruBolts included in the kit to secure the base plate on solid concrete surface. Making sure that the distance from both edges of the base plate to the gate should be the same. Excess length of the TruBolt will need to be cut.
E. GEAR RACK INSTALLATION 1. Move the Gate leaf to fully closed position. 2. Place the first piece of the rack over the pinion leaving about 1.5mm gap and mark the drilling point on the gate, drill a pilot hole and screw the rack using the self-tapping screw with the reinforcing plate.
G. LIMIT SWITCH ADJUSTMENT Install the limit switch magnets as shown in fig 6. The limit switch magnets should be initially installed at least 50mm before the end of travel on both sides. Final adjustment should be done after successful travel learning with the control card.
H. Manual Release The operator has an unlocking mechanism. Once it’s unlocked, the gate can be operated manually in both directions. The unlocking key is needed to unlock the motor. Please keep the key in a safe place for later use. The manual release lever is located towards the bottom of the operator. (See pictures below).
1.6 MAINTENANCE Maintenance should be performed at least every six months. If it is used in high traffic area, a more regular maintenance should be performed. Disconnect the power supply Clean and lubricate the screws, the wheels of the gate with grease. Check limit magnets position and fixture.
Page 14
Service History Date Maintenance Installer 12 AXIOM SLIDING GATE OPENER MANUAL ...
Page 15
Solar Kits Solar panels Backup batteries Vehicle Loop Detectors Photo electric beams Magnetic locks Wireless keypads Pre formed loop Visit www.elsema.com to see our full range of Gate and Door Automation products AXIOM SLIDING GATE OPENER MANUAL ...
