Menu 4 – Photoelectric Beam
The Photoelectric Beam or sensor is a safety device which is placed across the gate and when the beam is
obstructed it stops a moving gate. The operation after the gate stops can be selected in this menu.
Photoelectric
Menu No.
Beam Feature
4.1 Photoelectric Beam
4.2 Exit
The factory default for the PE beam input is "normally closed" but this can be changed to normally open in
Menu 3.1.
Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto
Close options are used.

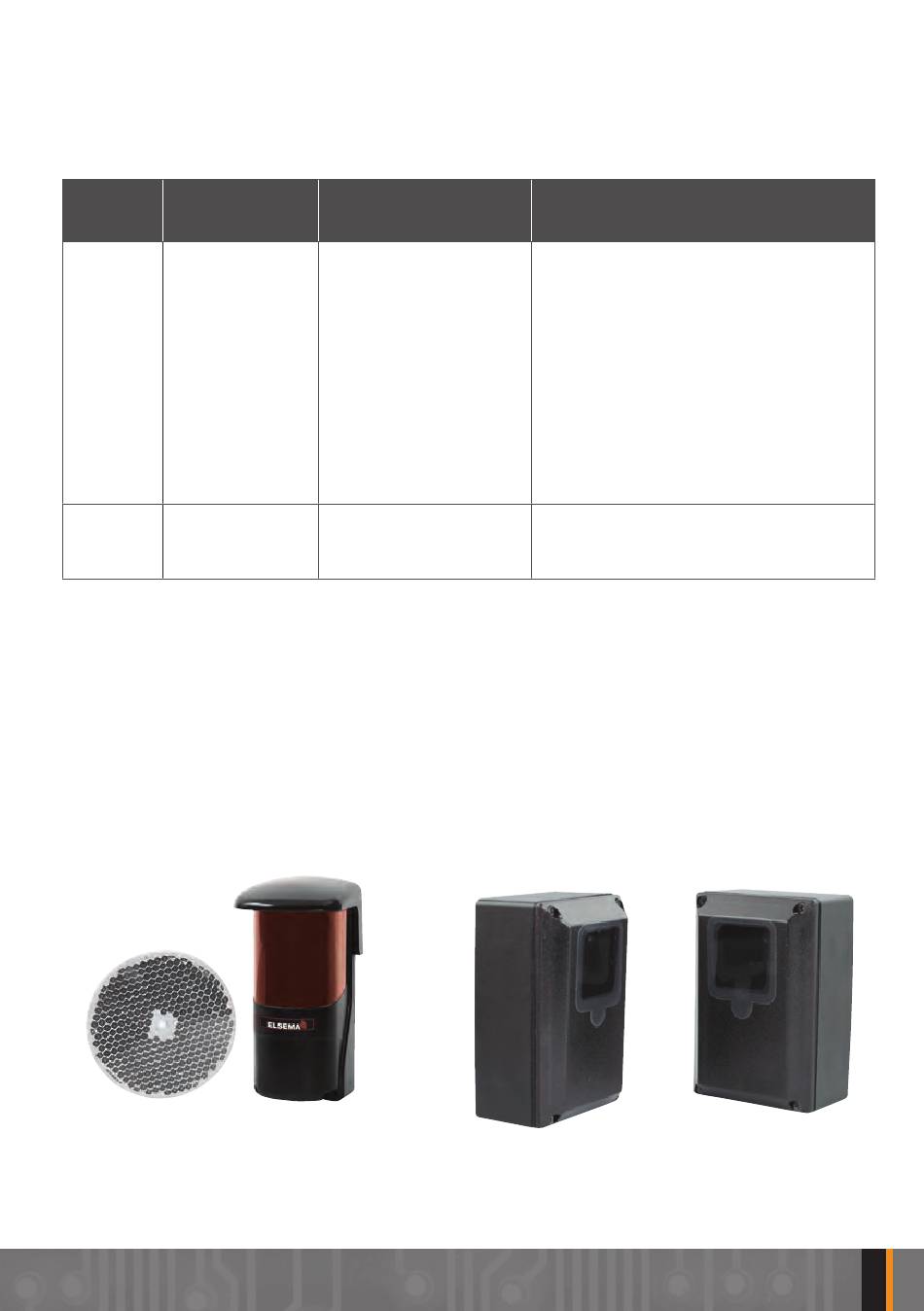

Elsema sells different types of Photoelectric Beams. We stock Retro-Reflective and Through Beam type
Photoelectric Beams.
PE1500
(Polarised Retro-Reflective Type)
www.elsema.com
Factory
Default
PE Beam stops and opens
gate on close cycle
Adjustable
PE Beam stops and opens
gate on close cycle
------------------------------------
PE Beam stops gate
on close cycle
------------------------------------
PE Beam stops gate
on open & close cycle
------------------------------------
PE Beam stops and closes
gate on open cycle
PE24
(Through-Beam type)
