Service Call Output
Either output 1 or output 2 can be changed to service call indicator. This will trigger the output when the
software service counter is reached. Used to alert installers or owners when the gate is to be serviced.
Using Elsema's GSM receiver allows installers or owners to get a SMS message and a call when the
service is due.
Strobe (Warning) Light when Opening or Closing
The relay output is activated whenever the gate is operating. The factory default is Off. Either output 1 or
output 2 can be changed to strobe (Warning) light.
Gate Open
The relay output is activated whenever the gate is not fully closed. The factory default is Off. Either
output 1 or output 2 can be changed to gate open.
18
Output 2
Gate & Door Controller

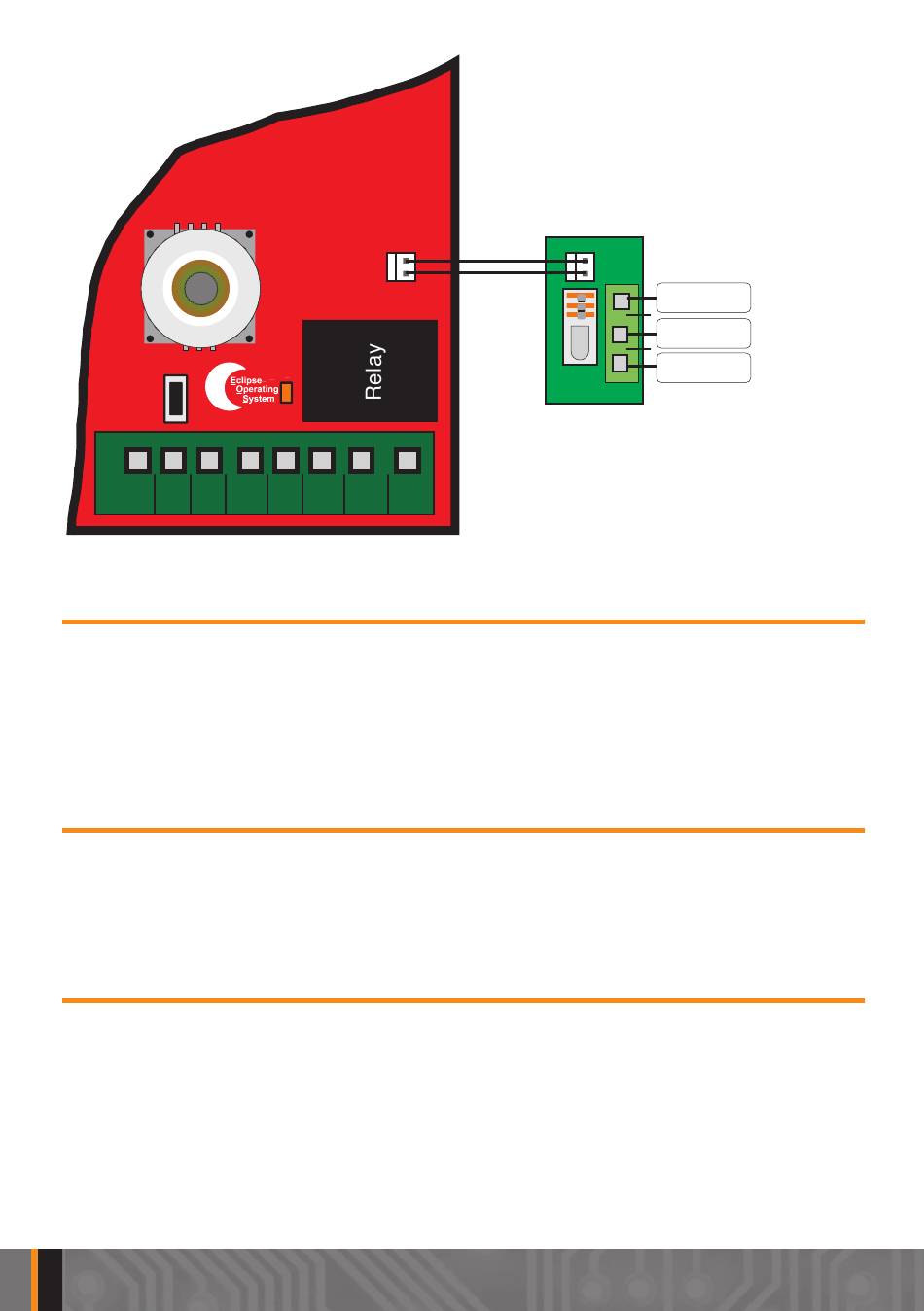

REL12-1 available
separately
Output NC
Output C
Output NO
REL12-1
with Eclipse
Operating System (EOS)
®
