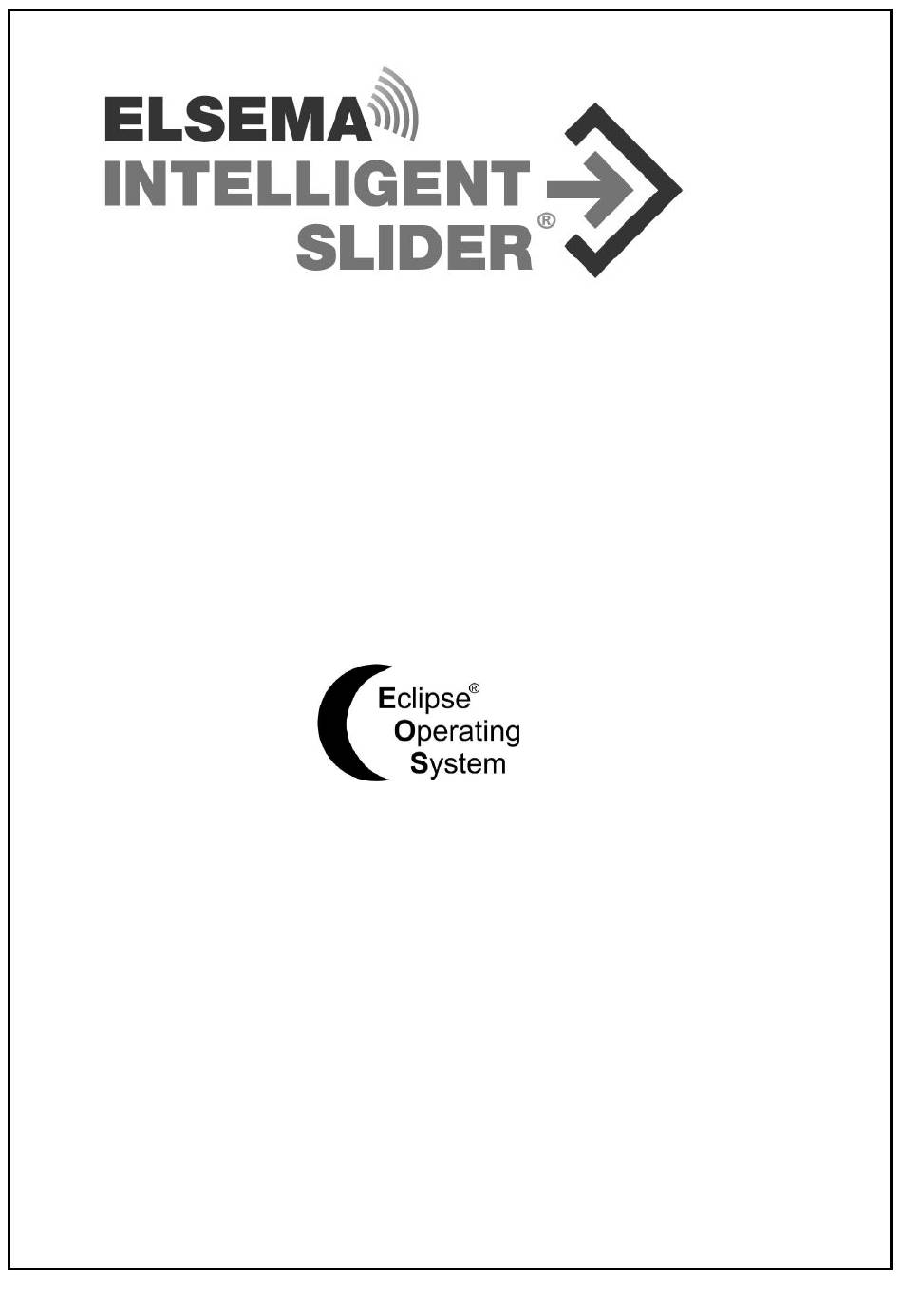

- Page 1 HIGH SPEED SLIDING GATE OPENER WITH BATTERY BACK-UP : iS1500LV Model Elsema’s Eclipse Control Card ® USER MANUAL...
- Page 2 Always incorporate the appropriate Photo Electric Cells, Safety Bump Strip, Induction Loops and other safety devices to protect both equipment and personnel. Elsema Pty Ltd recommends a Photoelectric Beam to be installed and operational when any of the Auto Close options are used.
- Page 3 Wiring Requirements • Single phase 240v 10A non-earth leakage protected power supply to where operator is mounted. • Extra Low Voltage cables from operator for access control. (Shielded cable if over 8m runs). Installation Details After reading the previous sections in this manual, and having checked for suitable installation, proceed as follows:- Electrical Cabling •...
- Page 4 Plan View Layout / Conduit Position Quick Start Instructions 1. Place operator in correct position (Pinion wheel to be parallel to the gate and stepped out to allow for width of rack once it is mounted onto the gate frame). Mark out fixings and fix operator to the concrete pad.
- Page 5 Limit Switch Adjustment The limit sensor has a + marking indicating the centre of the sensor. Adjust the sensor so that the + marking is in the centre of the magnet on the gear rack. The 2 x limit magnets should have different marking on them. One should have a and the other should have a .
- Page 6 Once the limit switches are adjusted turn the power on to the MCSv2 control card and follow on screen instructions to profile the gate. The MCSv2 control card has been specially configured to be used with iS motor kit. For replacements please contact Elsema PTY. Control Inputs Push button : N/O input acts as a OSC (open, stop, close) input.
- Page 7 Manual Release Instructions Place key in door lock, turn clockwise till released and pull door open Turn knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. To re-engage the clutch, move the gate by hand into approx.
- Page 8 Maintenance Details WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and equipment Recommended maintenance to be performed on the operator and gate are as follows:- Operator performs over 150 cycles a day each month Operator performs between 100-150 cycles a day every 2 month Operator performs between 50-99 cycles a day...
