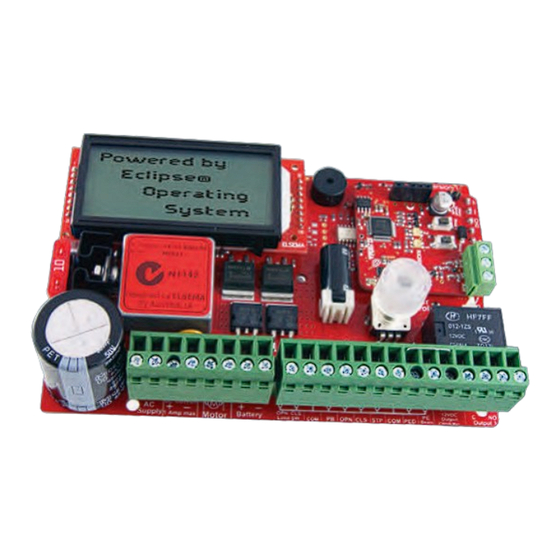

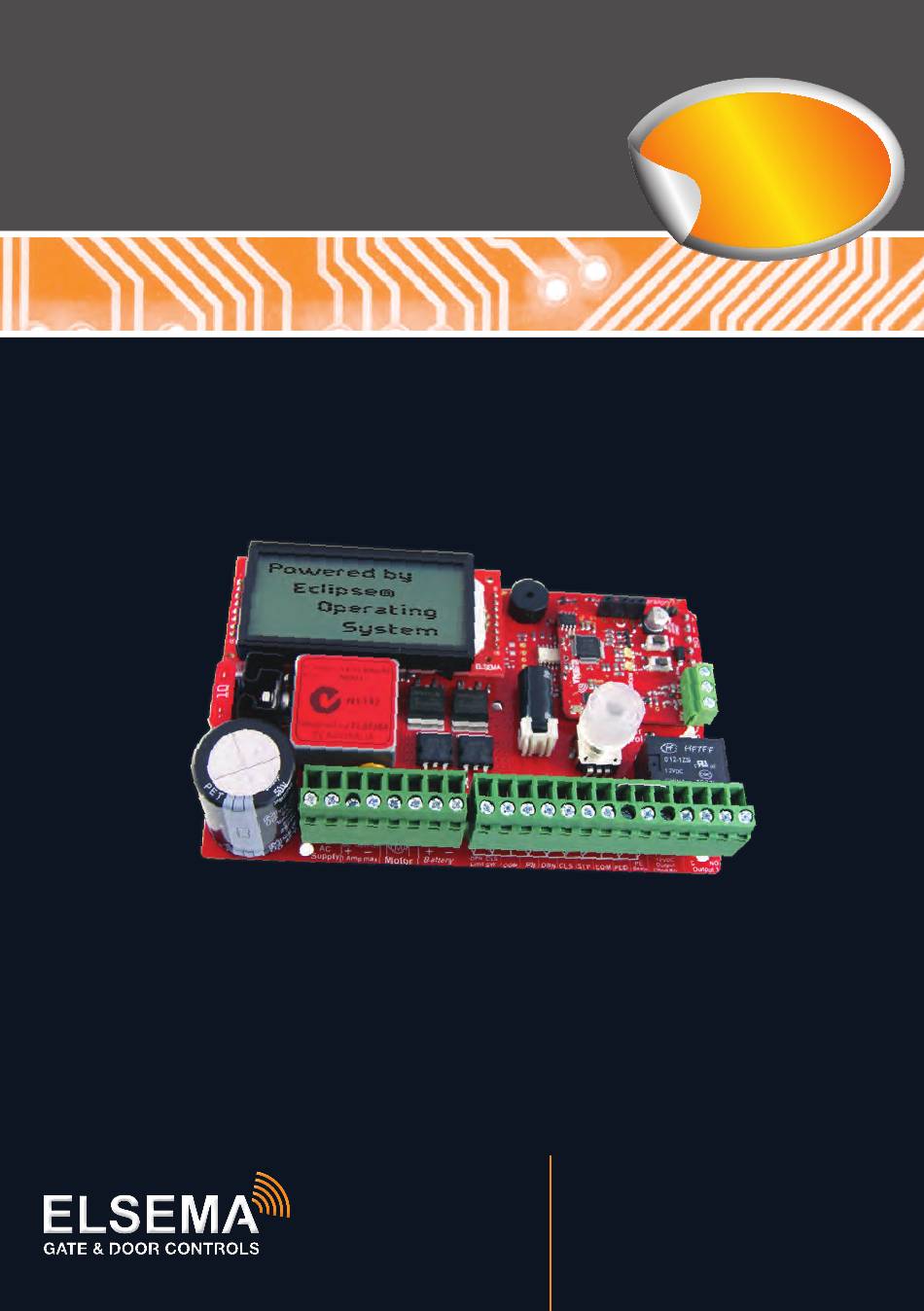

- Page 1 4th Edition Eclipse Motor Controller Single Gate ® with Eclipse Operating System ® (EOS) MCS : Motor Controller Single Setup and Technical Information Includes latest Intelligent Technology www.elsema.com...
- Page 2 Elsema Pty Ltd shall not be liable for any injury, damage, cost, expense or any claim whatsoever to any person or property which may result from improper use or installation of this product.
-
Page 3: Table Of Contents
Menu 9 – Motor Speed and Slow Speed Area ..............24 Menu 10 – Anti-Jam and Braking ..................25 Menu 11 – i-Learning ......................26 Menu 12 – Password .......................26 Menu 13 – Operational Records..................26 Menu 14 – Tools ......................27 Accessories ........................28 PentaFOB Programming Instructions ................30 ® www.elsema.com... -
Page 4: Features
Elsema’s easy options to add remote controls or any type of Photoelectric Beams makes for a very user friendly approach, while avoiding the lockdown approach to accessories. -
Page 5: Part Number
MPPT charger & 12 Volt 15.0Ah backup battery 40 Watt solar panel. MCS is suitable for motors up to 120 Watts. Above 120 Watts use MCSv2. MCS & MCSv2 control card can be used to control automatic gates, doors, boom gates and automated windows or louvres. www.elsema.com... -
Page 6: Menu Structure
Menu Structure Press Master Control for 2 seconds to enter the menu structure MAIN Auto Close Auto Close Time AC Time with PE Trig SCREEN Pedestrian Access PA Travel Time PA AC Time Input Functions PE Polarity Limit Sw Polarity PE Beam Stops Motor on Close Cycle PE Safety Beam Function... - Page 7 Reset Max Current Records EXIT 14.7 14.6 14.3 14.4 14.5 Fuse Type : 10 or 15 Amps Travel Timer for Slip Motors Solar Gate Mode Reset Factory Default Test Inputs 14.8 14.10 14.9 Slow Speed Ramp Down Exit Magnetic Limit Switch www.elsema.com...
-
Page 8: Connection Diagram
MCS Connection Diagram 90mm AC Supply AC Supply AC Supply AC Supply DC Output + AC Supply DC Output - AC Supply Motor AC Supply Motor AC Supply Battery + AC Supply Battery - AC Supply Open Limit Close Limit Common Push Button Open... -
Page 9: Supply And Motor Inputs
The diagram below shows the supply, motors, and inputs available and the factory default setting for each input. Master Control AC Supply : 24/12 Volts AC Model : MCS Designed by ELSEMA Open Close Stop IN AUSTRALIA ELSEMA 12 or 24 Volts AC Supply Normally Closed... -
Page 10: Limit Switches
Diode* Diode* * 6 Amps, 50V or better diode Elsema : Diode FR604 By default the limit switch inputs on the control card are normally closed (NC). This can be changed to normally open (NO) during the setup steps. Gate & Door Controller... -
Page 11: Setup I-Learning Steps
4. Buzzer will indicate learning was successful. If there was no buzzer check all electrical wiring including the power supply then go back to step 1. 5. If you hear the buzzer after the i-Learn, the gate or door is ready for use. www.elsema.com... -
Page 12: Menu 1 - Auto Close
Auto Close and several special Auto Close features each one having its own countdown timers. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 13: Menu 2 - Pedestrian Access Features
There are several types of Pedestrian Access modes. Pedestrian Access opens the gate for a short time to allow someone to walk through the gate but does not allow access to a vehicle. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 14: Menu 3 - Input Functions
2.1 Pedestrian Access Travel Time This sets the time the gate opens when a Pedestrian Access input is activated. 2.2 Pedestrian Access Auto Close Time This sets the countdown timer for automatically closing the gate when a Pedestrian Access input is activated. -
Page 15: Menu 4 - Photoelectric Beam
The factory default for the PE beam input is “normally closed” but this can be changed to normally open in Menu 3.1. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 16: Menu 5 - Relay Output Functions
Menu 5 – Output Functions The control card has two outputs, Output 1 and Output 2. The user can change the function of these outputs to lock / brake, courtesy light, service call, strobe (Warning) light or gate open (gate not fully closed) indicator. - Page 17 The factory default for the courtesy light is on output 2. Output 2 is an open collector output. This output is used to switch an external relay such as Elsema’s REL12-1 which can be purchased separately. See diagram on the next page.
- Page 18 Either output 1 or output 2 can be changed to service call indicator. This will trigger the output when the software service counter is reached. Used to alert installers or owners when the gate is to be serviced. Using Elsema’s GSM receiver allows installers or owners to get a SMS message and a call when the service is due.
-
Page 19: Menu 6 - Relay Output Modes Relay Output Modes
Factory This sets the time the output is activated in the default is Off. close direction. Factory default is off. Setting it to Hold means the output is activated for the total travel time in the close direction. www.elsema.com... - Page 20 Menu 6.2 – Courtesy Light Output Mode The relay output in the courtesy mode can be adjusted from 30 to 300 seconds. This sets the time the courtesy light is activated. Factory default is 60 seconds. Factory Menu No. Courtesy Light Mode Adjustable Default 6.2.1...
- Page 21 Also the control card outputs can be configured to be activated if the number of cycles is completed. Connecting Elsema’s GSM receiver to the output allows owners to get a phone call & SMS message when the service is due.
-
Page 22: Menu 7 - Special Features
Menu 7 – Special Features The control card has many special features that can all be customised to your specific application. Menu No. Special Features Factory Default Adjustable Remote Control Open Only Off / On Holiday Mode Off / On Energy Saving Mode Off / On Automatic Stop &... -
Page 23: Menu 8 - Motor Obstruction
For high margin settings, the supply transformer should be large enough to supply the high margin current. If the gate hits an object on closing it will automatically stop and then re-open. If the gate hits an object on opening it will automatically stop. www.elsema.com... -
Page 24: Menu 9 - Motor Speed And Slow Speed Area
Menu 9 – Motor Speed, Slow Speed Area and Reverse Time Motor Speed, Slow Speed Factory Menu No. Adjustable Area and Reverse Time Default Open Speed 50% to 125% Close Speed 50% to 125% Open and Close Slow Speed 25% to 65% Open Slow Speed Area 1 to 12 Close Slow Speed Area... -
Page 25: Menu 10 - Anti-Jam And Braking
After an obstruction has occurred in the opening direction, the gate will either stop, reverse for 2 seconds or reverse fully. 10.5 Closing Direction : Gate Movement after Obstruction After an obstruction has occurred in the close direction, the gate will either stop, reverse for 2 seconds or reverse fully. www.elsema.com... -
Page 26: Menu 11 - I-Learning
This will allow the user to enter a password to prevent unauthorised users from entering the control card settings. User must remember the password. The only way to reset a lost password is to send the control card back to Elsema. To delete a password select Menu 12.2 and press Master Control. -
Page 27: Menu 14 - Tools
14.8 Slow Speed Ramp Down Time This allows you to change the time it takes the gate to change its speed from fast to slow. 14.9 Magnetic Limit Switch Only enable this option when using Elsema’s magnetic Limit Switch. www.elsema.com... -
Page 28: Accessories
Solar Panels Pre-made Inductive Loops & Loop Detectors Elsema has a range of Saw-Cut and Direct Burial loops. They are pre-formed with recommended loop sizes for commercial or domestic applications and makes installation quick and easy. - Page 29 The receiver can also be password protected from unauthorised access. Repeater/ booster for PentaFOB remotes ® Flashing Lights Elsema has several flashing lights to act as a warning when the gate or doors is in operation. PentaFOB Programmer ® Flashing Lights...
-
Page 30: Pentafob ® Programming Instructions
PentaFOB Programming Instructions ® Coding the PentaFOB remotes and receivers can be done in 2 different ways. ® 1. Using the Receiver 2. Using another Remote Control Coding using the Receiver 1. Press and hold the program button on the receiver 2. - Page 31 www.elsema.com...
- Page 32 Keyring remote controls Sliding gate Swinging gate motor kits motor kits Sliding gate Swinging gate motor kits motor kits Motor control cards & Kits ELSEMA PTY LTD 31 Tarlington Place Smithfield NSW 2164 Australia 02 9609 4668 www.elsema.com...
