Summary of Contents for Elsema iS250

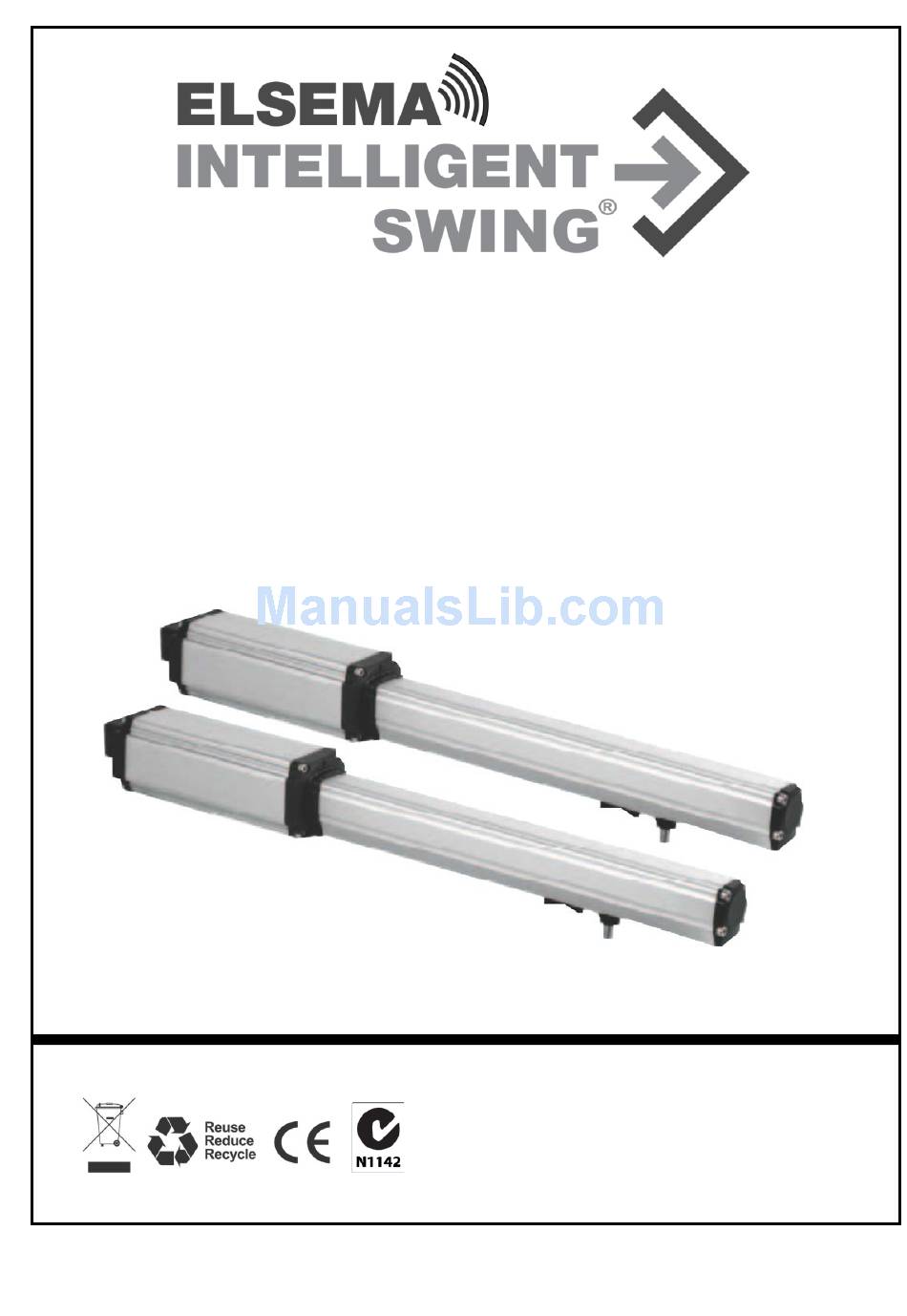

- Page 1 / iS250D / iS250Solar SWING GATE OPENER USER MANUAL iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
-
Page 2: Table Of Contents
C. REAR BRACKET INSTALLATION ............P.4 D. FRONT BRACKET INSTALLATION .............P.5 E. CHECK BRACKET ................P.5 F. MOTOR FIXING ..................P.6 G. EMERGENCY RELEASE ..............P.7 H. MECHANICAL STOPPER ADJUSTMENT .........P.7 TECHNICAL FEATURES A. TECHNICAL FEATURES ..............P.8 B. DIMENSION ..................P.8 MAINTENANCE ..................P.8 iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL... -
Page 3: General Safety Precaution
11) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 4: Installation
1.2 STANDARD INSTALLATION A. STANDARD INSTALLATION iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL... - Page 5 6) There should be no friction between the two gate leafs. 7) There should be no friction with the ground while moving the gates. 8) Check that the gate structure is suitable to install automatic gate motors. Graph 1 iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
- Page 6 Make sure the rear brackets straight edge is facing each other when mounted. • If the 2 gate leafs have different speeds, check the dimensions. They should be same for both the gate leafs. for gate 1 should be the same as for gate 2 iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
- Page 7 For proper operation, the front bracket should be fixed so the motor has the correct angle. Use Table 1 to calculate the location of the front bracket. Also note that the front bracket is 50mm lower than the rear bracket. Table 1 A (mm) E (mm) iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
-
Page 8: Check Bracket
You should now be able to move the gate manually. Slowly fully open and close the gate manually. If the gate fully opens and closes the installation of the brackets was done correctly. Make sure the iS250 is mounted in a horizontal position, especially in these positions: 1) Gate in “CLOSE” position 2) Gate in “OPEN”... -
Page 9: Emergency Release
* The position of the front and rear mechanical stopper indicates the fully Open/Close positions of the gate. I. ELECTRICAL CONNECTION After successful motor installation, refer to the user manual of the control card for automatic operation setup. iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL... -
Page 10: Technical Features
Disconnect the power supply Clean and lubricate the screws, the pins and the hinge with grease. Check the fastening points are properly tightened. Check and make sure that the wire connections are in good condition. iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL... - Page 11 Connect the power supply (1) Check the power adjustments. (2) Check the function of the manual release (3) Check the photocells or other safety device. Service History Date Maintenance Installer iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
- Page 12 Solar kits Solar panels Backup batteries Photo electric beams Magnetic locks Wireless keypads Pre formed loop Visit www.elsema.com to see our full range of Gate and Door Automation products iS250/iS250D/iS250Solar SWING GATE OPENER MANUAL...
