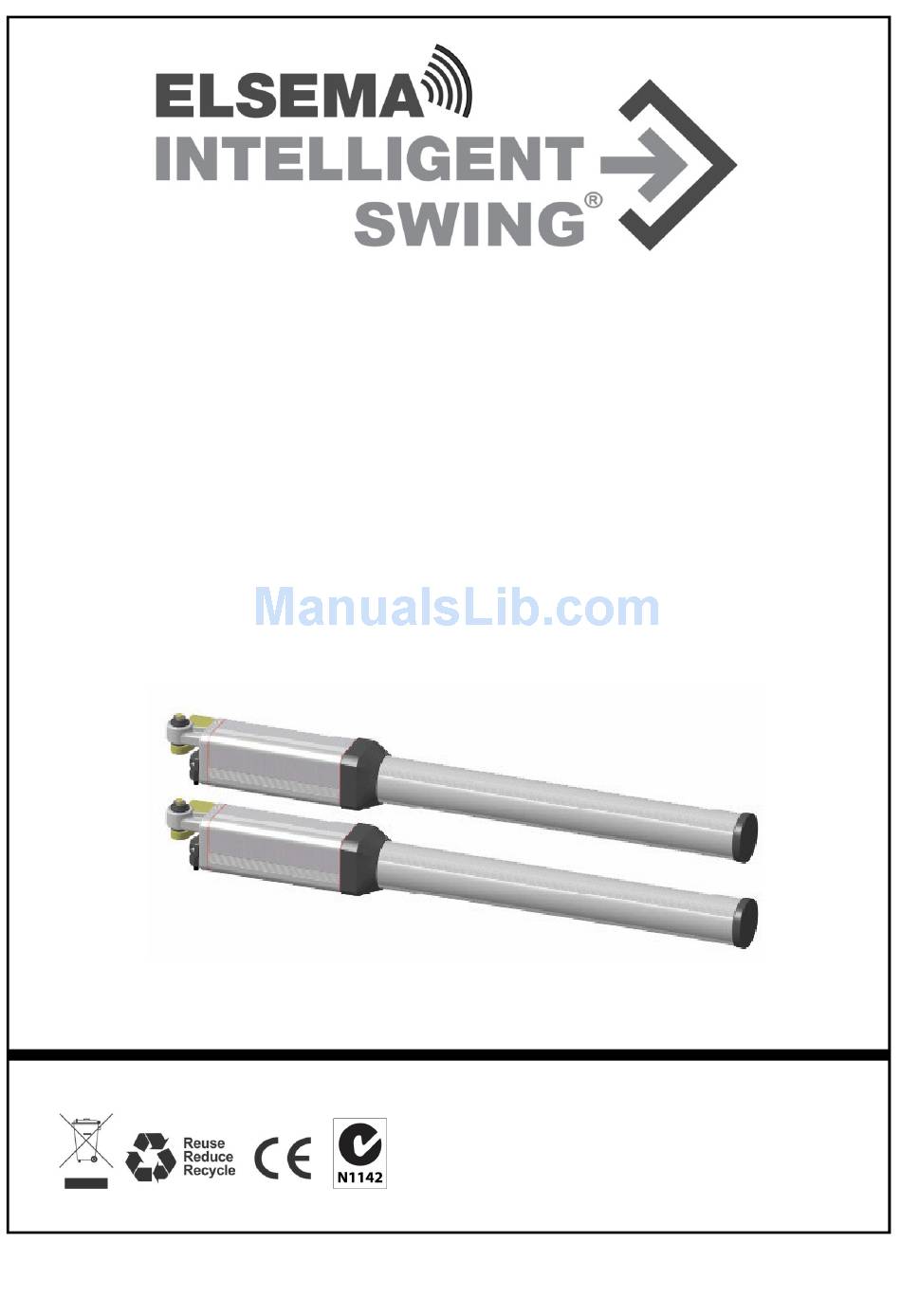

- Page 1 / iS320D HYDRAULIC SWING GATE OPENER USER MANUAL iS320/iS320D SWING GATE OPENER MANUAL...
-
Page 2: Table Of Contents
B. BRACKET MOUNTING DIMENSIONS ..........P.3 C. INSTALLATION ………………………...........P.4 D. LOCKING ACTUATOR................ P.6 E. EMERGENCY RELEASE..............P.6 F. BAC & ANTI-WIND SYSTEM..............P.7 G. TECHNICAL DATA ................P.7 H. KIT CONTENTS …………………………..……........P.8 I. DIMENSIONS …………………….……………........P.9 J. ELECTRICAL INSTALLATION ………………........P.10 MAINTENANCE ..................P.10 iS320/iS320D SWING GATE OPENER MANUAL... -
Page 3: General Safety Precaution
13) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 4: Installation
Max. 2 Metre Max. 4 Metre iS320 - 95° iS320 - 110° Light gate : 400Kg iS320 - 95° iS320 - 110° Medium gate : 600Kg iS320 - 110° Heavy gate : 800Kg Opening Inwards Opening Outwards iS320/iS320D SWING GATE OPENER MANUAL... - Page 5 In some installations it might not be possible to follow the exact dinemsions in the above table due to a number of reasons. If this is the situation, please refer to the Graph 1 below for INWARD opening, A & B dimensions. Graph 1 iS320/iS320D SWING GATE OPENER MANUAL...
-
Page 6: Installation
3) Shorten or lengthen the gate support according to the dimensions for C shown in the table on page 3. Connect the iS320 opener to the gate support, with the rod completely extended (Fig.2 Page 5) and with the swivel joint nut fully tightened (Fig.3 Page 5). Once this has been done use a spirit level (Fig.4 Page 5) to mark the position of the gate support on the gate. - Page 7 SWING GATE OPENER MANUAL...
-
Page 8: Locking Actuator
EMERGENCY RELEASE SYSTEM In an event of power failure, the iS320 can be operated manually. For manual operation, open up the cover shown in the picture and turn the valve 360° anti clockwise. Now the gate can be moved manually. To reengage the motor, turn the valve 360°... -
Page 9: Bac & Anti-Wind System
23 sec Closing Cycle 28 sec Compression 0 - 795Kg Traction 0 – 638Kg Maximum Gate Leaf Length 4 metres Operating Temperature -20° c ~ +50° c Dimension 985mm x 94mm x 88mm Weight 11 kg iS320/iS320D SWING GATE OPENER MANUAL... -
Page 10: Kit Contents
H. KIT CONTENTS iS320/iS320D SWING GATE OPENER MANUAL... -
Page 11: Dimensions
Allen key for pressure adjustment Support plate Setup nuts and bolts End cover for the arm Wire housing Stopper bracket Hinge set with nut Motor support kit Oil refill for iS330 16uF Motor start capacitor I. DIMENSIONS iS320/iS320D SWING GATE OPENER MANUAL... -
Page 12: Maintenance
Check and make sure that the wire connections are in good condition. Connect the power supply (1) Check the power adjustments. (2) Check the function of the manual release (3) Check the photocells or other safety device. iS320/iS320D SWING GATE OPENER MANUAL... - Page 13 Service History Date Maintenance Installer iS320/iS320D SWING GATE OPENER MANUAL...
- Page 14 Domestic/Industrial Sliding Gate Kits Domestic/Industrial Swing Gate Kits FOB Remotes Locking Actuator Magnetic Locks Wireless Keypads Pre formed Loop Visit www.elsema.com to see our full range of Gate and Door Automation products iS320/iS320D SWING GATE OPENER MANUAL...
