Elsema Eclipse MCS Setup Manual

Motor controller single gate
Hide thumbs Also See for Eclipse MCS:
Table of Contents

Advertisement

Quick Links

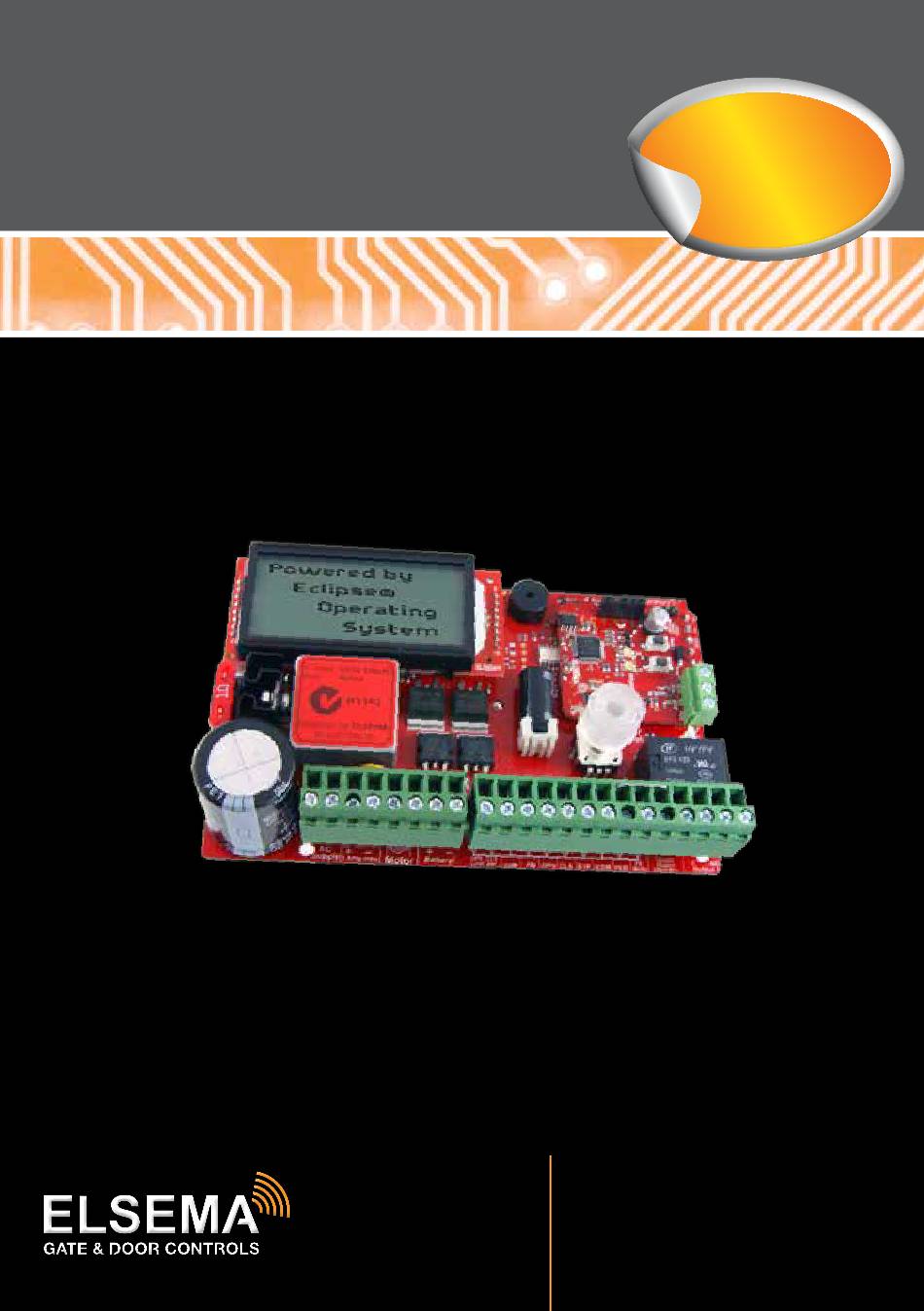

Motor Controller Single Gate
®
with Eclipse Operating System
www.elsema.com
(EOS)
MCS : Motor Controller Single Gates
Setup and Technical Information
Includes latest Intelligent Technology
3rd Edition
Eclipse
®
MCS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse MCS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elsema Eclipse MCS

  • Page 1 3rd Edition Eclipse Motor Controller Single Gate ® ® with Eclipse Operating System (EOS) MCS : Motor Controller Single Gates Setup and Technical Information Includes latest Intelligent Technology www.elsema.com...
  • Page 2 Elsema Pty Ltd shall not be liable for any injury, damage, cost, expense or any claim whatsoever to any person or property which may result from improper use or installation of this product.
  • Page 3: Table Of Contents

    - Pre-Close Strobe Light Activation ....20 Accessories ............28 Menu 6.4 – Service Call Output Mode ....21 - Battery Charger and Solar Applications ..28 - Backup Batteries ........28 - Keyring Remotes & Photoelectric Beams .29 - Strobe Lights ..........29 PentaFOB Programming Instructions ....30 ® www.elsema.com...
  • Page 4: Features

    Elsema’s easy options to add remote controls or any type of photoelectric beams makes for a very user friendly approach, while avoiding the lockdown approach to accessories.
  • Page 5: Part Number

    Solar kit for double or single gates, includes intelligent Solar kit for double or single gates, includes intelligent Solar24 Solar12 solar charger & 24 Volt 12.0Ah backup battery solar charger & 12 Volt 12.0Ah backup battery SP20* 20 Watt solar panel SP40* 40 Watt solar panel www.elsema.com...
  • Page 6: Menu Structure

    Menu Structure Press Master Control for 2 seconds to enter the menu structure MAIN Auto Close Auto Close Time AC Time with PE Trig SCREEN Pedestrian Access PA Travel Time PA AC Time Input Functions PE Polarity Limit Sw Polarity PE Beam Stops Motor on Close Cycle PE Safety Beam Function...
  • Page 7 Reset Max Current Records EXIT 14.7 14.6 14.3 14.4 14.5 Fuse Type : 10 or 15 Amps Travel Timer for Slip Motors Solar Gate Mode Reset Factory Default Test Inputs 14.8 14.10 14.9 Slow Speed Ramp Down Exit Magnetic Limit Switch www.elsema.com...
  • Page 8: Connection Diagram

    MCS Connection Diagram 90mm AC Supply AC Supply AC Supply AC Supply AC Supply DC Output + DC Output - AC Supply Motor AC Supply Motor AC Supply Battery + AC Supply Battery - AC Supply Open Limit Close Limit Common Push Button Open...
  • Page 9: Supply And Motor Inputs

    The diagram below shows the supply, motors, and inputs available and the factory default setting for each input. Master Control AC Supply : 24/12 Volts AC Model : MCS Designed by ELSEMA Open Close Stop IN AUSTRALIA ELSEMA 12 or 24 Volts AC Supply Normally Closed...
  • Page 10: Limit Switches

    See the diagrams below: Master Control AC Supply : 24/12 Volts AC Model : MCS Designed by ELSEMA IN AUSTRALIA Close Controller with limits connected Motor 1 Normally Closed...
  • Page 11: Setup I-Learning Steps

    4. Buzzer will indicate learning was successful. If there was no buzzer check all electrical wiring including the power supply then go back to step 1. 5. If you hear the buzzer the gate or door is ready for use. www.elsema.com...
  • Page 12: Menu 1 - Auto Close

    The control card has a normal auto close and several special auto close features each one having its own countdown timers. Elsema Pty Ltd recommends a photoelectric beam should be connected to the control card when any of the auto close options are used.
  • Page 13: Auto Close After Power Restored

    There are several types of Pedestrian access modes. Pedestrian access opens the gate/door for a short time to allow someone to walk through the gate/door but does not allow a vehicle access. Elsema Pty Ltd recommends a photoelectric beam should be connected to the control card when any of the auto close options are used.
  • Page 14: Menu 3 - Input Functions

    2.1 Pedestrian Access Travel Time This sets the time the gate/door opens when a pedestrian access input is activated. 2.2 Pedestrian Access Auto Close Time This sets the countdown timer for automatically closing the gate/door when a pedestrian access input is activated.
  • Page 15: Menu 4 - Photoelectric Beam

    The factory default for the PE beam input is “normally closed” but this can be changed to normally open. To change it go back to Menu 3. Elsema Pty Ltd recommends a photoelectric beam should be connected to the control card when any of the auto close options are used.
  • Page 16: Menu 5 - Relay Output Functions

    Menu 5 – Output Functions The control card has two outputs, Output 1 and Output 2. The user can change the function of these outputs to lock / brake, courtesy light, service call or strobe (Warning) light indicator. Output 1 is a relay output with common and normally open contacts. Factory default is lock / brake release function.
  • Page 17: Lock/Brake Output

    This output is used to power a courtesy light. The factory default for the courtesy light is on output 2. Output 2 is an open collector output. This output is used to switch an external relay such as Elsema’s REL12-1 which can be purchased separately. See diagram on the next page.
  • Page 18: Service Call Output

    Either output 1 or output 2 can be changed to service call indicator. This will trigger the output when the software service counter is reached. Used to alert installers or owners when the gate/door is to be serviced. Using Elsema’s G-2000 receiver allows installers or owners to get a SMS message when the service is due.
  • Page 19: Menu 6.1 - Lock/Brake Output Modes

    This sets the time the output is activated in the the motor starts in the close direction. Factory close direction. Factory default is off. Setting it default is Off. to Hold means the output is activated for the total travel time in the close direction. www.elsema.com...
  • Page 20: Menu 6.2 - Courtesy Light Output Mode

    Menu 6.2 – Courtesy Light Output Mode The relay output in the courtesy mode can be adjusted from 30 seconds to 18 hours. This sets the time the courtesy light is activated. Factory default is 1 minute. Menu No. Courtesy Light Mode Factory Adjustable Default...
  • Page 21: Menu 6.4 - Service Call Output Mode

    Also the control card outputs can be configured to be activated if the number of cycles is completed. Connecting Elsema’s G-2000 receiver to the output allows owners to get a phone call or SMS message when the service is due.
  • Page 22: Menu 7 - Special Features

    Menu 7 – Special Features The control card has many special features that can all be customised to your specific application. Menu No. Special Features Factory Adjustable Default Remote Control Open Only Off/On Holiday Mode Off/On Energy Saving Mode Off/On Automatic Stop/Open on Closing Off/On Receiver Channel 2 Options...
  • Page 23: Receiver Channel 2 Options

    For high margin settings, the supply transformer should be large enough to supply the high margin current. If the gate/door hits an object on closing it will automatically stop and then re-open. If the gate/door hits an object on opening it will automatically stop. www.elsema.com...
  • Page 24: Menu 9 - Motor Speed, Slow Speed

    Menu 9 – Motor Speed, Slow Speed Area and Reverse Time Menu No. Motor Speed, Slow Speed Factory Adjustable Area and Reverse Time Default Open Speed 50% to 125% Close Speed 50% to 125% Open and Close Slow Speed 35% to 65% Open Slow Speed Area 1 to 12 Close Slow Speed Area...
  • Page 25: Menu 10 - Anti-Jam, Electronic Braking And

    After an obstruction has occurred in the opening direction, the gate will either stop, reverse for 2 seconds or reverse fully. 10.5 Closing Direction : Gate Movement after Obstruction After an obstruction has occurred in the close direction, the gate will either stop, reverse for 2 seconds or reverse fully. www.elsema.com...
  • Page 26: Menu 11 - I-Learning

    This will allow the user to enter a password to prevent unauthorised users from entering the control card settings. User must remember the password. The only way to reset a lost password is to send the control card back to Elsema. To delete a password select Menu 12.2 and press Master Control.
  • Page 27: Menu 14 - Tools

    Lead Acid. Never connect a lithium battery when lead acid mode is selected. Always select the correct battery type. Only use Lithium-ion batteries supplied by Elsema. 14.2 Set the Supply Voltage This allows you to manually set the control card to 12 or 24 Volt supply. The control card will automatically set the correct supply voltage during setup.
  • Page 28: Accessories

    Backup Batteries Backup Batteries Elsema has backup batteries perfectly matched to the control card. The following sizes are available: Li7800, 24 Volt 7.8 AH Lithium-ion. Used on Elsema’s Axiom motor kits.
  • Page 29: Strobe Lights

    Photoelectric Beam Elsema has several types of photoelectric beams including retro-reflective and through beam with IP-66 ratings. Strobe Lights Elsema has several strobe lights to act as a warning when the gate or doors is in operation. PentaFOB Remotes ®...
  • Page 30: Pentafob ® Programming Instructions

    PentaFOB Programming Instructions ® Coding the PentaFOB remotes and receivers can be done in 2 different ways. ® 1. Using the Receiver 2. Using another Remote Control Coding using the Receiver 1. Press and hold the program button on the receiver 2.
  • Page 31 www.elsema.com...
  • Page 32 Keyring remote controls Sliding gate Swinging gate motor kits motor kits Sliding gate Swinging gate motor kits motor kits Motor control cards & Kits ELSEMA PTY LTD 31 Tarlington Place Smithfield NSW 2164 Australia 02 9609 4668 02 9725 2663 www.elsema.com...
