Summary of Contents for Elsema iS260

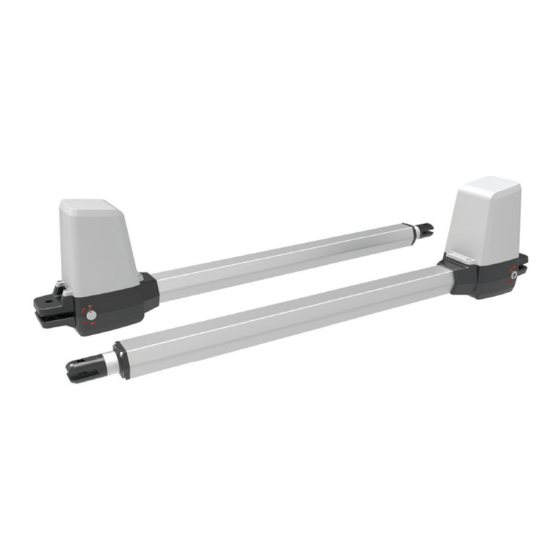

- Page 1 / iS260D SWING GATE OPENER USER MANUAL iS260/iS260D SWING GATE OPENER MANUAL ...
-
Page 2: Table Of Contents
GENERAL SAFETY PRECAUTION ............P.1 INSTALLATION A. STANDARD INSTALLATION ..............P.2 B. INSTALLATION CHECK ...............P.3 C. REAR BRACKET INSTALLATION ............P.4 D. FRONT BRACKET INSTALLATION …………........P.5 E. WIRE CONNECTION ................P.5 F. EMERGENCY RELEASE ..............P.6 TECHNICAL FEATURES A. TECHNICAL FEATURES ..............P.7 B. DIMENSION ..................P.7 MAINTENANCE ..................P.7 iS260/iS260D SWING GATE OPENER MANUAL ... -
Page 3: General Safety Precaution
11) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 4: Installation
1.2 STANDARD INSTALLATION A. STANDARD INSTALLATION 2 iS260/iS260D SWING GATE OPENER MANUAL ... - Page 5 10) The value of “B” can be calculated from the value of “A” and the leaves opening angle **Please make sure “B” and “A” are similar or the same in value that the leaf’s can be operated smoothly, also to reduce the burden of the motor. 3 iS260/iS260D SWING GATE OPENER MANUAL ...
- Page 6 For inward opening, the fully extended motor shaft will be the closed limit of the gate. Open position of the gate is adjustable by the shaft clamp. Step 2: Then fix the rear bracket to the pillar. Step 3: Fix the operator on the rear bracket. 4 iS260/iS260D SWING GATE OPENER MANUAL ...
-
Page 7: Wire Connection
1) Gate in “CLOSE” position 2) Gate in “OPEN” position 3) Gate at “45° angle” position Prior to welding the bracket on the gate leaf (if necessary), cover the gate opener to prevent damages from sparks. E. WIRE CONNECTION 5 iS260/iS260D SWING GATE OPENER MANUAL ... -
Page 8: Emergency Release
3) Pull the release key out before moving the gate manually 4) The turning direction will be reversed for right motor I. ELECTRICAL CONNECTION After successful motor installation, refer to the user manual of the control card for automatic operation setup. 6 iS260/iS260D SWING GATE OPENER MANUAL ... -
Page 9: Technical Features
Check the fastening points are properly tightened. Check and make sure that the wire connections are in good condition. Connect the power supply Check the power adjustments. Check the function of the manual release Check the photocells or other safety device. 7 iS260/iS260D SWING GATE OPENER MANUAL ... - Page 10 Service History Date Maintenance Installer 8 iS260/iS260D SWING GATE OPENER MANUAL ...
- Page 11 Solar kits Solar panels Backup batteries Photo electric beams Magnetic locks Wireless keypads Pre formed vehicle loop Visit www.elsema.com to see our full range of Gate and Door Automation products iS260/iS260D SWING GATE OPENER MANUAL ...
