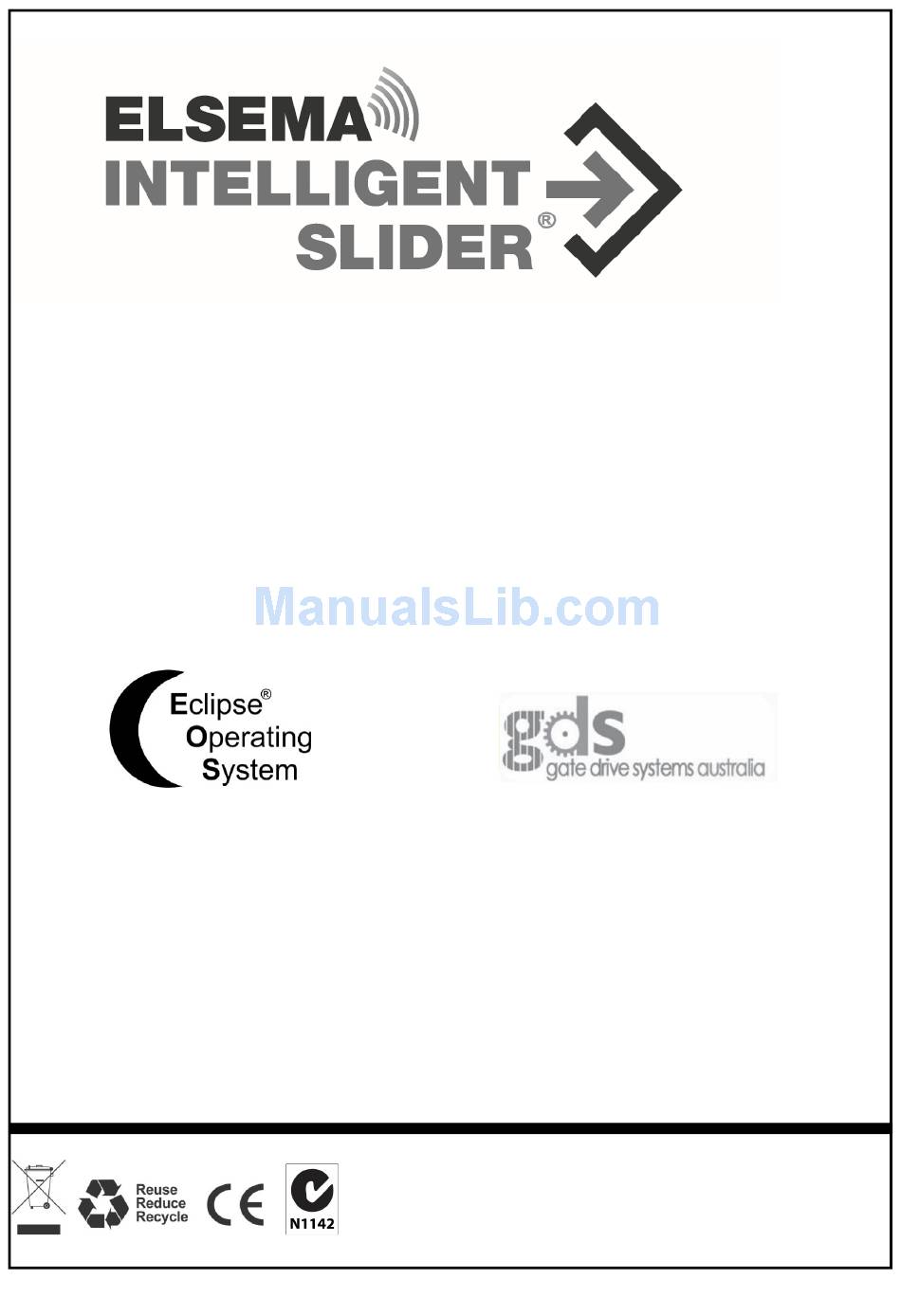

- Page 1 HIGH SPEED SLIDING GATE OPENER : iS2000 Model (3-phase 240VAC Motor) Elsema’s Eclipse ® Control Card with GDS Operator USER MANUAL...
- Page 2 Quick start instructions Place operator in correct position (Pinion wheel to be parallel to the gate and stepped out to allow for width of rack once it is mounted onto the gate frame). Mark out fixings and fix operator to the concrete pad. Fix rack to the gate frame keeping 1mm-2mm clearance between the rack teeth and Pinion wheel Once the rack is fixed move the gate and sight the...
- Page 3 AFETY RECAUTIONS WARNING! FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTALLATION INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND OR DAMAGE TO PROPERTY AND EQUIPMENT Appropriately licensed and competent personnel only should install the automation equipment. • The operators are designed specifically to open and close sliding gates or doors and should not be used for •...
-
Page 4: Mechanical Installation
IRING EQUIREMENTS • Single phase 240v 10A non-earth leakage protected power supply to where operator is mounted. *This is required because inverter VSD drive units inherently allow an earth leakage current to flow. This current is minimal but a non RCD protected circuit must be installed and the method of installation done so in accordance AS/NZS 3000:2007 to comply. - Page 5 LAN VIEW LAYOUT CONDUIT POSITION...
- Page 6 ANUAL ELEASE NSTRUCTIONS Place key in door lock, turn clockwise till released and pull door open Turn knurled knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. To re-engage the clutch, move the gate by hand Into approx.
- Page 7 5. M AI NTENANCE ETAI LS WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and equipment Recommended maintenance to be performed on the operator and gate are as follows:- Operator performs over 150 cycles a day each month Operator performs between 100-150 cycles a day every 2 month...
