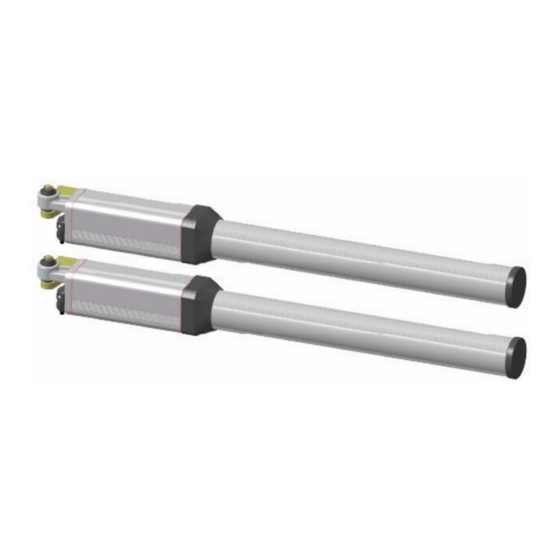

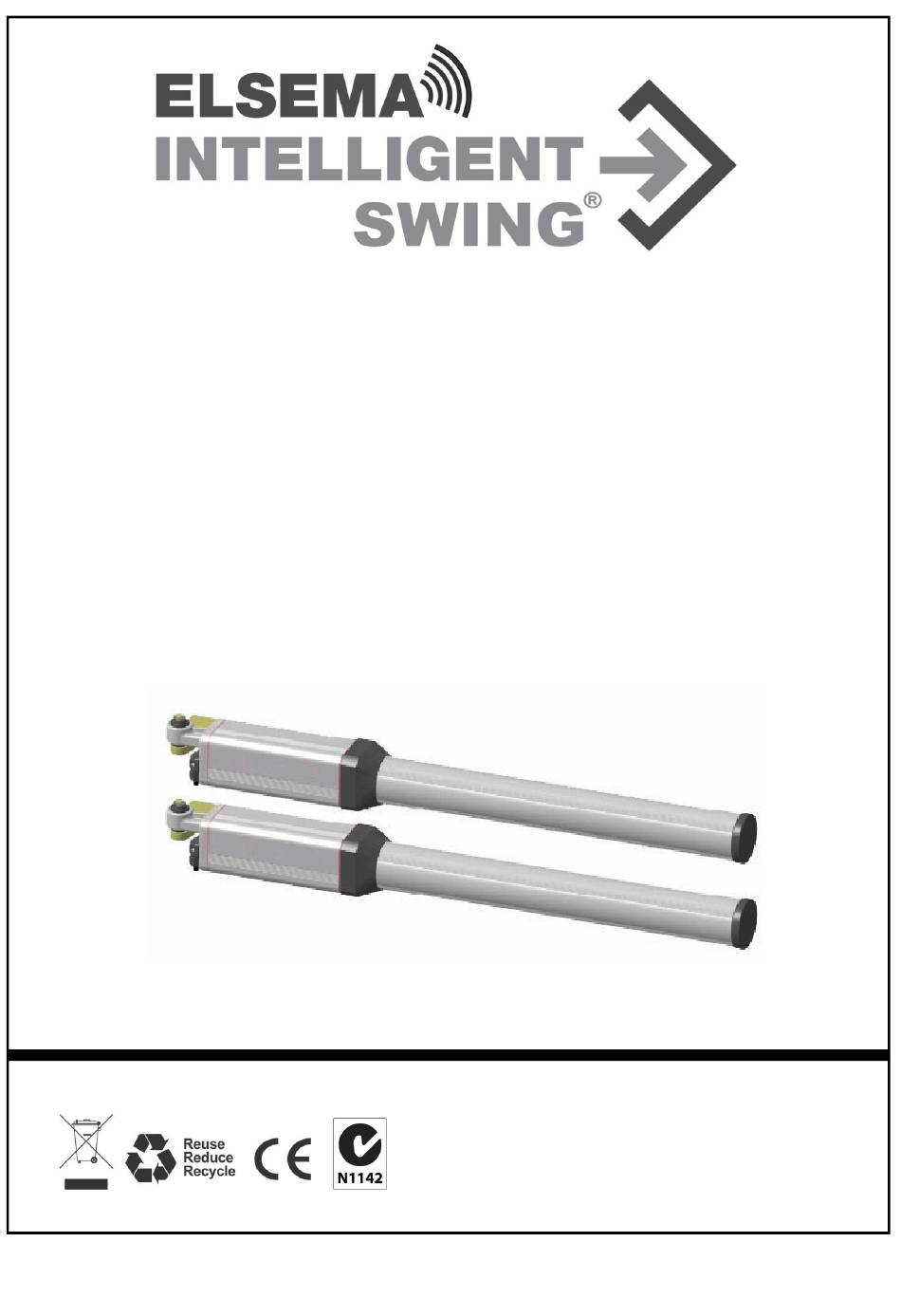

- Page 1 iS330 / iS330D HYDRAULIC SWING GATE OPENER USER MANUAL iS330/iS330D SWING GATE OPENER MANUAL ...
-
Page 2: Table Of Contents
INDEX GENERAL SAFETY PRECAUTION ............P.1 INSTALLATION A. INSTALLATION CHECK ..............P.2 B. BRACKET MOUNTING DIMENSIONS ..........P.3 C. INSTALLATION ………………………...........P.4 D. LOCKING ACTUATOR................ P.6 E. EMERGENCY RELEASE..............P.6 F. ANTI-WIND SYSTEM………..............P.7 G. TECHNICAL DATA ................P.7 H. KIT CONTENTS …………………………………….........P.8 I. DIMENSIONS ……………………………………........P.9 J. ELECTRICAL INSTALLATION..….…………........P.10 MAINTENANCE ..................P.10 ... -
Page 3: General Safety Precaution
13) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 4: Installation Check
1.2 Installation A. CHECKS BEFORE INSTALLATION Before proceeding with the installation check the following: 1) Make sure that the gate moves freely. 2) There are no obstacles in the moving gate area. 3) Hinges are properly positioned and greased. 4) There should be no friction between the two gate leafs. 5) There should be no friction with the ground while moving the gates. - Page 5 B. A & B Dimensions Table 1 Inward Opening 85° 90° 90 95° 90 100° 180 90 105° 180 90 110° 180 90 115° 180 90 120° 180 90 Outward Opening 85° 90° 180 100 95° 180 100 100° 180 100 ...
-
Page 6: Installation
C. INSTALLATION 1) Check that the motor mounting position on the gate pillar can be done with the measurements in Table 1 and Graph 1. 2) Fix the pillar support as shown in (Fig.1 Page5) shortening or extending the support according to the dimensions A and B shown in the (Table1 Page 3). - Page 7 iS330/iS330D SWING GATE OPENER MANUAL 5 ...
-
Page 8: Locking Actuator
D. INSTALLING LOCKING ACTUATOR Refer to the control card manual for selecting the outputs as locking actuator. EMERGENCY RELEASE SYSTEM In an event of power failure, the iS330 can be operated manually. For manual operation, open up the cover shown in the picture and turn the valve 360° anti clockwise. Now the gate can be moved manually. To reengage the motor, turn the valve 360°... -
Page 9: Anti-Wind System
F. ANTI-WIND SYSTEM IN FULLY OPENED & CLOSED POSITION The pressure of the gate on fully open and closed positions can be adjusted by turning the Red and Blue valves located underneath the motors. The pressure should be adjusted while the motors are not running and is independent for opening cycle and closing cycling. -
Page 10: Kit Contents
H. KIT CONTENTS 8 iS330/iS330D SWING GATE OPENER MANUAL ... -
Page 11: Dimensions
Description iS330 Plastic cover Aluminium cover Pillar motor support Gate motor support Motor cables Allen key for pressure adjustment Support plate Setup nuts and bolts End cover for the arm Wire housing Collar stopper Hinge set with nut Motor support kit Oil refill Shell Tellus T22 16uF Motor start capacitor... - Page 12 J. ELECTRICAL CONNECTION After successful motor installation, refer to the user manual of the control card for automatic operation setup. iS330/iS330D SWING GATE OPENER MANUAL ...
-
Page 13: Maintenance
1.3 MAINTENANCE Maintenance should be performed at least every six months. If it is used in high traffic area, a more regular maintenance should be performed. Disconnect the power supply Clean and lubricate the screws, the pins and the hinge with grease. Check the fastening points are properly tightened. - Page 14 Service History Date Maintenance Installer iS330/iS330D SWING GATE OPENER MANUAL ...
- Page 15 Domestic/Industrial Sliding Gate Kits Domestic/Industrial Swing Gate Kits FOB Remotes Locking Actuator Magnetic Locks Wireless Keypads Pre formed Loop Visit www.elsema.com to see our full range of Gate and Door Automation products iS330/iS330D SWING GATE OPENER MANUAL ...
