Summary of Contents for Elsema iS300

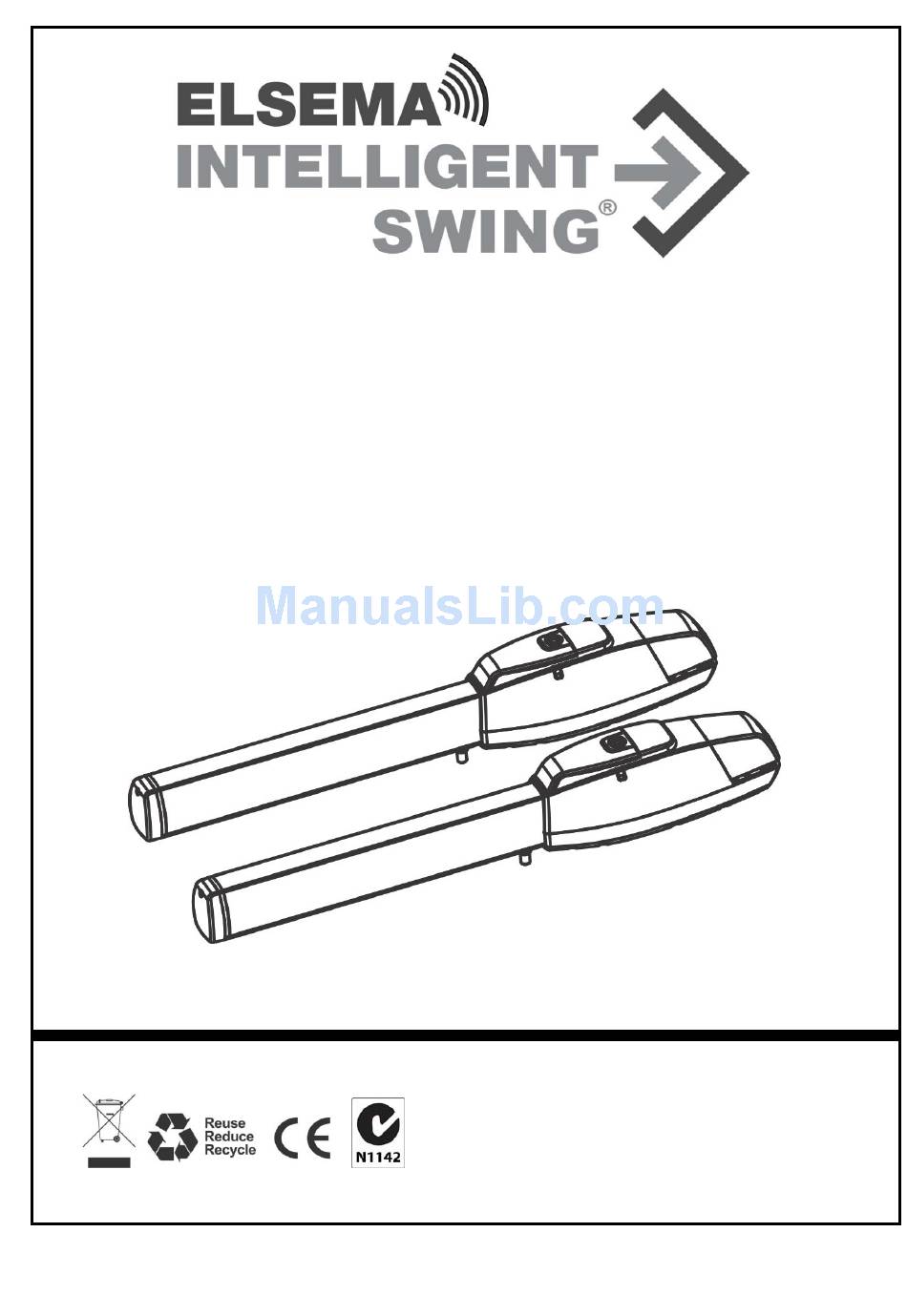

- Page 1 / iS300D / iS300Solar SWING GATE OPENER USER MANUAL iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ...
-
Page 2: Table Of Contents
C. REAR BRACKET INSTALLATION ............P.4 D. FRONT BRACKET INSTALLATION .............P.5 E. CHECK BRACKET ................P.5 F. MOTOR FIXING ..................P.6 G. WIRE CONNECTION ................P.6 H. EMERGENCY RELEASE ..............P.7 I. MECHANICAL STOPPER ADJUSTMENT .........P.7 TECHNICAL FEATURES A. TECHNICAL FEATURES ..............P.8 B. DIMENSION ..................P.8 MAINTENANCE ..................P.8 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ... -
Page 3: General Safety Precaution
11) Only operate the remote when you have the full view of the gate. ELSEMA PTY LTD shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 4: Installation
1.2 STANDARD INSTALLATION A. STANDARD INSTALLATION 2 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ... - Page 5 6) There should be no friction between the two gate leafs. 7) There should be no friction with the ground while moving the gates. 8) Check that the gate structure is suitable to install automatic gate motors. Graph 1 3 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ...
- Page 6 Move the motor in a vertical direction until the fixing zone is in a solid area of the gate leaf for the front bracket. Step 3 : Then fix the rear bracket to the pillar. Figure 1 Graph 2 4 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ...
-
Page 7: Check Bracket
5. Limit the difference between to less than 40 mm. Higher difference will vary the gate opening and closing speed. must always be greater than when the gate leaf is in the closed position 5 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ... -
Page 8: Motor Fixing
Attach the front bracket to the drive unit with the nut provided as shown in no.2. Make sure the iS300 is mounted in a horizontal position, especially in these positions: 1) Gate in “CLOSE” position 2) Gate in “OPEN”... -
Page 9: Emergency Release
* The position of the front and rear mechanical stopper indicates the fully Open/Close positions of the gate. J. ELECTRICAL CONNECTION After successful motor installation, refer to the user manual of the control card for automatic operation setup. 7 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ... -
Page 10: Technical Features
Check the fastening points are properly tightened. Check and make sure that the wire connections are in good condition. Connect the power supply Check the power adjustments. Check the function of the manual release Check the photocells or other safety device. 8 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ... - Page 11 Service History Date Maintenance Installer 9 iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ...
- Page 12 Solar kits Solar panels Backup batteries Photo electric beams Magnetic locks Wireless keypads Pre formed loop Visit www.elsema.com to see our full range of Gate and Door Automation products iS300/iS300D/iS300Solar SWING GATE OPENER MANUAL ...
