Limit Switches

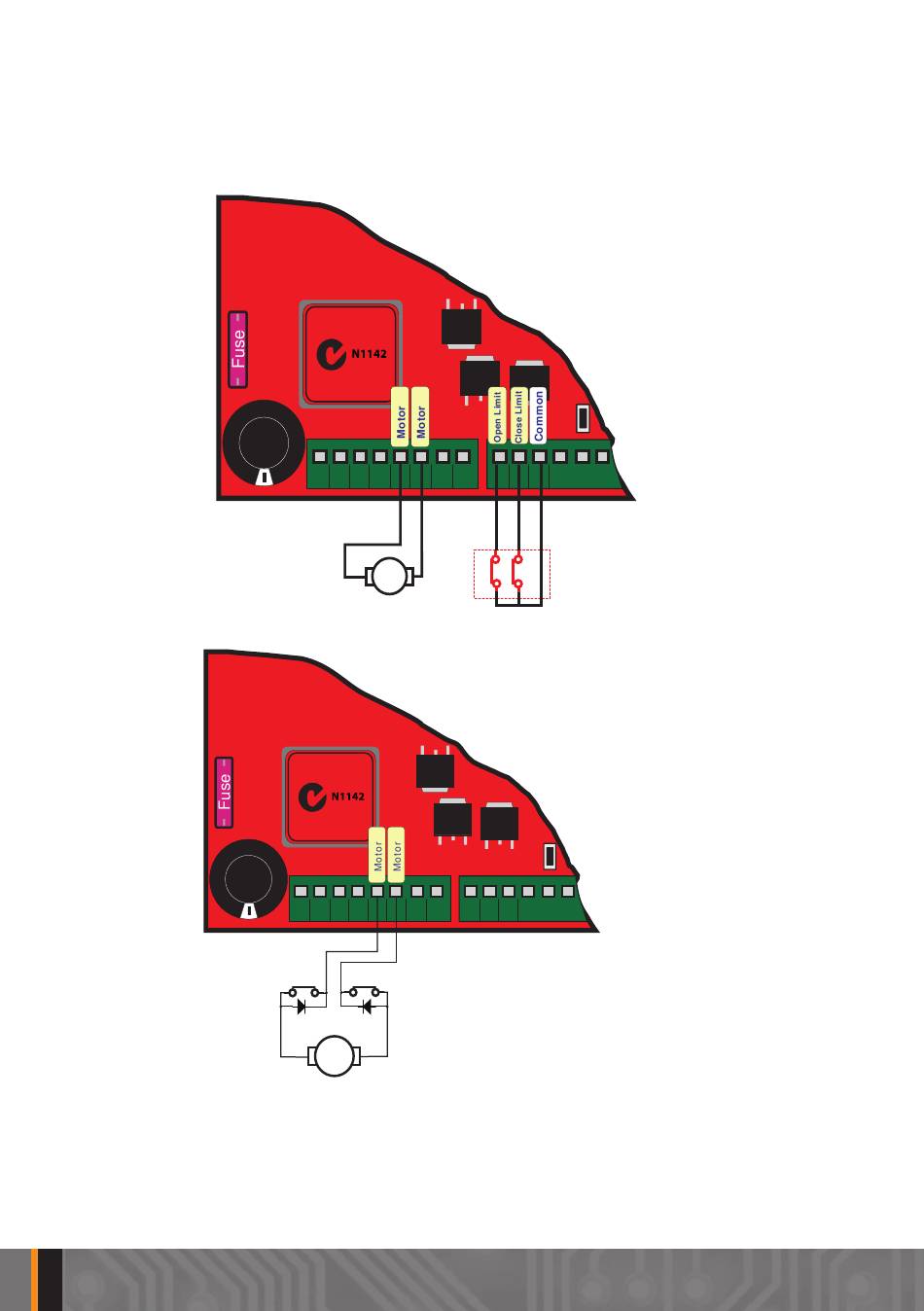

If you are using limit switches make sure they are connected properly. The control card can operate
with either the limit switches connected directly to the cards terminal blocks or in series with the
motor. See the diagrams below:
By default the limit switch inputs on the control card are normally closed (NC).
This can be changed to normally open (NO) during the setup steps.
10
AC Supply : 24/12 Volts AC
Model : MCS
Designed by ELSEMA
IN AUSTRALIA
M
Motor 1
AC Supply : 24/12 Volts AC
Model : MCS
Designed by ELSEMA
IN AUSTRALIA
Open Close
Limit Limit
Diode* Diode*
* 6 Amps, 50V or better diode
Elsema : Diode FR604
M
Gate & Door Controller
Master
Control
Close
Normally Closed
User can change
Master
Control
Close
with Eclipse
Controller with
limits connected
Controller with limits
in series with motor
Operating System (EOS)
®
