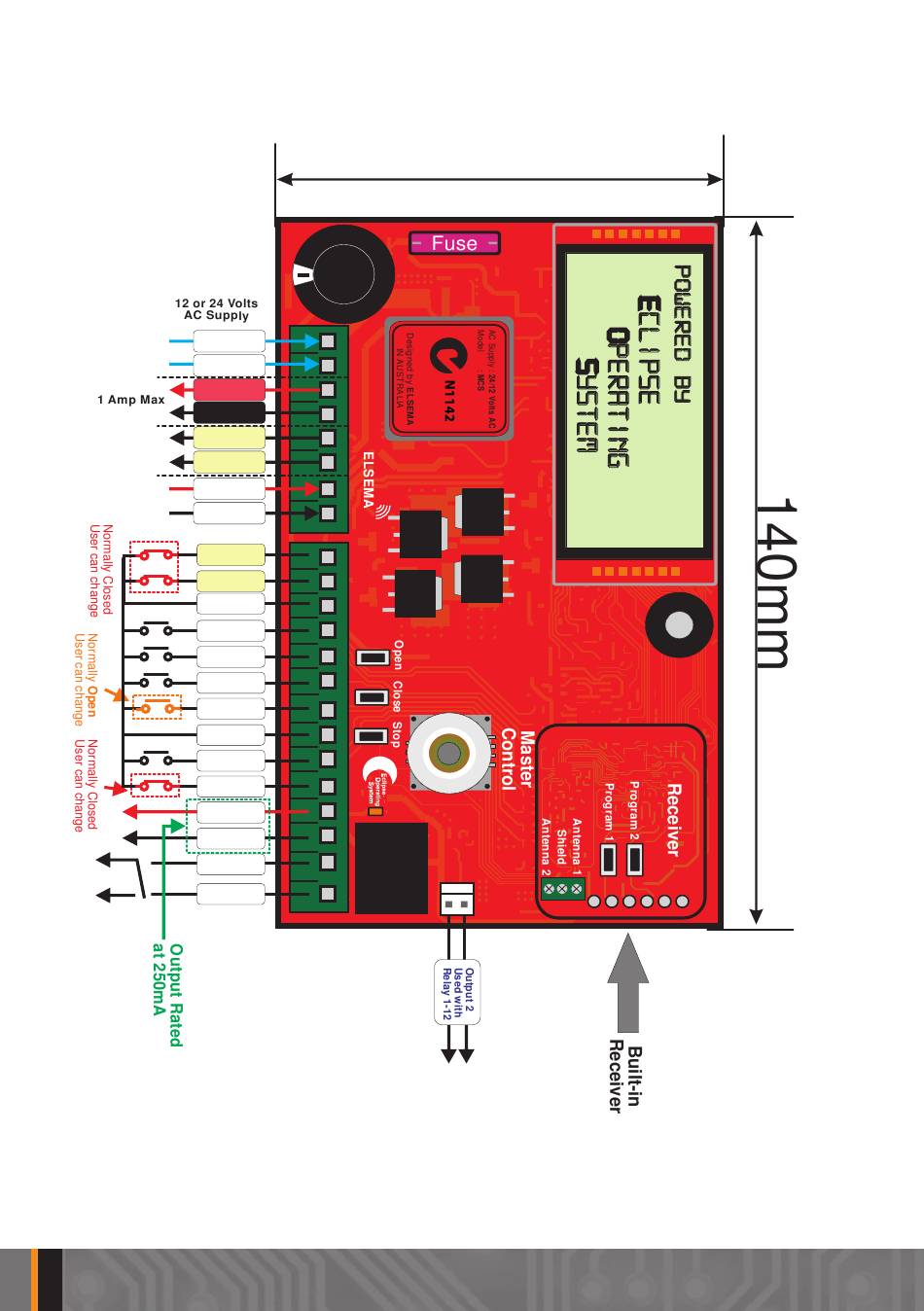

MCS Connection Diagram
AC Supply
AC Supply
AC Supply
AC Supply
DC Output +
AC Supply
DC Output -
AC Supply
Motor
AC Supply
Motor
AC Supply
Battery +
AC Supply
Battery -
AC Supply
Open Limit
Close Limit
Common
Push Button
Open
Close
Stop
Common
PED Access
Photo Beam
+ 12 VDC
- 12 VDC
Output 1 C
Output 1 NO
8
90mm
Relay
Gate & Door Controller
with Eclipse
Operating System (EOS)
®
