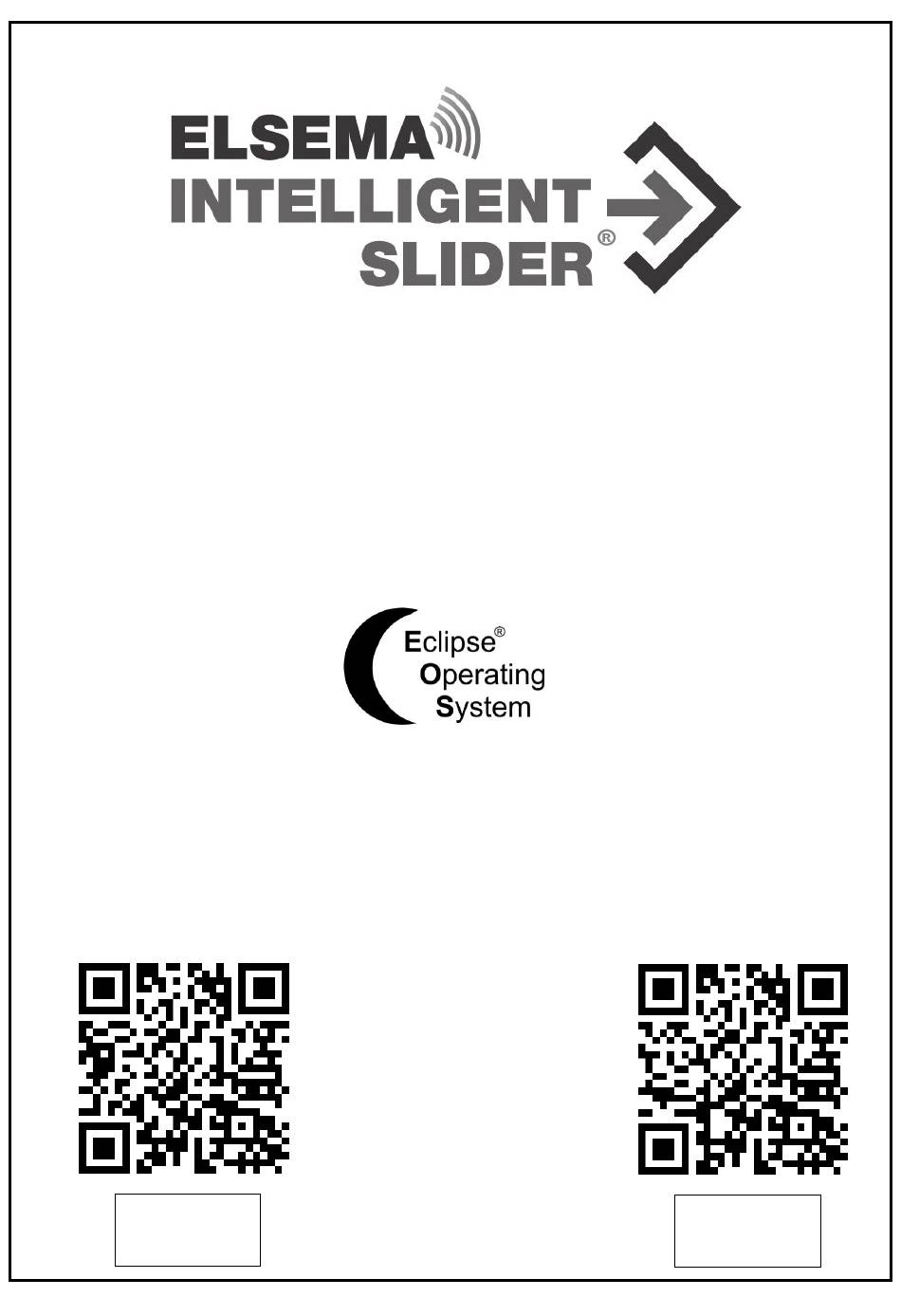

- Page 1 HIGH SPEED SLIDING GATE OPENER : iS2000/iS3000 Model Elsema’s Eclipse Control Card ® USER MANUAL Scan the QR code for more details iS2000 iS3000...
- Page 2 Safety Instructions Save these instructions for future reference. WARNING! FAILURE TO FOLLOW THESE SAFETY AND INSTALLATION INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND OR DAMAGE TO PROPERTY AND EQUIPMENT • Appropriately licensed and competent personnel only should install the automation equipment. •...
- Page 3 Technical Features iS2000 iS3000 Motor Voltage 240 Volts AC motor 240 Volts AC motor Max Absorbed Power 750 Watts 1100 Watts Power Supply 240 Volts AC 240 Volts AC Nominal Input Current 10 Amps 10 Amps Motor Speed 633 mm/sec...
- Page 4 Mechanical Installation • Ensure gate rolls easily and has been installed in a manner where there is no excessive friction or binding occurring. • A concrete base approximately 600mm long x 300 wide x 300mm deep should be laid where the gate operator is to be located.
- Page 5 Plan View Layout / Conduit Position...
- Page 6 4. Ensure stops are installed on the gate for the fully closed and fully open positions. Connect Photo Electric Beams, Safety Bump Strip and all other safety devices as required. Limit Switch Adjustment Elsema’s Industrial motor kits are equipped with dual limit sensors. The 1 limit slows the gate and the 2 limit stops the gate.
- Page 7 The limit sensor has a + marking indicating the centre of the sensor. Adjust the sensor so that the + marking is the centre of the magnet on the gear rack. The 2 x limit magnets should have different marking on them. One should have a and the other should have a .
- Page 8 Once the limit switches are adjusted turn the power on to the MCiS control card and follow on screen instructions to profile the gate. The MCiS control card has been specially configured to be used with iS motor kit. For replacements please contact Elsema. Scan the below QR code for control card instructions.
- Page 9 Manual Release Instructions Place key in door lock, turn clockwise till released and pull door open Turn knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. To re-engage the clutch, move the gate by hand into approx.
- Page 10 Maintenance Details WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and equipment. If the product is not used and maintained in accordance with instructions or recommendations listed in this User Manual, the warranty is negated. Recommended maintenance to be performed on the operator and gate are as follows:- Operator performs over 150 cycles a day every 2 month...
