3700 Series Flat Panel Industrial PC

Custom Logo

You have the option to place a custom label on your unit. Refer to Figure 2-5 for
the dimensions and recommended requirements for a customized label. Once a
customized label is procured, place the new label over the "Pro-face /Xycom"
label.
0.81 [20.57]
NOTE: All dimensions are in inches [mm]
Recommended material: 0.007 [0.176] thick polyester with 3M #468
adhesive on far side.

Creating Custom Keypad Inserts

You can customize your keypad with keypad inserts to match the function keys
that you program. Refer to Figure 2-6 and Figure 2-7 for insert dimensions for the
3712KPM(T). Refer to Figure 2-8 and Figure 2-9 for insert dimensions for the
3715KPM(T). Refer to Figure 2-10 for a keypad insert installation diagram.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2.25 [57.15]

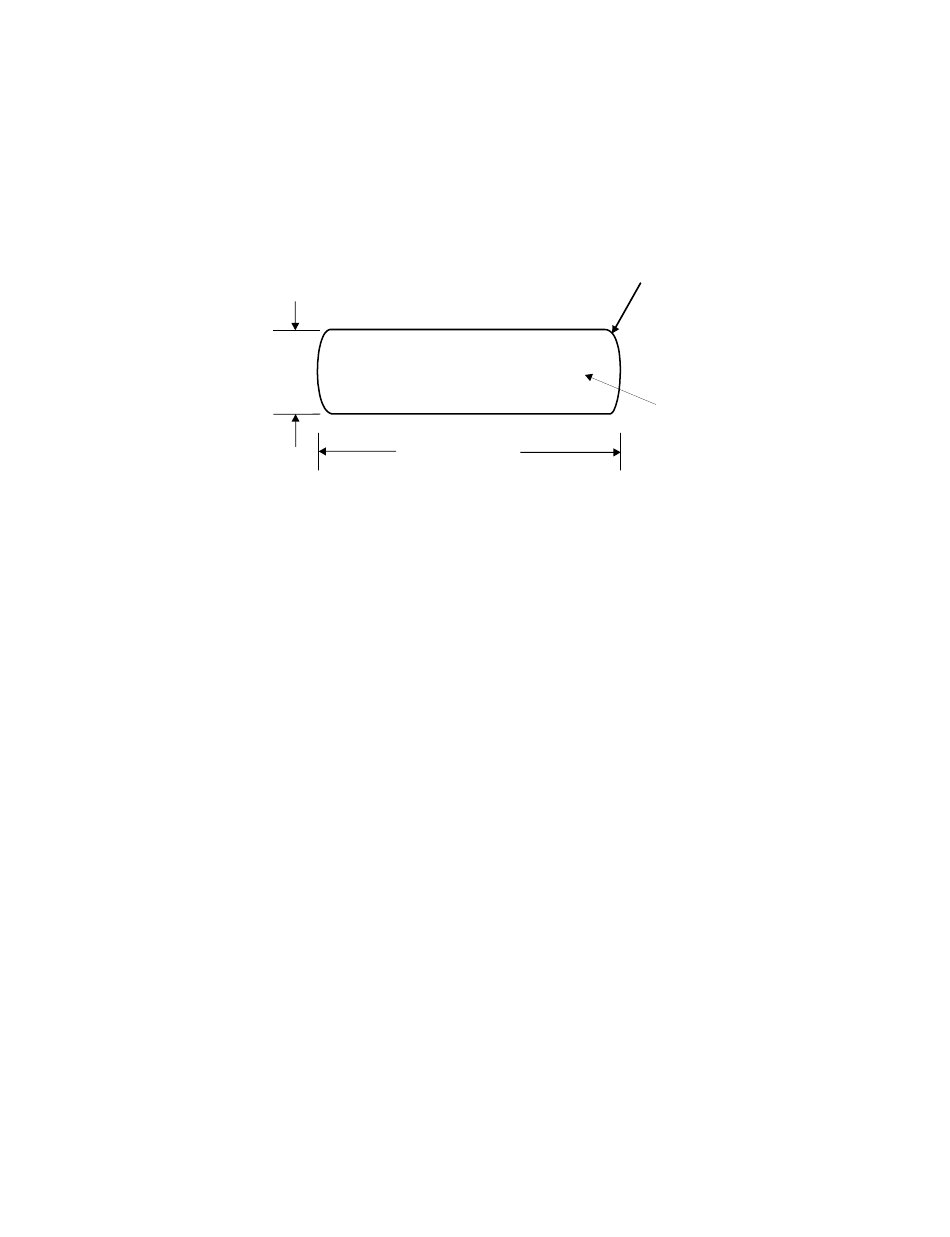

Figure 2-5. Logo Label Dimensions
23
Chapter 2 – Installation
0.06 [1.52]
(4 Places)
Your Logo On
Entire Surface
143311 (H)
