Mounting the Device

The RUGGEDCOM RS950G is designed for maximum mounting and display flexibility.
It can be equipped with connectors that allow it to be installed in a 35 mm (1.4 in)
DIN rail or directly on a panel.
Note
For detailed dimensions of the device with either DIN rail or panel hardware installed,
refer to "Dimension Drawings" (Page 25).
2.3.1

Mounting the Device on a DIN Rail

For DIN rail installations, the RUGGEDCOM RS950G can be ordered with a DIN rail
mounting bracket pre-installed on the rear of the chassis. The bracket allow the
device to be slid onto a standard 35 mm (1.4 in) DIN rail.
DIN rail mounting is not recommended for constant vibration environments.
To mount the device to a DIN rail, do the following:
1.
RUGGEDCOM RS950G
Equipment Manual, 10/2023, C79000-G8976-1037-08
NOTICE

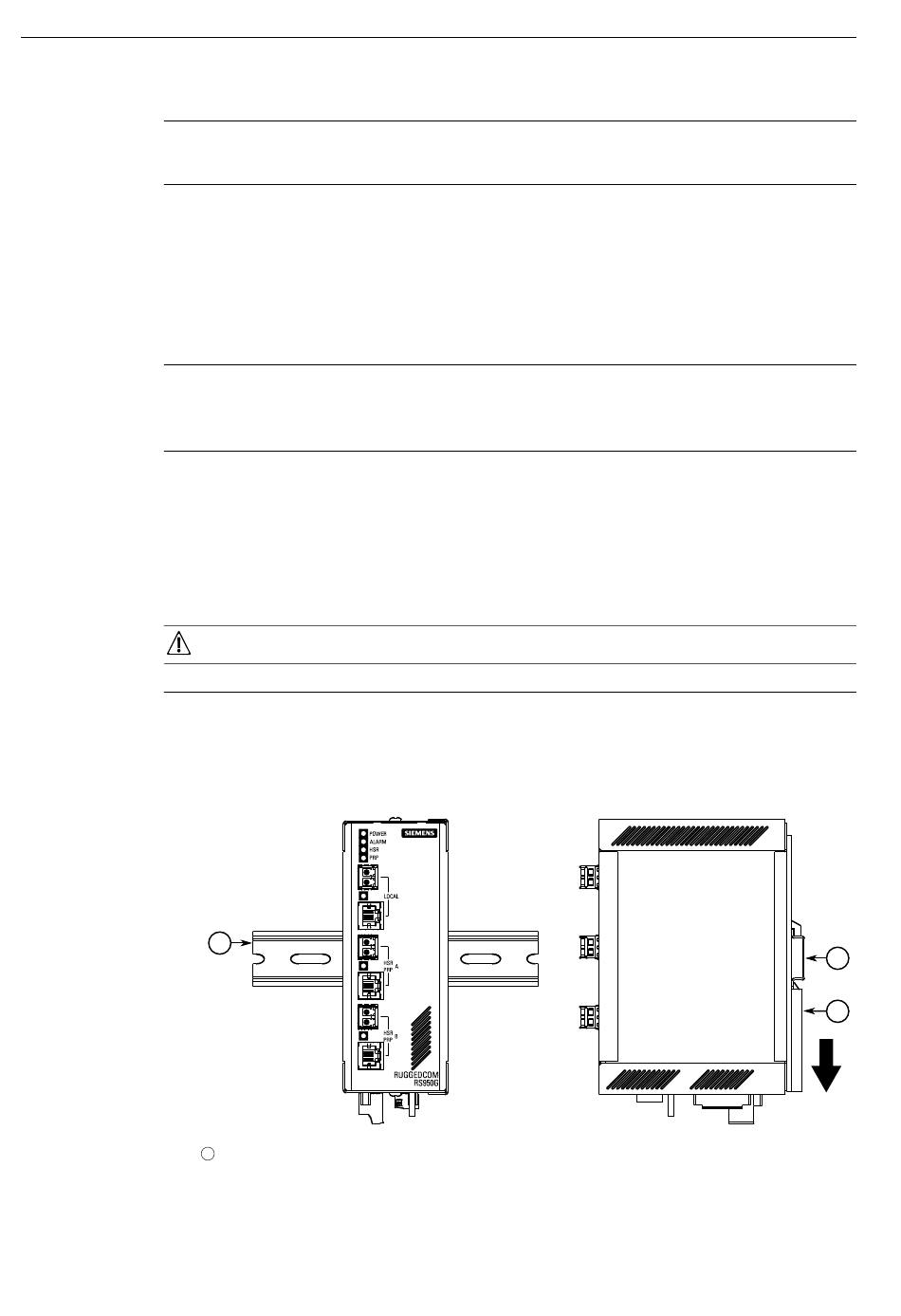

Pull the DIN rail adapter down and clip the device on to the DIN rail. Release the
adapter to secure the device.
1
DIN Rail
1
Installing the Device
