Step Instructions
00001 (SW1)
00002 (SW2)
00003 (SW3)
00004 (SW4)
Address
00000
00001
00002
00100
00101
00102
the next step. Each step starts when the switch that indicates the previous
step has been completed turns ON.

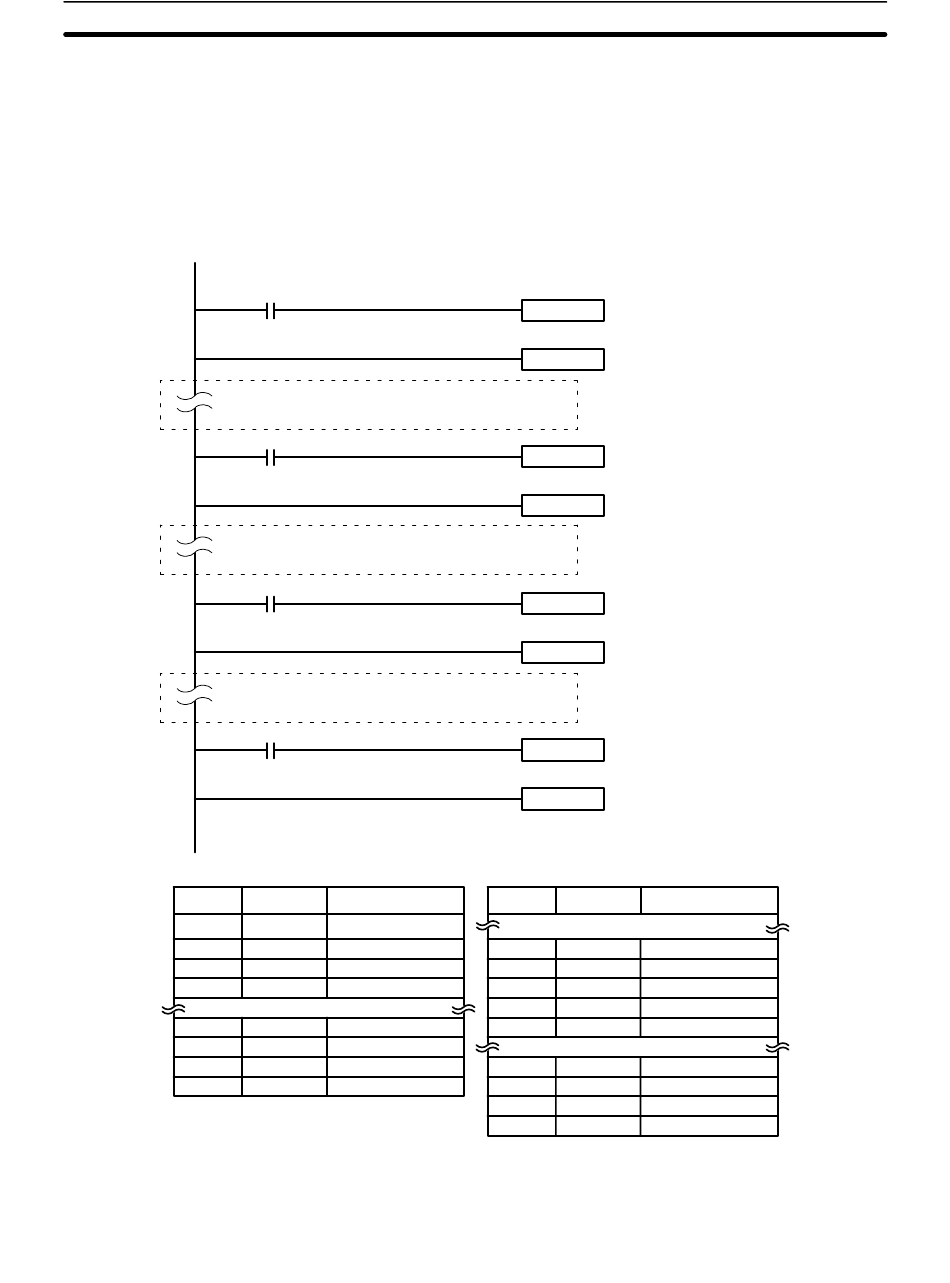

Programming for process A
Programming for process B
Programming for process C
Instruction Operands
LD 00001
SNXT(09) 12800
STEP(08) 12800
Process A
LD 00002
SNXT(09) 12801
STEP(08) 12801
Process A started.
SNXT(09) 12800
STEP(08) 12800
Process A reset.
SNXT(09) 12801
Process B started.
STEP(08) 12801
Process B reset.
SNXT(09) 12802
Process C started.
STEP(08) 12802
Process C reset.
SNXT(09) 12803
STEP(08)
Address Instruction
Process B
00100 LD
00101 SNXT(09)
00102 STEP(08)
Process C
00200 LD
00201 SNXT(09)
00202 STEP(08)
Section 5-22
Operands
00003
12802
12802
00004
12803
---
