Ladder Diagram Instructions
5-6-1

LOAD, LOAD NOT, AND, AND NOT, OR, and OR NOT

LOAD - LD
LOAD NOT - LD NOT
AND - AND
AND NOT - AND NOT
OR - OR
OR NOT - OR NOT
Limitations
Description
Flags
108

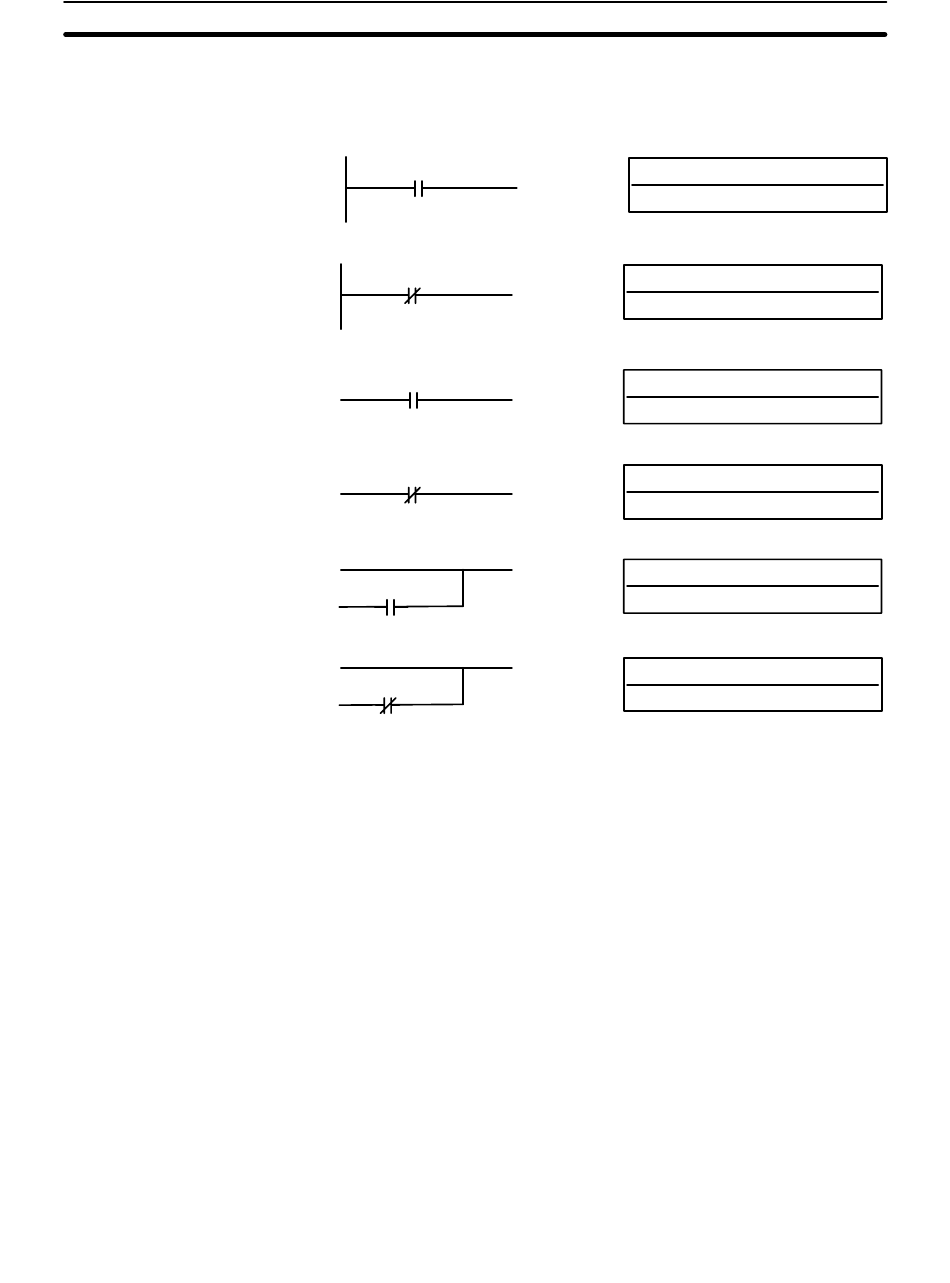

Ladder Symbols
B
B
B
B
B
B
There is no limit to the number of any of these instructions, or restrictions in
the order in which they must be used, as long as the memory capacity of the
PC is not exceeded.
These six basic instructions correspond to the conditions on a ladder dia-
gram. As described in Section 4 Programming, the status of the bits assigned
to each instruction determines the execution conditions for all other instruc-
tions. Each of these instructions and each bit address can be used as many
times as required. Each can be used in as many of these instructions as re-
quired.
The status of the bit operand (B) assigned to LD or LD NOT determines the
first execution condition. AND takes the logical AND between the execution
condition and the status of its bit operand; AND NOT, the logical AND be-
tween the execution condition and the inverse of the status of its bit operand.
OR takes the logical OR between the execution condition and the status of its
bit operand; OR NOT, the logical OR between the execution condition and
the inverse of the status of its bit operand. The ladder symbol for loading TR
bits is different from that shown above. Refer to 4-2-2 Ladder Instructions for
details.
There are no flags affected by these instructions.
Section 5-6
Operand Data Areas
B: Bit
IR, SR, AR, HR, TC, LR, TR
B: Bit
IR, SR, AR, HR, TC, LR
B: Bit
IR, SR, AR, HR, TC, LR
B: Bit
IR, SR, AR, HR, TC, LR
B: Bit
IR, SR, AR, HR, TC, LR
B: Bit
IR, SR, AR, HR, TC, LR
