Note: 37xx:
• 374E for STLINK-V3E without bridges functions
• 374F for STLINK-V3E with bridges functions
6.1.3

STLINK-V3E firmware upgrade

The STLINK-V3E embeds a firmware upgrade mechanism for in-situ upgrades through the USB port. As the
firmware may evolve during the lifetime of the STLINK-V3E product (for example new functionalities, bug fixes,
support for new microcontroller families), it is recommended to visit the
the STM32L562E-DK Discovery kit and periodically, to stay up-to-date with the latest firmware version.
6.1.4

Using an external debug tool to program and debug the onboard STM32

There are 2 basic ways to support an external debug tool:
1. Keep the embedded STLINK-V3E running. Power on the STLINK-V3E at first until the COM LED lights RED.
Then connect the external debug tool through CN8 STDC14/MIPI-10 debug connector.
2. Set the embedded STLINK-V3E in a high impedance state. When setting the jumper JP6 (STLK_RST) ON,
the embedded STLINK-V3E is in RESET state and all GPIOs are in high impedance. Then the user can
connect his external debug tool on the debug connector CN8.
UM2617 - Rev 2

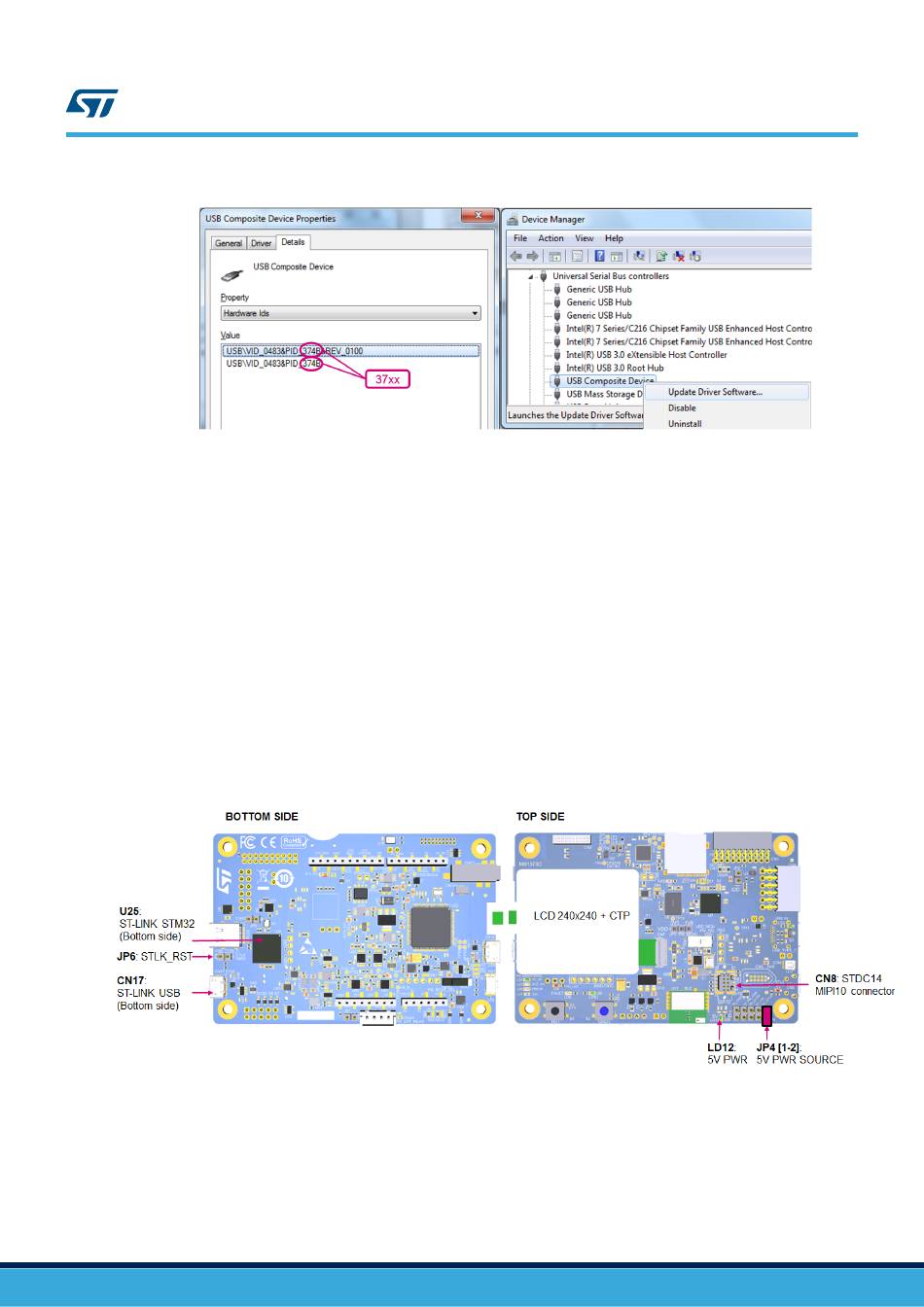

Figure 5.
