6.3.4

5V_UCPD power source: 5 V, 1 A maximum

5V_UCPD is the DC power supply connected to the CN15 user USB Type-C

select the 5V_UCPD power source on the JP4 silkscreen, the JP4 jumper must be on pins [5-6].

5V_UCPD power source configuration for jumper JP4 [5-6] is described in

UM2617 - Rev 2

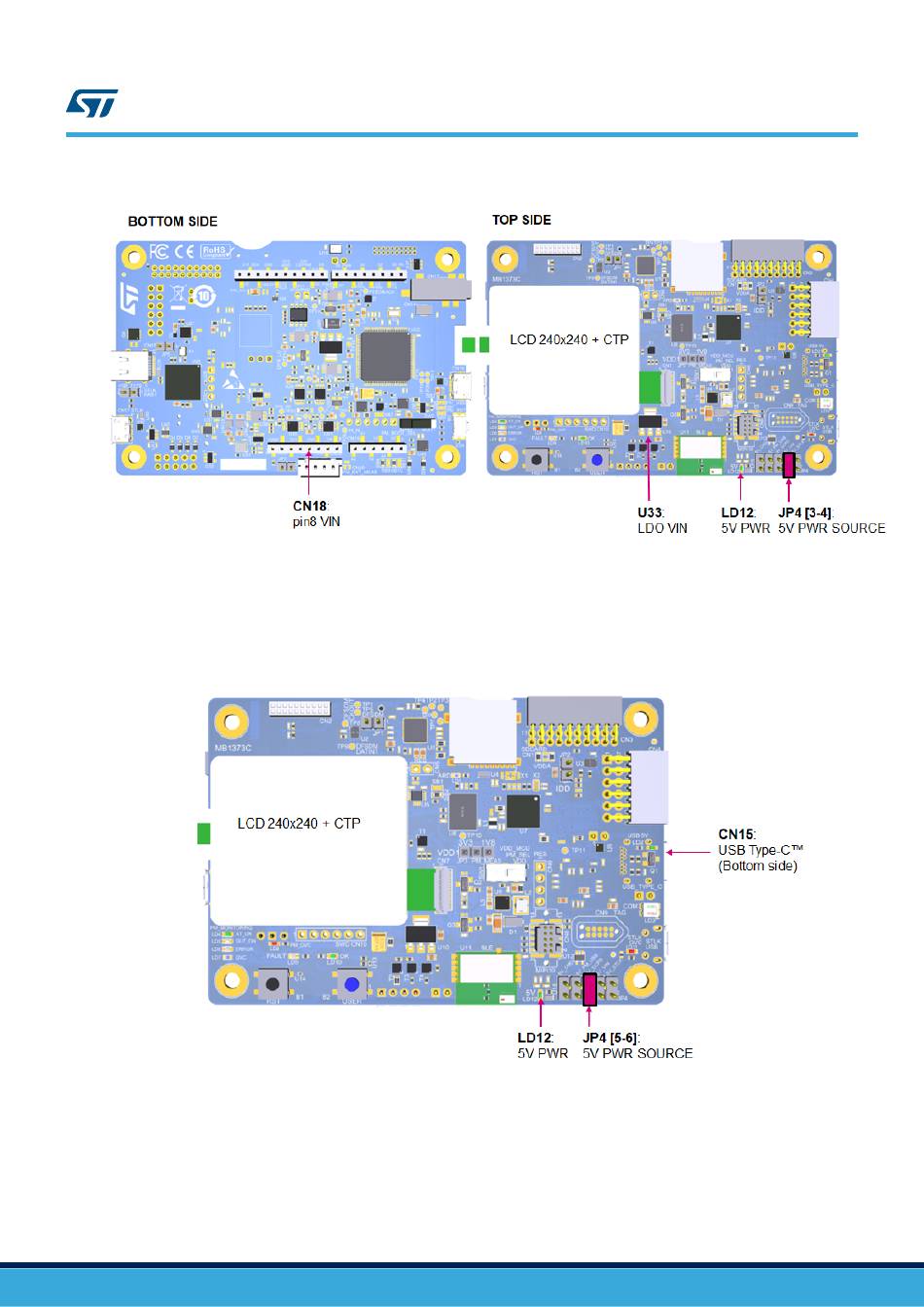

Figure 10.

JP4 [3-4]: 5V_VIN PWR SOURCE

Figure 11.

JP4 [5-6]: CN15 5V_USB_TYPE_C PWR SOURCE

UM2617

Power supply

™

connector for Power Delivery. To

Figure 11

page 15/61
