VDD_MCU selection
VDD_MCU used to supply the STM32 can be powered by the U46 DC-DC converter (3V3) by setting JP3 [1-2], or
by the U44 DC-DC converter (1V8) by setting JP3 [2-3]. For both configurations, the SW1 must be in the VDD
position.
VDD_MCU can be also powered by energy meter tools. To use the energy meter tools, follow the configuration
below:
• Set the SW1 switch to the position PM_MEAS.
• Power the board through the 5V_PM with the CN16 USB connector.
• JP4 jumper must be on pin [7-8] to select the 5V_PM power source on JP4 silkscreen.
With this configuration, it is recommended to set JP3 to the correct position, 3V3 or 1V8, to respect the I/O level
compatibility between MCU and onboard I/Os.
VDD_MCU power selection schematic is described in
details the VDD_MCU power selection.
JP6
SW1 [1-2] [5-6]
JP3 [1-2]
SW1 [2-3] [6-7]
SW1 [1-2] [5-6]
JP3 [2-3]
SW1 [2-3] [6-7]
JP3 [x-x] SW1 [2-3] [6-7]
1. The default configuration is shown in bold.
Figure 16 describes the VDD_MCU power selection on the STM32L562E-DK board.
UM2617 - Rev 2

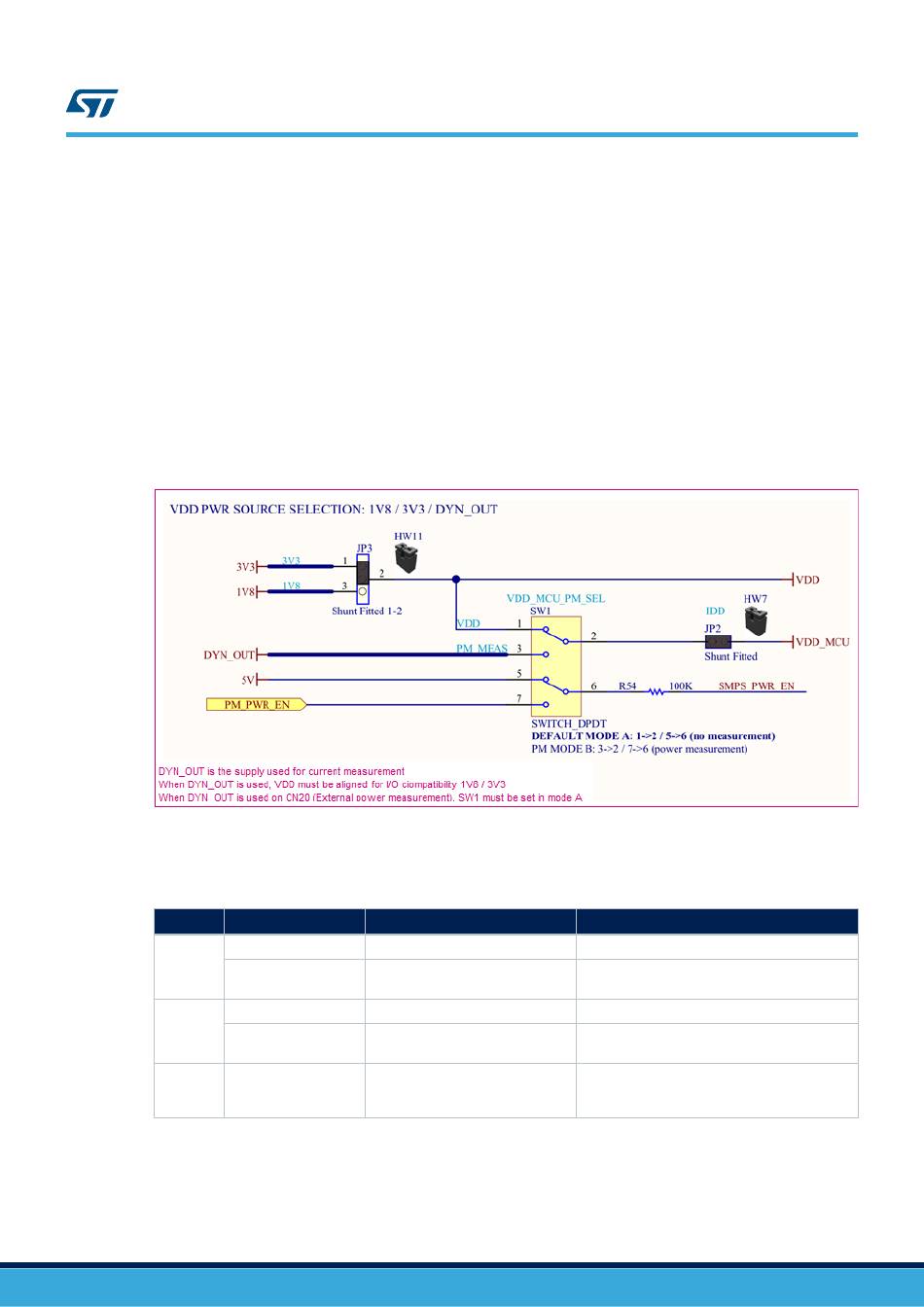

Figure 15. VDD_MCU power selection schematics
Table 8. VDD_MCU power selection
SW1
Definition
DCDC U46 3V3
NA
U44 DC-DC 1V8
NA
Current measurement selection
Figure 15.
(1)
U46 is used to provide 3V3 VDD_MCU.
U46 is used to provide 3V3 only for the onboard
device, not the MCU.
U44 is used to provide 1V8 VDD_MCU.
U44 is used to provide 3V3 only for the onboard
device, not the MCU.
Energy metering part is used to supply
VDD_MCU and to perform current consumption
measurement.
UM2617
Power supply
Comment
