4.5.3 Config Pages
Use the Configuration pages to configure all operating parameters for the LGaN. Click Amplifier, LNB,
Redundancy, Mask, or Utility to continue.
4.5.3.1

Config | Amplifier

RF Module
Name
Amplifier
Attenuation (dB)
Attenuation Offset
Fault Recovery
Mute
Aux Mute
Offline Mute
Click [Submit RF] to save any changes.
Ethernet Interface Operation

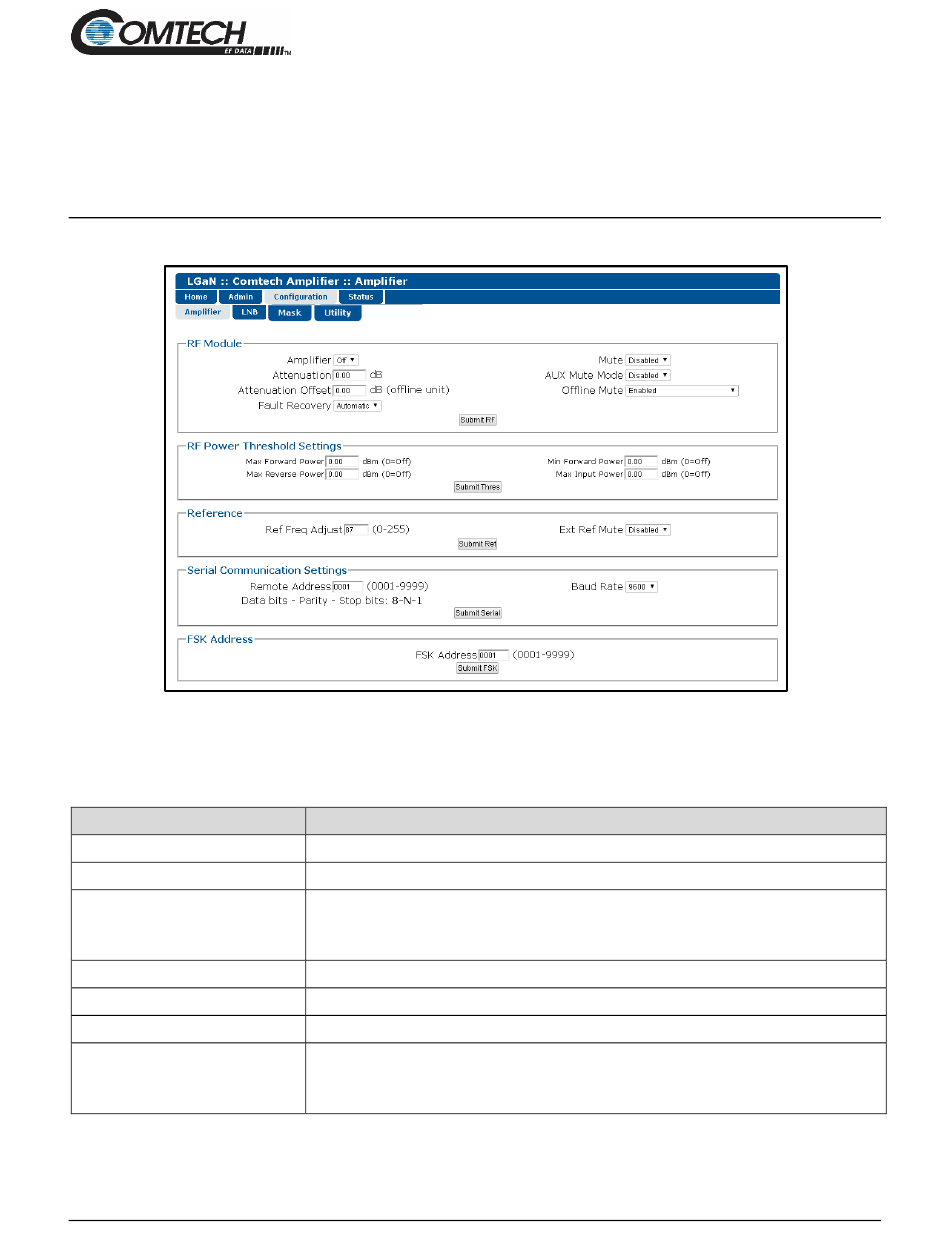

Figure 4-14. 'Config | Amplifier' Page

Use the drop-down list to select OFF or ON.
Enter a valid attenuation level (00.00 to 20.00 dB) in 0.25 dB steps.
Enter a valid offset value, in dB (00.00 to 20.00 dB) in 0.25 dB steps. Used for
Redundancy's offline unit to match Tx Gain to the online unit.
Displayed only when Redundancy is turned on.
Use the drop-down list to select Automatic or Manual.
Use the drop-down list to select Enabled or Disabled.
Use the drop-down list to select Enabled or Disabled.
Use the drop-down list to select Enabled, Disabled, MuteRx, MuteTx, MuteRx+LNB,
MuteTx+LNB, Mute Tx+Amp, or Mute Tx+LNB+Amp.
Displayed only when Redundancy is turned on.
