3.2.1.1
LGaN Connections
For Ethernet connections, see Figure 3-2. Your connection may consist of the CAT5e Ethernet adapter
cable (CEFD P/N CA-0000352) connecting the LGaN to the User PC Ethernet port. The example in
Figure 3-2 uses the optional LGaNnet (part of the CEFD KT-0000203 M&C Netbook Accessory Kit).
3.2.2 LGaN Management IP Address and Firmware Information
Chapter 2. SYSTEM CONNECTORS, INSTALLATION,
To obtain the LGaN Management IP Address and Firmware Information, do these steps:
1. On the LGaN, apply power to the unit. Refer to Chapter 2, Section 2.2.3 or 2.2.4 to identify your
specific power connector.
2. Identify your default Management IP Address. You will not be able to access the LGaN HTTP
(Web Server) Interface without this information.
3. Get the firmware information using either of these methods:
To use the HTTP Interface, see Section 3.2.2.1.
3.2.2.1
Locate Firmware Information via HTTP Interface
Chapter 4. ETHERNET INTERFACE OPERATION
To locate the Firmware information, use the HTTP Interface and do these steps:
1. Navigate to the Admin > Upgrade web page, as shown in Figure 3-2.
2. Write down your firmware information for further reference or to provide to CEFD Product
support.
Firmware Update

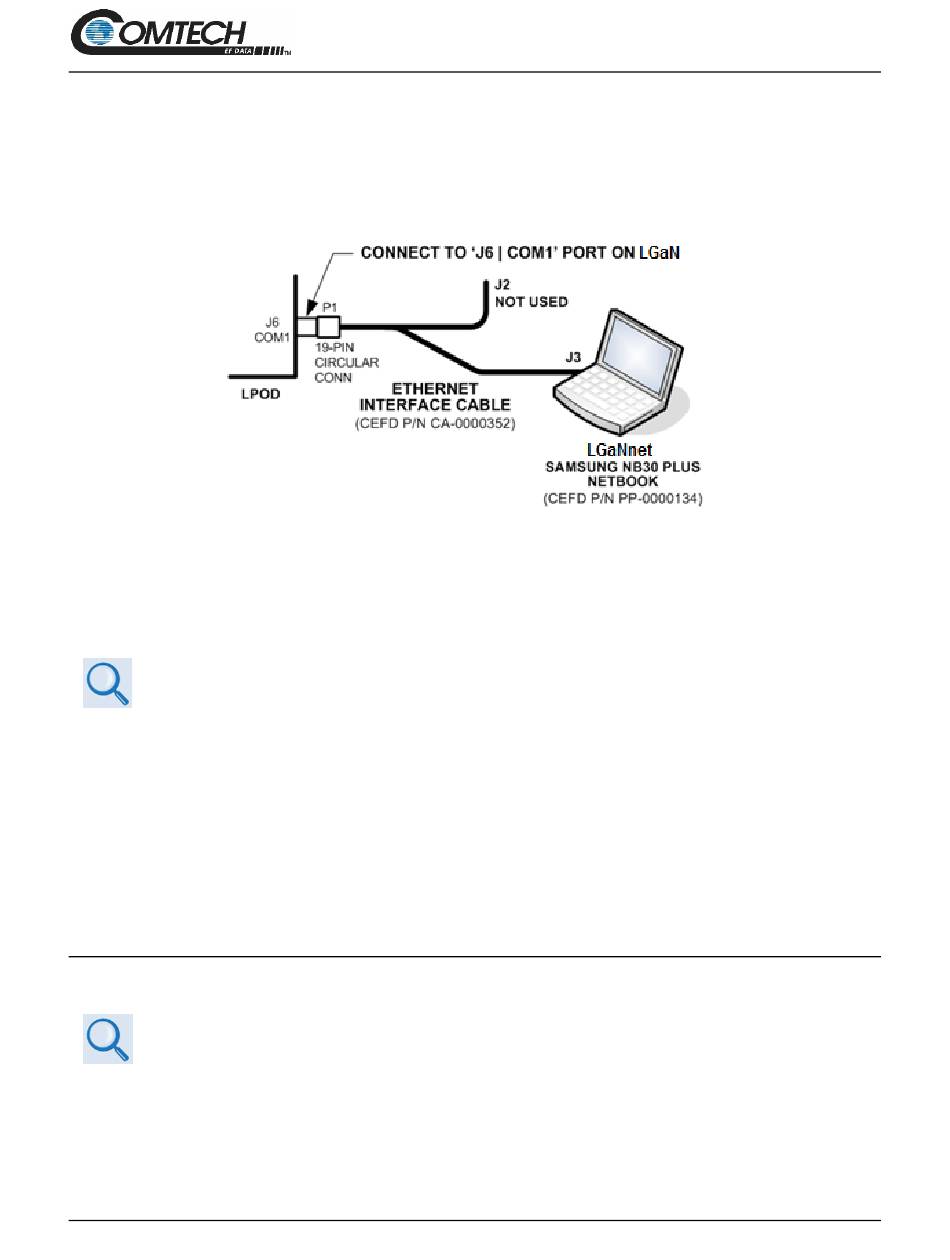

Figure 3-2. Standalone Ethernet Connection
STARTUP
AND
3–3
LGaN
Revision 0
MN-LGAN
