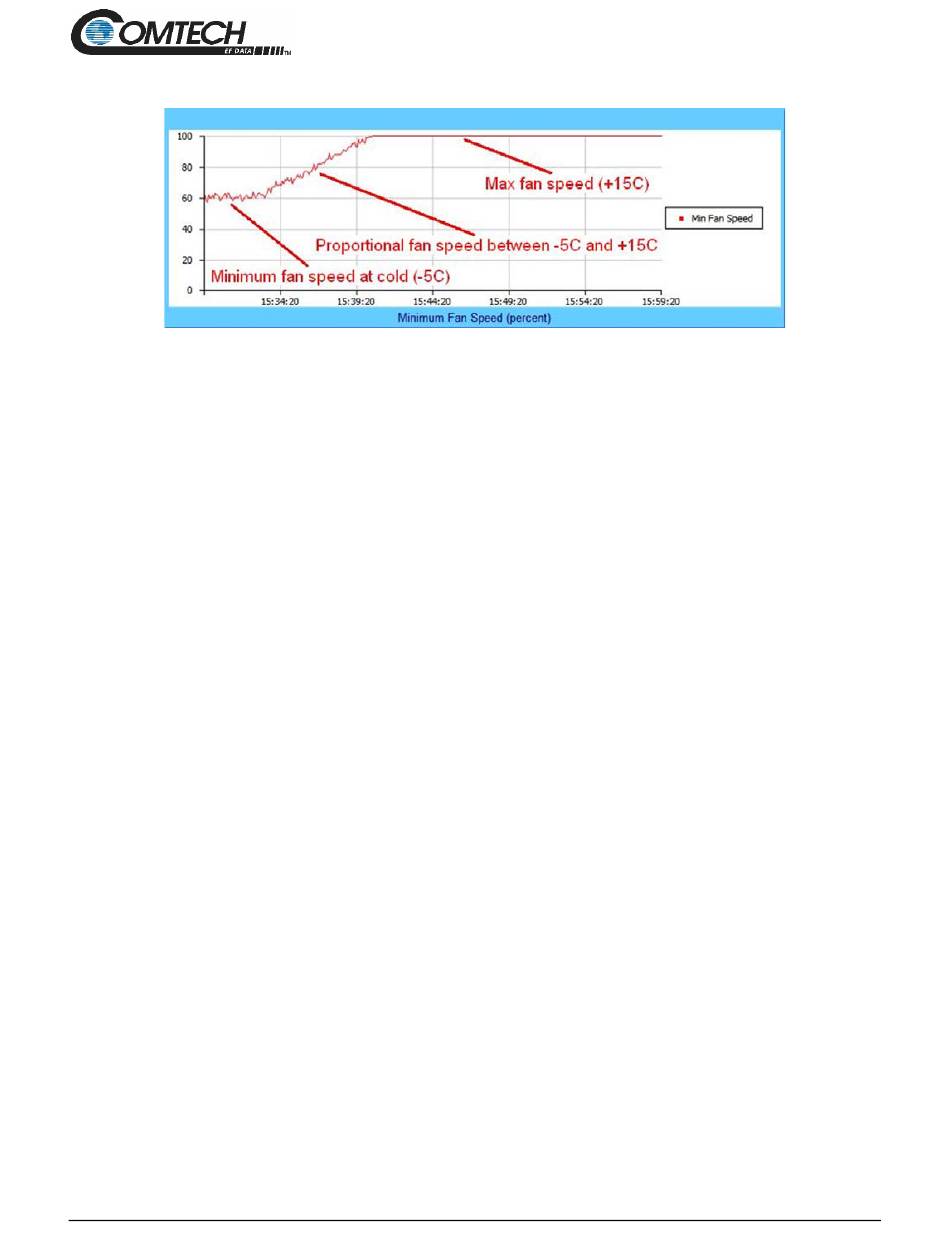

Minimum Fan Speed Graph
This graph displays the slowest fan speed of any of the fans installed in the system. This example
demonstrates the fan running at minimum, proportional, and maximum speeds. Note that:
•
Proportional fan speed: Proportional to the unit's heat sink temperature -5 to +15°C (23 to 59°F).
•
Minimum fan speed: Temperatures at or below -5°C (23°F), the LGaN minimizes its fan speed.
•
Maximum fan speed: Temperatures at or above +15°C (59°F), the LGaN maximizes its fan speed.
Ethernet Interface Operation
4–34
LGaN
Revision 0
MN-LGAN
