Test Pattern - FLIR GRASSHOPPER 3 Series Technical Reference

9.4

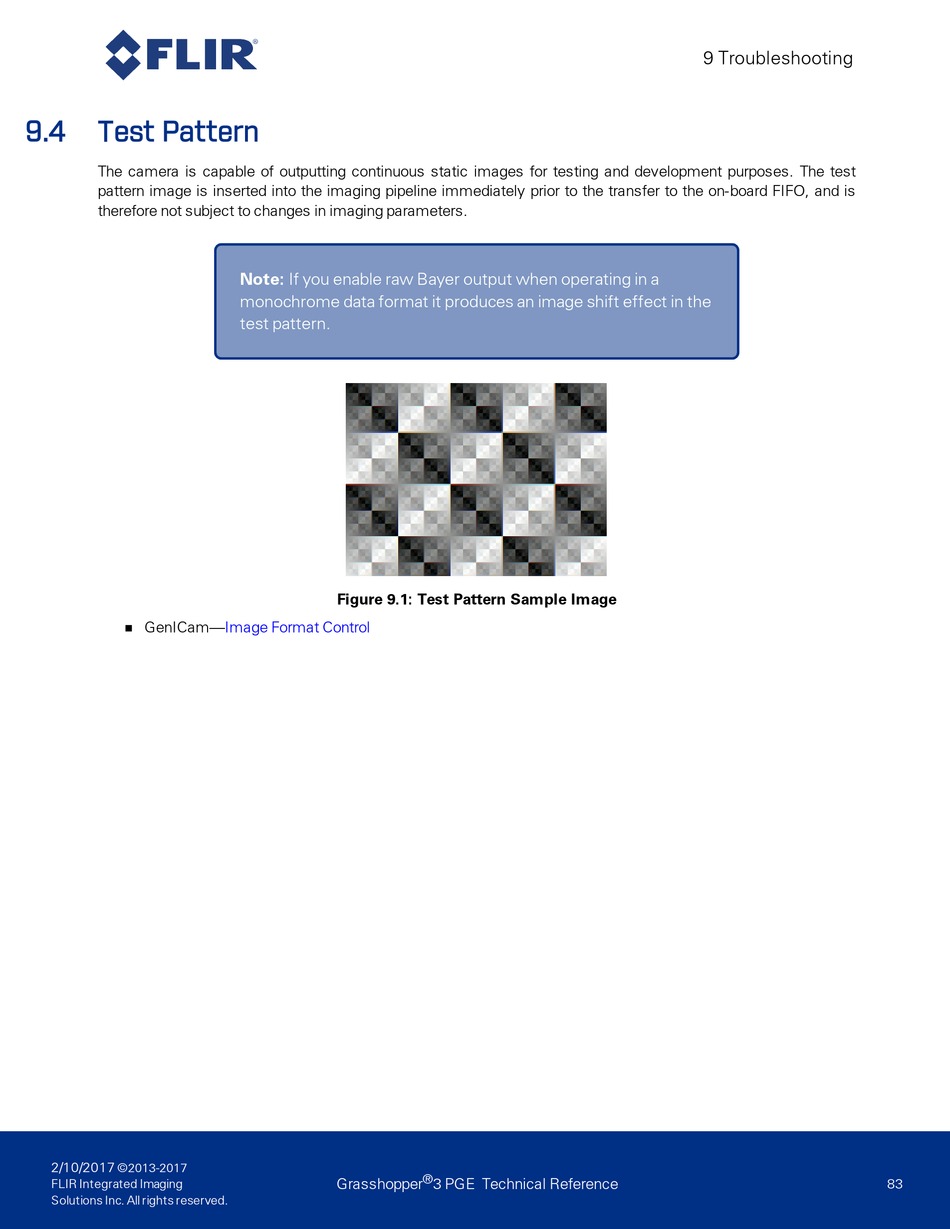

Test Pattern

The camera is capable of outputting continuous static images for testing and development purposes. The test
pattern image is inserted into the imaging pipeline immediately prior to the transfer to the on-board FIFO, and is
therefore not subject to changes in imaging parameters.
GenICam—Image Format Control
n
2/10/2017
©2013-2017
FLIR Integrated Imaging
Solutions Inc. All rights reserved.
Note: If you enable raw Bayer output when operating in a
monochrome data format it produces an image shift effect in the
test pattern.
Figure 9.1: Test Pattern Sample Image
