Skip Frames Trigger (Mode 3)
Skip Frames mode allows the user to put the camera into a mode where the camera only transmits one out of N
specified images. This is an internal trigger mode that requires no external interaction. Where N is the parameter
set in the Trigger Mode, the camera will issue a trigger internally at a cycle time that is N times greater than the
current frame rate. As with Trigger Mode 0, the Shutter value describes integration time.
2/10/2017
©2013-2017
FLIR Integrated Imaging
Solutions Inc. All rights reserved.

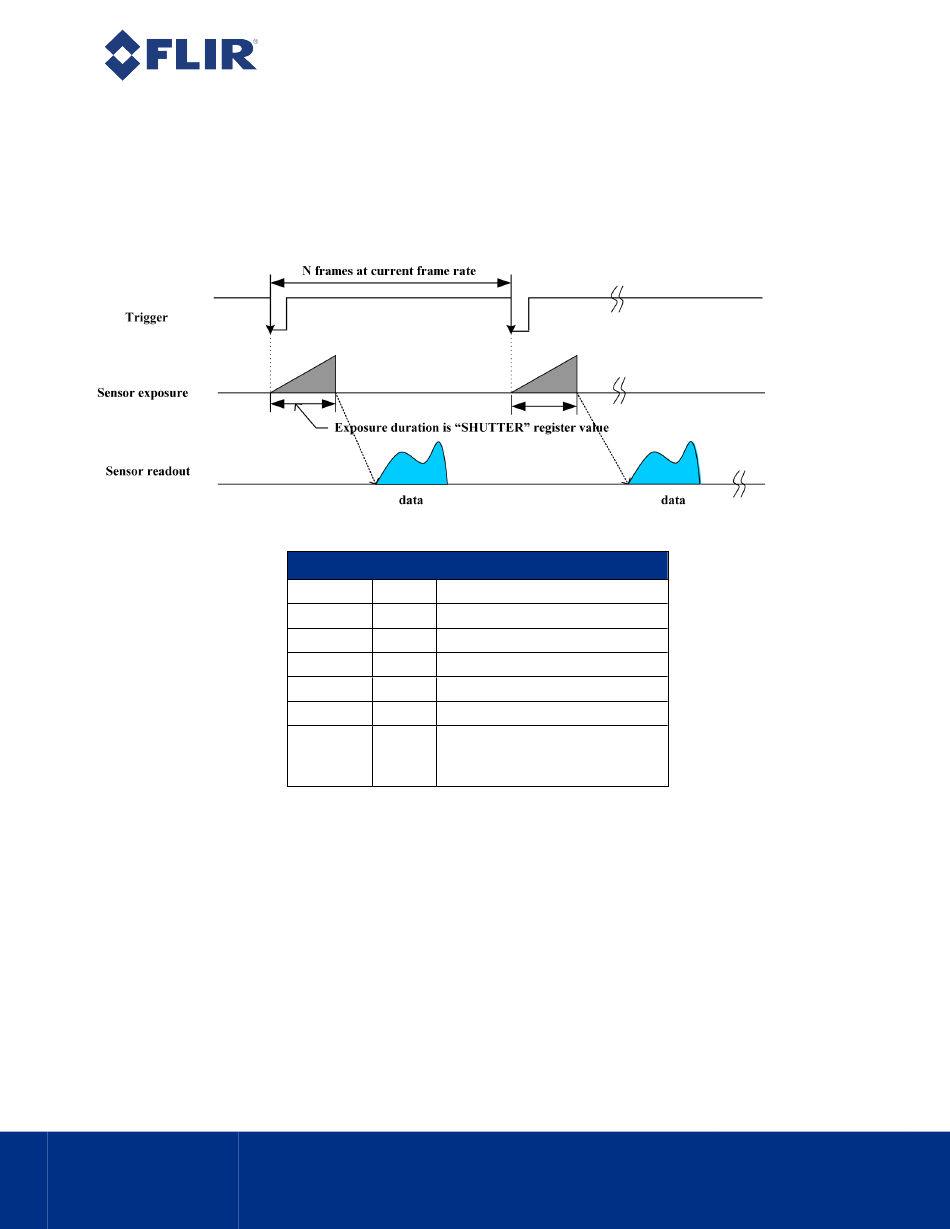

Figure 7.3: Trigger Mode 3 ("Skip Frames Mode")
Registers—TRIGGER_MODE: 830h
Presence
[0]
1
ON
[6]
1
Polarity
[7]
Low/High
Source
[8-10]
GPIO Pin
Value
[11]
Low/High
Mode
[12-15]
Trigger_Mode_3
N 1 out of N images is
Parameter
[20-31]
transmitted. Cycle time N times
greater than current frame rate
®
