Asynchronous Software Triggering

Shutter integration can be initiated by a software trigger by setting the Trigger Source to Software in the GenICam
features.
The time from a software trigger initiation to the start of shutter is shown below:
The time from when the software trigger is written on the camera to when the start of integration occurs can only
be approximated. We then add the trigger latency (time from the trigger pulse to the start of integration) to this.
2/10/2017
©2013-2017
FLIR Integrated Imaging
Solutions Inc. All rights reserved.

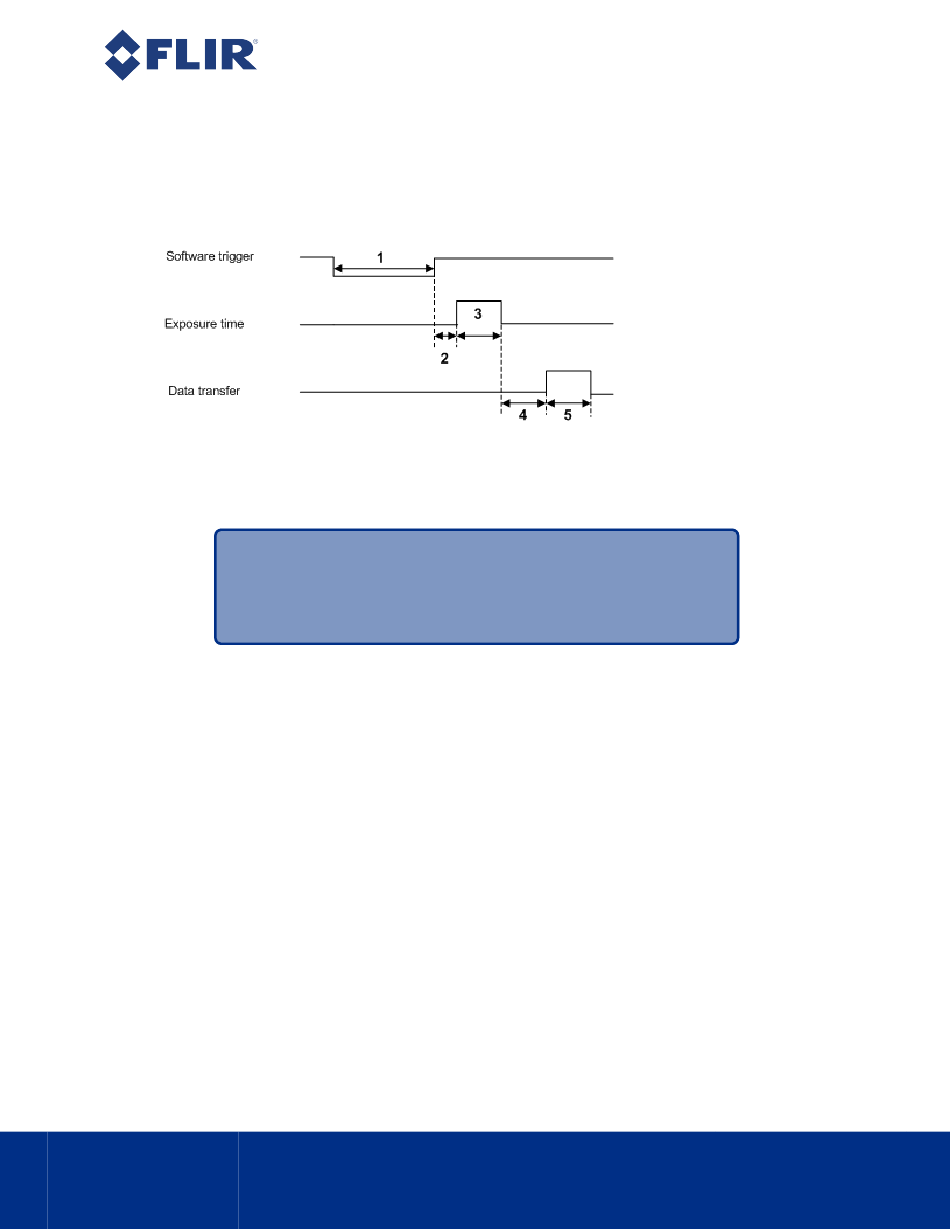

Figure 7.9: Software trigger timing
Note: This timing is solely from the camera perspective. It is
virtually impossible to predict timing from the user perspective
due to latencies in the processing of commands on the host PC.
Grasshopper
®
3 PGE Technical Reference
7 Image Acquisition
1. Software Trigger
2. Trigger Latency
3. Exposure Time
4. Sensor Readout
5. Data Transfer
