Input/Output Control

6.1

General Purpose Input/Output (GPIO)

The camera has an 8-pin GPIO connector on the back of the case; refer to the diagram below for wire color-coding.
The connector is a Hirose HR25 8 pin connector with part number: HR25-7TR-8SA. The male connector is part
number: HR25-7TP-8P(72).
Diagram
Power can be provided through the GPIO interface. The camera selects whichever power source is supplying a
higher voltage.
For more information on camera power, see
For details on GPIO circuits, see
2/10/2017
©2013-2017
FLIR Integrated Imaging
Solutions Inc. All rights reserved.

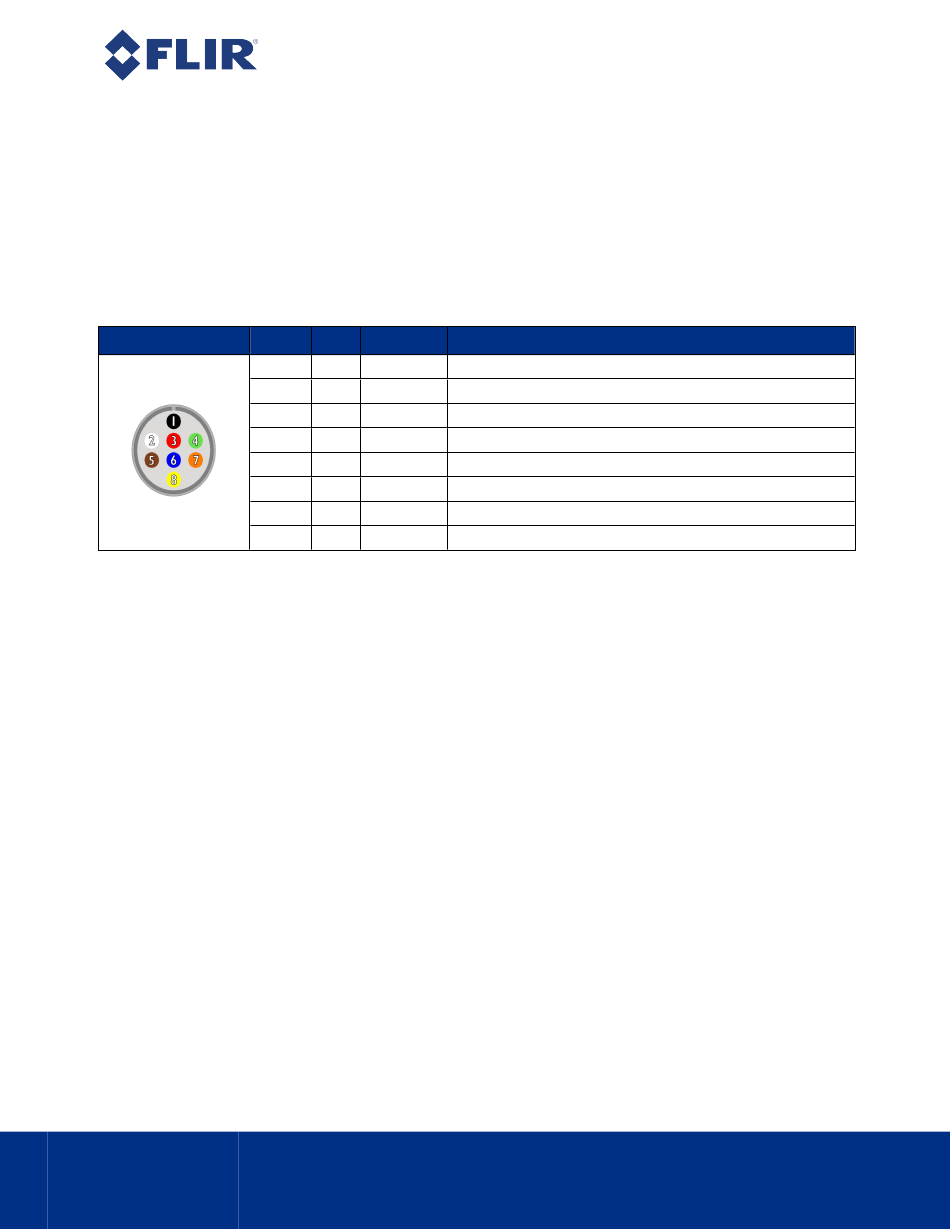

Table 6.1: GPIO pin assignments (as shown looking at rear of camera)
Color Pin Function
Black 1 I0
White 2 O1
Red 3 IO2
Green 4 IO3
Brown 5 GND
Blue 6 OPTO_GND
Orange 7 V
EXT
Yellow 8 +3.3 V
Powering the
GPIO Electrical
Grasshopper
Opto-isolated input (default Trigger in)
Opto-isolated output
Input/Output/serial transmit (TX)
Input/Output/serial receive (RX)
Ground for bi-directional IO, V
Ground for opto-isolated IO pins
Allows the camera to be powered externally
Power external circuitry up to 150 mA
Camera.
Characteristics.
®
3 PGE Technical Reference
6 Input/Output Control
Description
, +3.3 V pins
EXT
32
