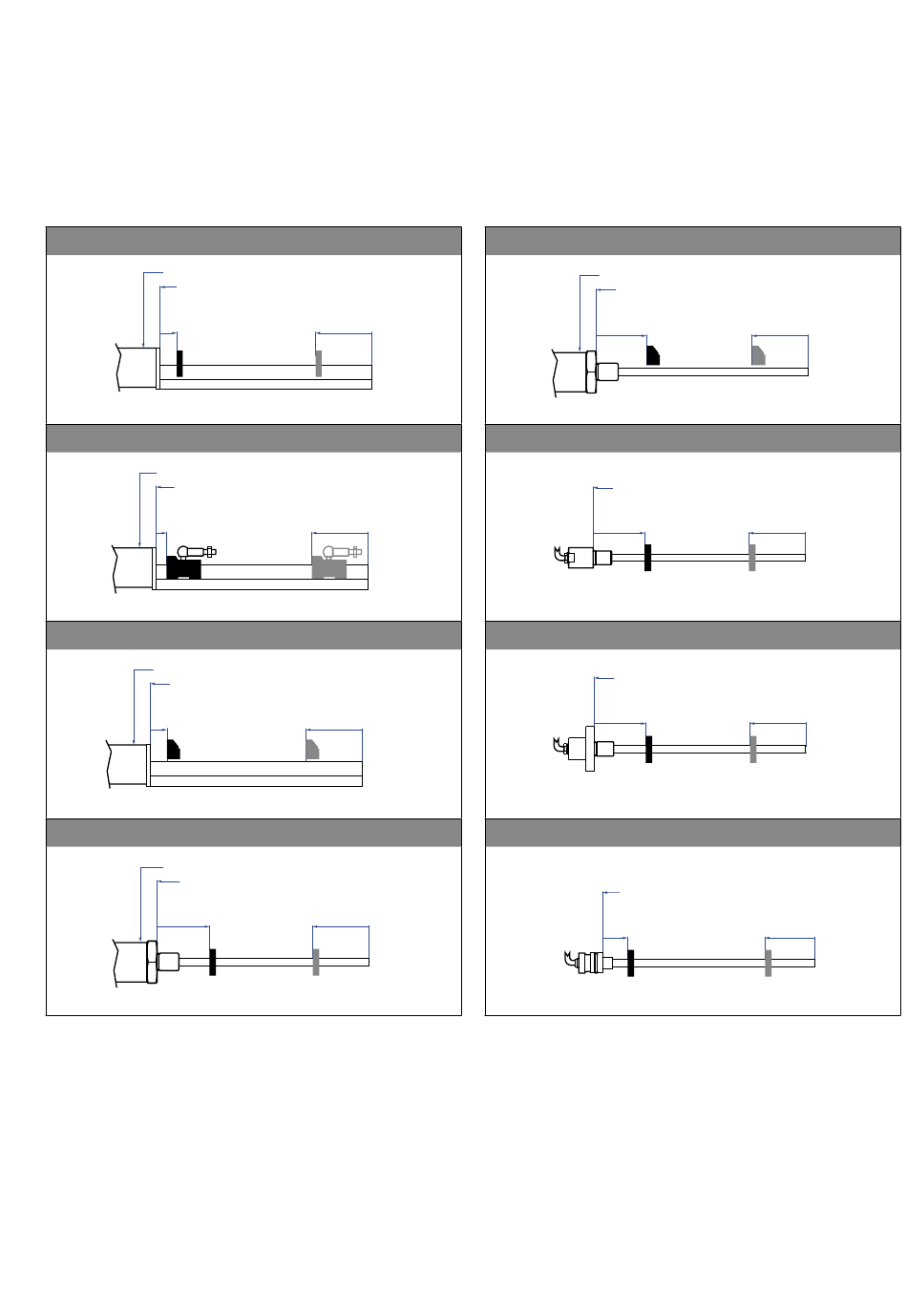

Start- and end positions of the position magnets
Consider the start and end positions of the position magnets during
the installation. To ensure that the entire stroke length is electrically
RP with U-magnet
Sensor electronics housing
Reference edge of mounting
Start position
28 (1.1)
* Stroke length > 5000 mm (196.9 in.)
RP with magnet slider "S", "N", "V", "G"
Sensor electronics housing
Reference edge of mounting
Start position
12 (0.47)
* Stroke length > 5000 mm (196.9 in.)
RP with block magnet
Sensor electronics housing
Reference edge of mounting
Start position
25.5 (1)
* Stroke length > 5000 mm (196.9 in.)
RH with ring magnet & U-magnet
Sensor electronics housing
Reference edge of mounting
Start position
51 (2.01)
* Stroke length > 5000 mm (196.9 in.)
Fig. 35: Start- & end positions of magnets, part 1
End position
66 / 71* (2.6 / 2.8*)
End position
82 / 87* (3.23 / 3.43*)
End position
68.5 / 73.5* (2.7 / 2.9*)
End position
63.5 / 66* (2.5 / 2.6*)
usable, the position magnet must be mechanically mounted as
follows.
RH with block magnet
Sensor electronics housing
Reference edge of mounting
Start position
48.5 (1.91)
* Stroke length > 5000 mm (196.9 in.)
RD4-M / -T / -G with ring magnet & U-magnet
Reference edge of mounting
Start position
51 (2.01)
* Stroke length > 5000 mm (196.9 in.)
RD4-C / -D with ring magnet & U-magnet
Reference edge of mounting
Start position
51 (2.01)
* Stroke length > 5000 mm (196.9 in.)
RD4-S with ring magnet & U-magnet
Reference edge of mounting
Start position
21.4 (0.84)
Fig. 36: Start- & end positions of magnets, part 2
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
I 23 I
Temposonics
R-Series Powerlink V2
®
Operation Manual
End position
66 / 68.5* (2.6 / 2.7*)
End position
63.5 / 66* (2.5 / 2.6*)
End position
63,5 / 66*
End position
63.5 (2.5)
