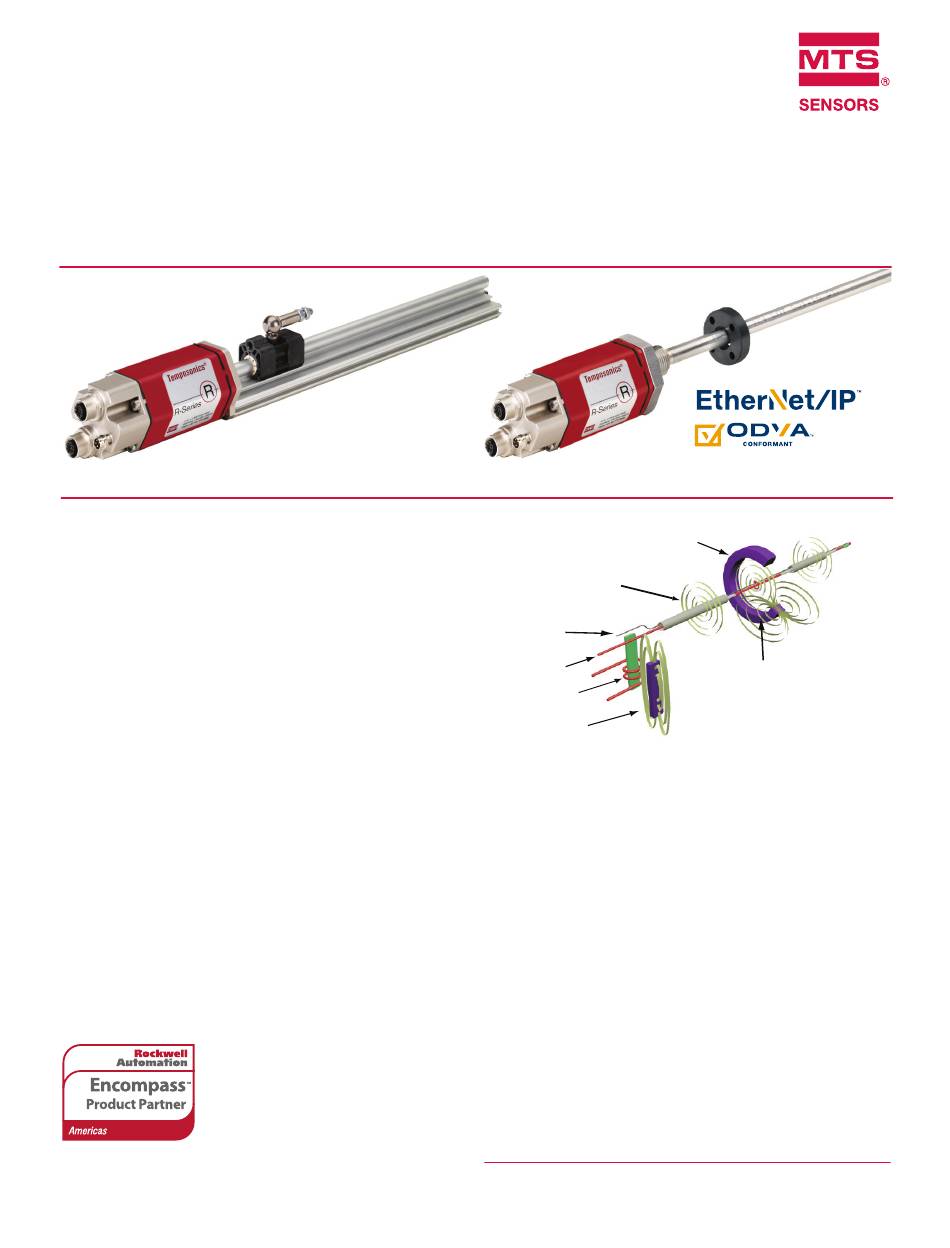

Temposonics
Magnetostrictive Linear-Position Sensors
R-Series Models RP and RH
EtherNet/IP
Industrial Ethernet Interface

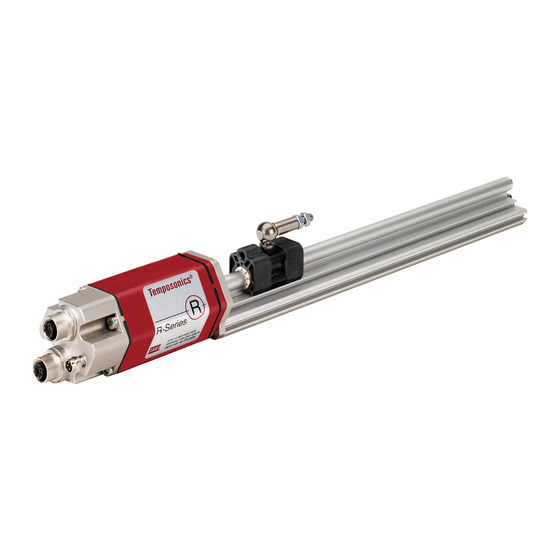

Model RP Profile-style position sensor
FEATURES
„ Linear, Absolute Measurement
„ LEDs For Sensor Diagnostics
„ Superior Accuracy, Resolution down to 1 µm
„ Non-Contact Sensing Technology
„ Linearity Less Than 0.01 %
„ Repeatability Within 0.001 %
„ Direct EtherNet/IP™ Interface, Position + Velocity
BENEFITS
„ Rugged Industrial Sensor
„ Position + Velocity Measurements For Up to 20 Magnets
APPLICATIONS
„ Continuous Operation In Harsh Industrial Conditions
„ High Pressure Conditions
„ For Accurate, Simultaneous Multi-Position
and Velocity Measurements
TYPICAL INDUSTRIES
„ Factory Automation
„ Fluid Power
„ Plastic Injection and Blow Molding
„ Material Handling and Packaging
EtherNet/IP™ is a trademark used under license by ODVA.
ODVA CONFORMANT™ is a certification mark of ODVA.
®
Data Sheet
Model RH Rod-style position sensor
Time-based Magnetostrictive position sensing principle
Magnetic field encompasses
entire waveguide - generated
by the interrogation pulse
Interrogation
Return wire
Waveguide
Strain-Pulse detector
Bias magnet
Benefits of Magnetostriction
Temposonics
strictive position sensing principle developed by MTS Sensors. Within
the sensing element, a sonic-strain pulse is induced in a specially
designed magnetostrictive waveguide by the momentary interaction of
two magnetic fields. One field comes from a movable permanent mag-
net that passes along the outside of the sensor. The other field comes
from an "interrogation" current pulse applied along the waveguide.
The resulting strain pulse travels at sonic speed along the waveguide
and is detected at the head of the sensing element.
The position of the magnet is determined with high precision and
speed by accurately measuring the elapsed time between the applica-
tion of the interrogation pulse and the arrival of the resulting strain
pulse with a high-speed counter. The elapsed time measurement is
directly proportional to the position of the permanent magnet and is
an absolute value. Therefore, the sensor's output signal corresponds
to absolute position, instead of incremental, and never requires
recalibration or re-homing after a power loss. Absolute, non-contact
sensing eliminates wear, and guarantees the best durability and output
repeatability.
All specifications are subject to change. Contact MTS Sensors for
specifications and engineering drawings that are critical to your application.
Drawings contained in this document are for reference only.
Go to http://www.mtssensors.com for the latest support documentation and
related media.
Document Part Number
Movable position magnet
®
linear-position sensors use the time-based magneto-
551253 Revision C
Magnetic field from
position magnet
Interaction of magnetic
fields causes waveguide to
generate a strain pulse

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Temposonics R Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MTS Sensors Temposonics R Series

  • Page 1 All specifications are subject to change. Contact MTS Sensors for EtherNet/IP™ is a trademark used under license by ODVA. specifications and engineering drawings that are critical to your application.
  • Page 2: Product Overview

    Ring magnet, U-magnet, or magnet float ** The IP rating is not part of the UL Recognition. R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors...
  • Page 3: Enhanced Monitoring And Diagnostics

    ‘Figure 1’, IEC 61158-2 for the physical layer and IEC 61784-1, -2 for measurement the LEDs provide basic visual and control profiles. The MTS Sensors R-Series EtherNet/IP™ sensor monitoring for normal sensor last passed the ODVA EtherNet/IP™ Conformance Test in September operation and troubleshooting.
  • Page 4: Model Rp Profile-Style Sensor Dimension References

    Controlling design dimensions are in millimeters and measurements in ( ) are in inches R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors...
  • Page 5: Standard Magnet Selections (Model Rp)

    This magnet may influence the (0.81 in.) sensor performance specifications U-magnet for some applications. R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® MTS Sensors Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015...
  • Page 6: Sensor Mounting

    2. One additional mounting foot is included for stroke lengths over 1250 mm (50 in.) and for each additional 500 mm (20 in.), thereafter. 3. MTS Sensors recommends using 10-32 cap screws (customer supplied) at a maximum torque of 44 in. lbs. when fastening mounting feet.
  • Page 7: Model Rh Rod-Style Sensor Dimension Reference

    53 mm Table 2. Model RH Rod-style sensor housing style and flange type references R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® MTS Sensors Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015...
  • Page 8: Standard Magnet Selections (Model Rh)

    Collar (part no.: 560777) is recommended for end of stroke stops. R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors...
  • Page 9: Cylinder Installation

    +24 Vdc (-15/+20%) White No connection Blue DC ground (for supply) Black No connection R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® MTS Sensors Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015...
  • Page 10 M12 x 1 Male, (M12) RJ45 Connector 16 mm 4-pin connector (0.63 in.) dia. R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors...
  • Page 11 Z — — = Number of magnets for output N101 (range 02 to 20) R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® MTS Sensors Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015...
  • Page 12: Declaration Of Conformity

    Model RP and RH Sensors Declaration of Conformity R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors...
  • Page 13 Model RP and RH Sensors Declaration of Conformity R-Series Models RP and RH Temposonics Linear-Position Sensors - EtherNet/IP™ Industrial ® MTS Sensors Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015...
  • Page 14 Fax + 39 030 982 3359 Fax + 49 2351 56491 info.it@mtssensors.com info.de@mtssensors.com www.mtssensors.com www.mtssensors.com JAPAN CHINA MTS Sensors Technology Corp. MTS Sensors 737 Aihara-machi, Room 504, Huajing Commercial Center, Machida-shi, No. 188, North Qinzhou Road Tokyo 194-0211, Japan 200233 Shanghai, China Tel.
