Temposonics R-Series Powerlink V2
®
Operation Manual
4.2 Styles and installation of Temposonics
RP
49
(1.93)
M5 or
#10 screw
Ø 5.5
(0.21)
35.6
(1.4)
50
(1.97)
68
(2.68)

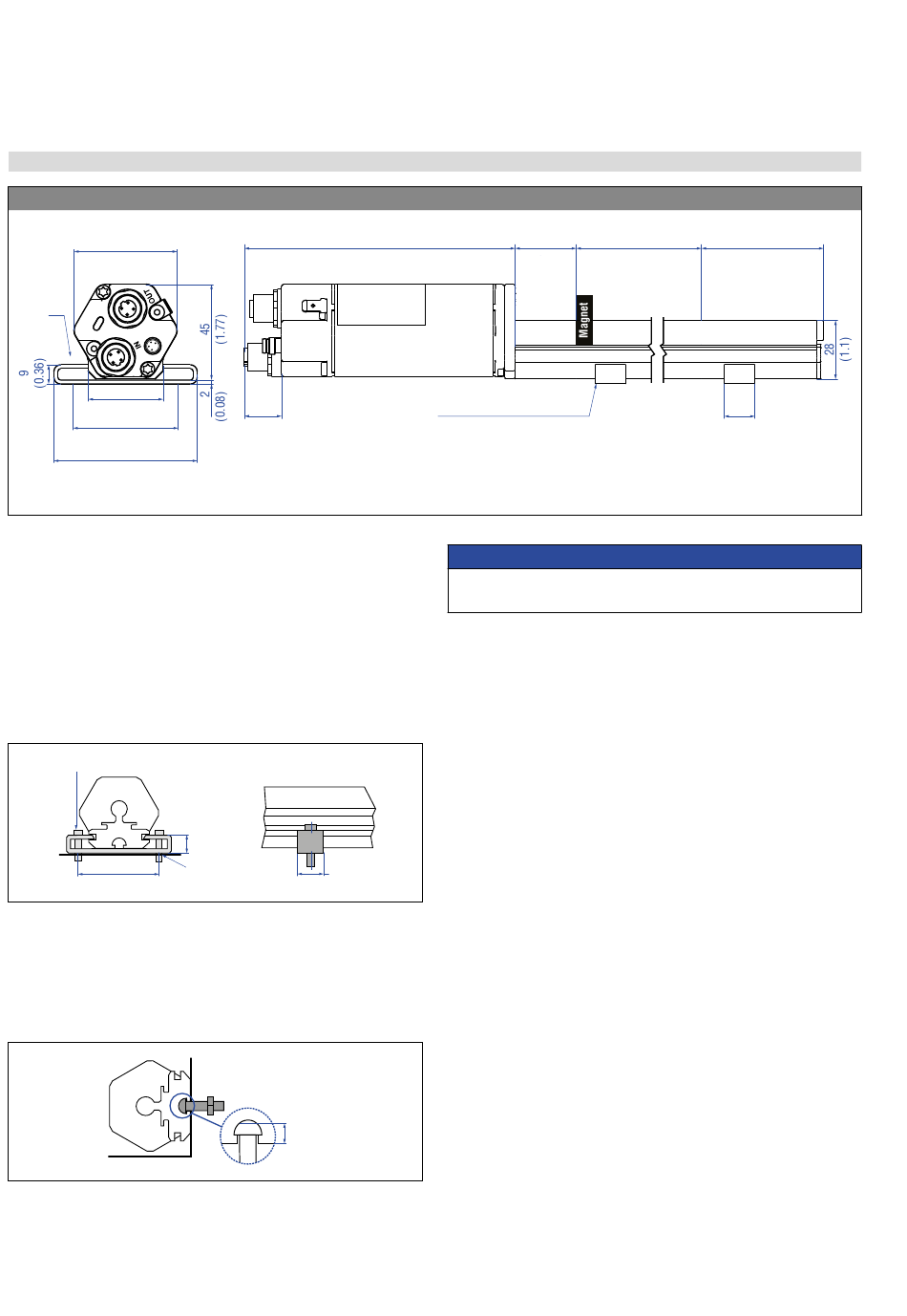

Fig. 3: Temposonics RP-M with U-magnet
®
Installation of RP
The position sensor can be installed in any position. Normally,
the sensor is firmly installed and the position magnet is fastened
to the mobile machine part. Thus it can travel along the sensor profile.
The sensor is fitted on a flat machine surface using the mounting
clamps (Fig. 4). A length-dependent number of these clamps are
delivered with the sensor and must be distributed over the profile
at regular distances. For fastening use M5×20 screws to DIN 6912 that
should be tightened with a fastening torque of 5 Nm.
Fastening torque: 5 Nm
50
(1.97)
Fig. 4: Mounting clamps (part no. 400 802) with cylinder screw M5×20
Alternative:
If only limited space is available, the profile sensor can be mounted
also via the T-rail in the profile bottom using an T-slot nut M5
(part no. 401 602) or a sliding block (Fig. 5).
Fig. 5: T-slot nut M5 (part no. 401 602)
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
RP
®
Sensor electronics housing
(5.07)
18
(0.71)
9.5
(0.38)
Bore Ø 5.5 14.5
(Ø 0.27) (0.57)
M5
≤ 5
(≤ 0.2)
Null zone
129
Adjustable mounting clamp
NOTICE
Take care to mount the sensor in an axially parallel position to
avoid damage to magnet and sensor.
I 10 I
Stroke length
28 25...5080
(1.1) (1...200)
* > 5000 mm (196.9 in.) stroke length
Dead zone
66 / 71*
(2.6 / 2.8*)
14.5
(0.57)
