MTS Sensors Temposonics R Series Datasheet

Temposonics
Magnetostrictive, Absolute, Non-contact
FeaTuReS
„ Linear, absolute Measurement along an arc
„ LeDs For Sensor Diagnostics
„ Non-Contact Sensing Technology
„ Linearity Deviation Less Than 0.02%
„ Repeatability Within 0.001%
„ Flexible Housing is Optional For MTS R-Series Sensors With
The Following Full Range of Outputs:
Voltage, Current, SSI, CaNbus, DeviceNet, Profibus,
etherCaT and etherNet/IP
®
„ Measuring Stroke Range:
255 mm (10 in.) to 10,060 mm (396 in.)
(Contact factory for longer stroke lengths)
BeNeFITS
„ Rugged Industrial Sensor
„ Multi-Magnet Position Measurement: up to 20 Positions
„ 100% Field adjustable Null and Span Setpoints
„ Cost effective, Convenient Shipping for Long Measuring
Lengths
aPPLICaTIONS
„ Hydraulic Cylinder applications with Limited Sensor
Installation Space
„ accurate Position Measurement along an arc
„ Very Long Measurement Lengths
TyPICaL INDuSTRIeS
„ Fluid Power
„ Steel Mills using Long Cylinders
„ Material Handling and Packaging
„ Woodworking, Metalworking and assembly Tools
„ Converting Machines
Linear-Position Sensors

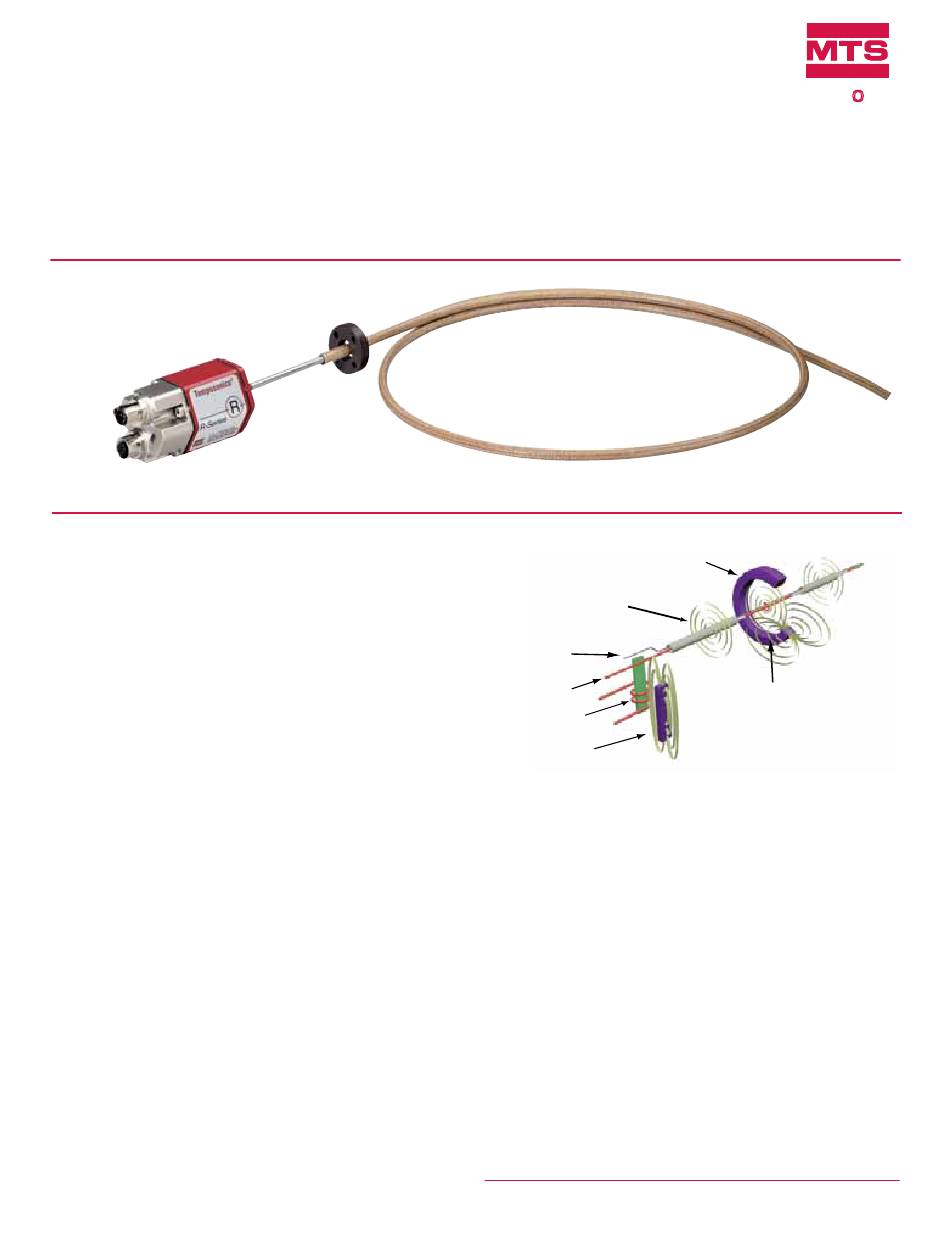

R-Series Model RF
Flexible Housing Option
Data Sheet
Model RF flexible housing option for R-Series sensors with voltage, current, SSI, CANbus,
DeviceNet, Profibus, EtherCAT
®
and EtherNet/IP outputs
®
Time-based Magnetostrictive position sensing principle
Movable position magnet
Magnetic field encompasses
entire waveguide - generated
by the interrogation pulse
Interrogation
Return wire
Waveguide
Strain-Pulse detector
Bias magnet
Benefits of Magnetostriction
Temposonics linear-position
magnetostrictive position sensing principle developed by MTS.
Within the sensing element, a sonic-strain pulse is induced in a
specially designed magnetostrictive waveguide by the momentary
interaction of two magnetic fields. One field comes from a moveable
permanent magnet that passes along the outside of the sensor. The
other field comes from an "interrogation" current pulse applied along
the waveguide. The resulting strain pulse travels at sonic speed along
the waveguide and is detected at the head of the sensing element.
The position of the magnet is determined with high precision and speed
by accurately measuring the elapsed time between the application of
the interrogation pulse and the arrival of the resulting strain pulse with
a high-speed counter. The elapsed time measurement is directly pro-
portional to the position of the permanent magnet and is an absolute
value. Therefore, the sensor's output signal corresponds to absolute
position, instead of incremental, and never requires recalibration or re-
homing after a power loss. Absolute, non-contact sensing eliminates
wear, and guarantees the best durability and output repeatability.
All specifications are subject to change. Contact MTS for specifications and
engineering drawings that are critical to your application. Drawings contained
in this document are for reference only. Go to http://www.mtssensors.com for
the latest support documentation and related media.
SENS RS
O
Document Part Number
551081 Revision B
Magnetic field from
position magnet
Interaction of magnetic
fields causes waveguide to
generate a strain pulse
sensors use the time-based
®
