Temposonics

R-Series Powerlink V2

Operation Manual

Mounting of sensor electronics housing

Mount the sensor electronics housing with 4 M6×45 (ISO 4762)

screws via the mounting block. Note the fastening torque of 6 Nm.

4 M6×45 (ISO 4762) screws

Fastening torque: 6 Nm

Mounting block

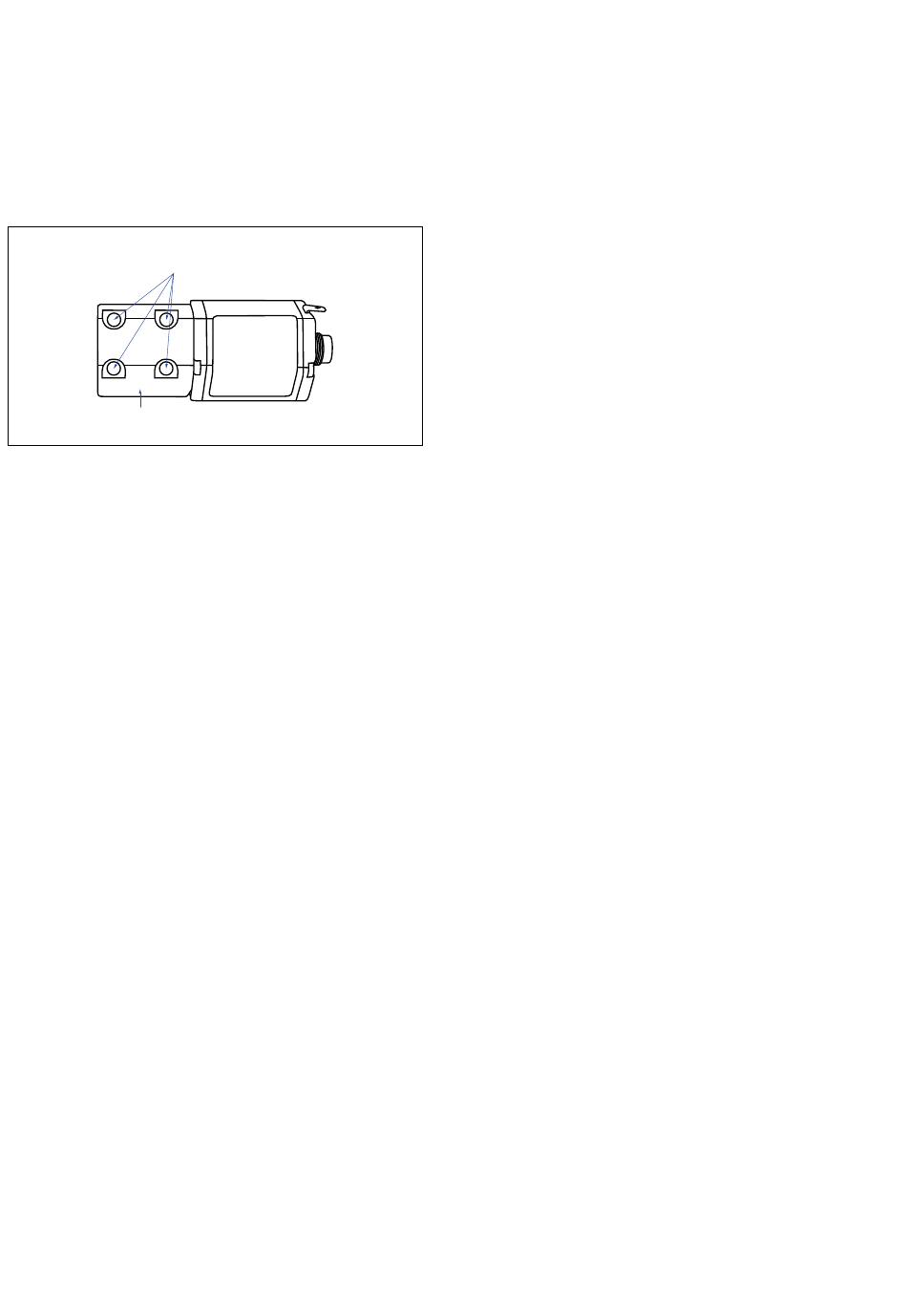

Fig. 22: Mounting of RD4's sensor electronics housing (example of bottom cable entry)

I 18 I
