4.5 Styles and installation of Temposonics
RF-C
RF-M / -S

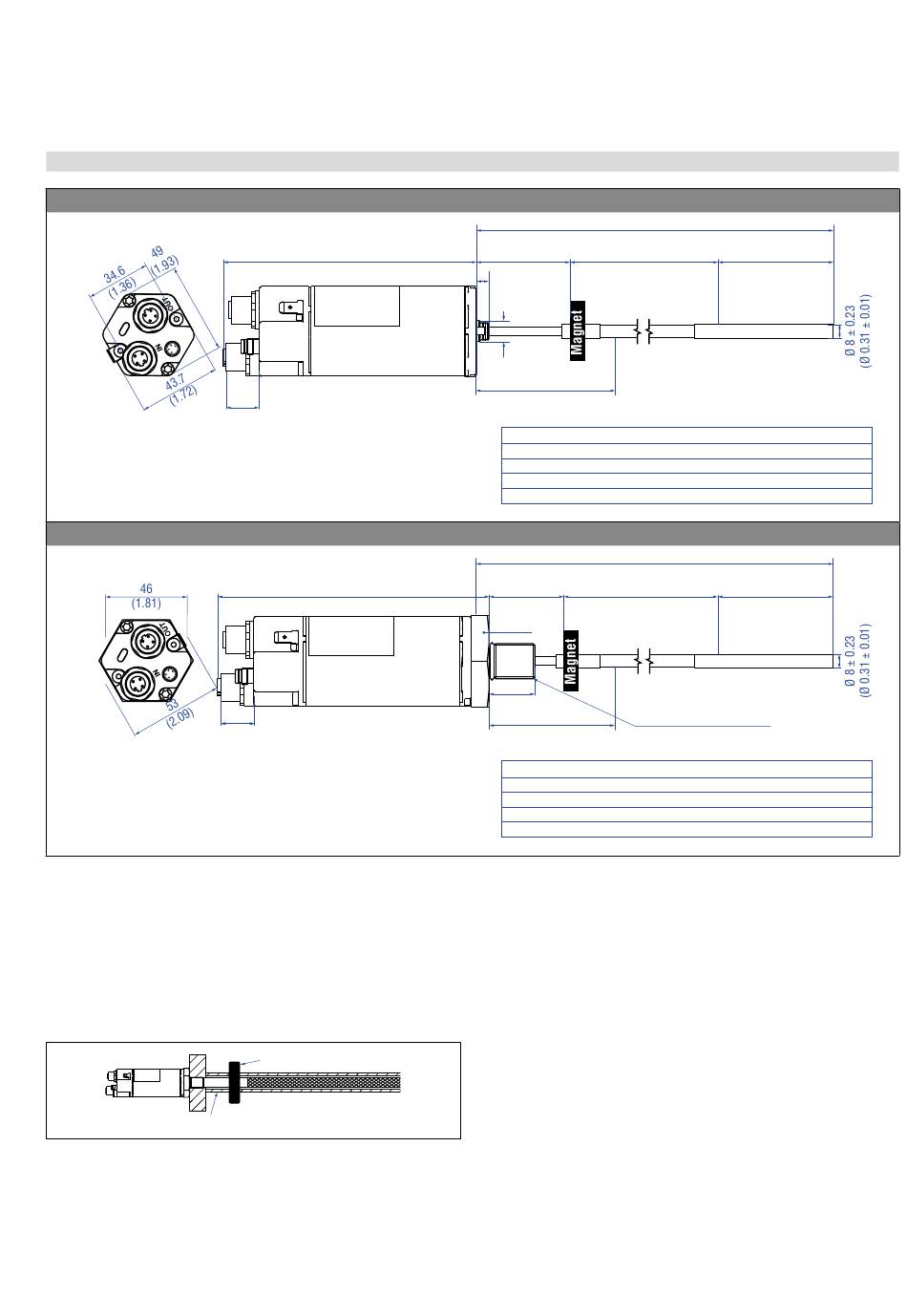

Fig. 23: Temposonics RF base unit with ring magnet (top) and RF with threaded flange with ring magnet (bottom)
®
Note the following information when mounting a RF sensor:
1. Always insert the flexible sensor rod in a support tube
(e.g. pressure rod HD / HL / HP or HFP profile). The support
tube with an inside diameter of 9.4 mm (0.37 in.) consists of
non-magnetic material. The support tube can be straight or
bent (note the bending radius in Fig. 25).
2. Use non-magnetic material for mounting support.
Non-magnetic support tube, inner-Ø 9.4 (0.37)
Fig. 24: Linear measurement
RF
®
Sensor electronics housing
123
(4.84)
18
(0.71)
Sensor electronics housing
133
(5.24)
18
(0.71)
Position magnet
Total length
Null zone Stroke length
61 150...10060
(2.4) (6...396)
7
(0.28)
11.5
(0.45)
Not flexible
107
(4.21)
Stroke length Tolerance of total length
Up to 7620 mm (300.00 in.)
Up to 10,000 mm (393.70 in.) +15 mm (0.59 in.) / −15 mm (0.59 in.)
Up to 15,000 mm (590.55 in.) +15 mm (0.59 in.) / −30 mm (1.18 in.)
Up to 20,000 mm (787.00 in.) +15 mm (0.59 in.) / −45 mm (1.77 in.)
Note:
Tolerance of total length has no influence on the stroke length.
Total length
Null zone Stroke length
51 150...10060
(2.01) (6...396)
A/F 46
25
(0.98)
Not flexible
97
(3.82)
Stroke length Tolerance of total length
Up to 7620 mm (300.00 in.)
Up to 10,000 mm (393.70 in.) +15 mm (0.59 in.) / −15 mm (0.59 in.)
Up to 15,000 mm (590.55 in.) +15 mm (0.59 in.) / −30 mm (1.18 in.)
Up to 20,000 mm (787.00 in.) +15 mm (0.59 in.) / −45 mm (1.77 in.)
Note: Tolerance of total length has no influence on the stroke length.
3. Do never bend beyond the minimum bending radius of
250 mm (9.84 in.)
4. Note the minimum distance to a spatial limitation of 300 mm
(11.81 in.), when mounting / dismounting the sensor (Fig. 25).
5. Note that the first 107 mm (4.21 in.) (for RF-C) respectively
97 mm (3.82 in.) (for RF-M) of the sensor rod are not flexible.
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
I 19 I
Temposonics R-Series Powerlink V2
®
Operation Manual
Dead zone
see table
Dead zone
+8 mm (0.31 in.) / −5 mm (0.20 in.) 94 mm (3.70 in.)
100 mm (3.94 in.)
120 mm (4.72 in.)
140 mm (5.51 in.)
Dead zone
see table
Flange »M«: M18×1.5-6g
Flange »S«: ¾"-16 UNF-3A
Dead zone
+8 mm (0.31 in.) / −5 mm (0.20 in.) 94 mm (3.70 in.)
100 mm (3.94 in.)
120 mm (4.72 in.)
140 mm (5.51 in.)
