3700 Series Flat Panel Industrial PC
3715KPM(T) Keypad Inserts
Figure 2-8 and Figure 2-9 show the keypad insert dimensions for the
3715KPM(T).

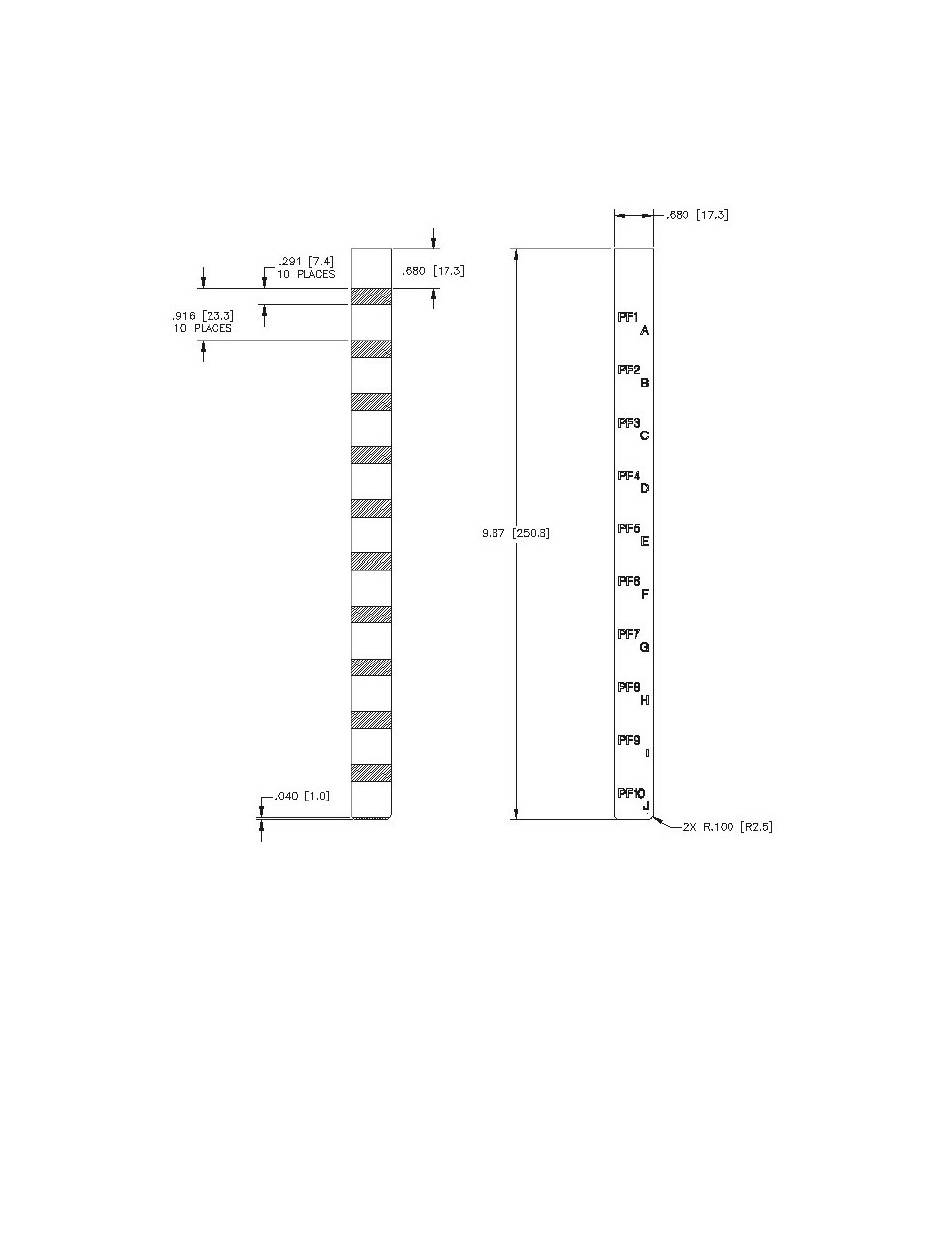

Figure 2-8. 3715KPM(T) Keypad Inserts with Dimensions (PF1 – PF10)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Note : The PF11-PF20 insert has the same dimensions
26
Chapter 2 – Installation
143311 (H)
