3700 Series Flat Panel Industrial PC
3712KPM(T) & 3715KPM(T) Front Panel
The 3712KPM(T) and 3715KPM(T) feature function keys on either side of the flat
panel display (PF1-PF20), function keys below the display (F1-F20), a numeric
keypad, window keys, a cursor control keypad, diagnostic LEDs, an integrated
mouse, industrial mouse/keyboard and USB ports. All keypad keys are
reprogrammable
Chapter 3 for more details.
1
All keypad keys can be programmed to perform any function necessary.
2
You are able to create your own, custom keypad inserts to reflect any reprogramming you may have
done.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

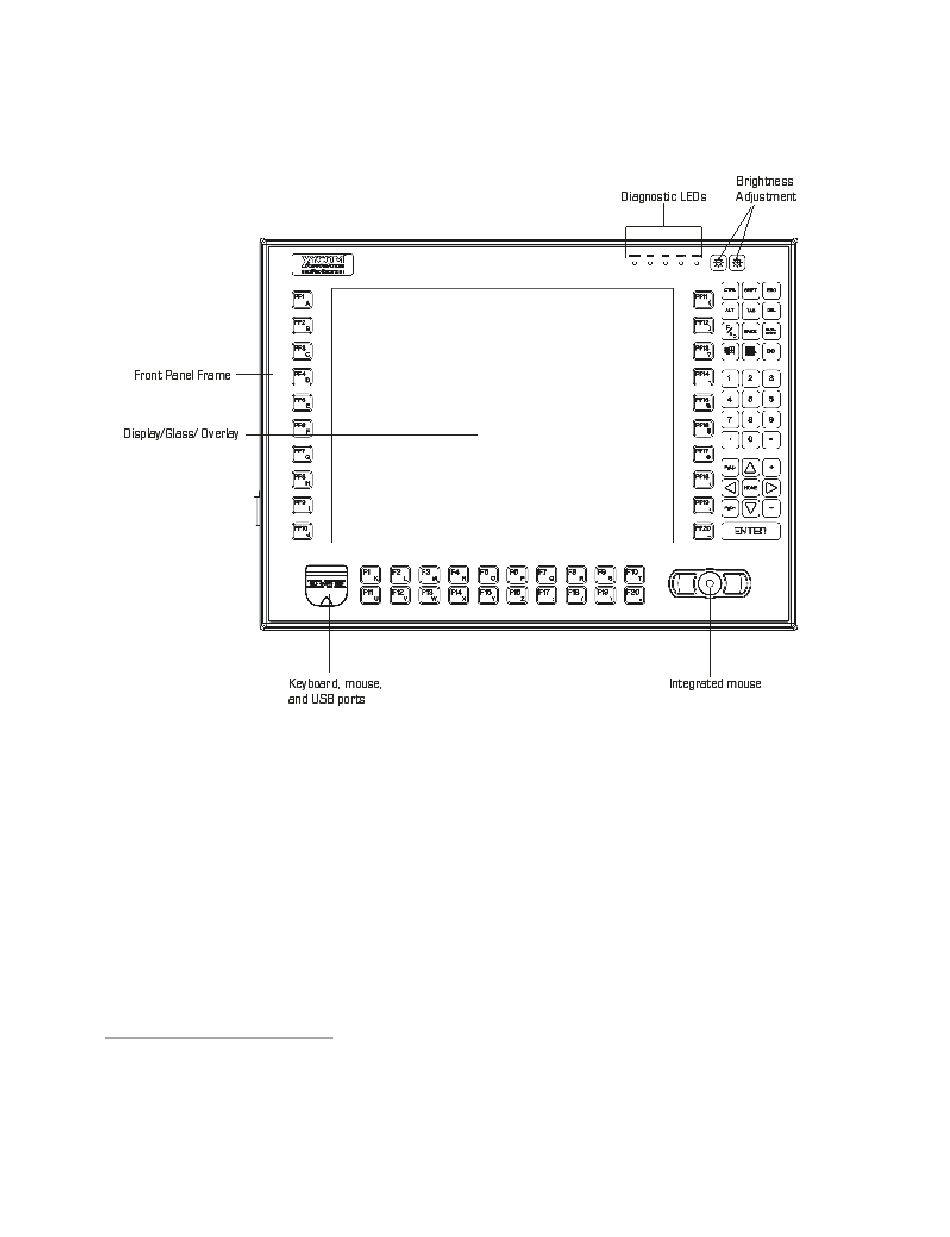

Figure 1-2. 3715KPM(T) Front Panel
1
, except the F/A key, and all function keys are relegendable
5
Chapter 1 – Introduction
2
. See
