3700 Series Flat Panel Industrial PC
Chapter 2 – Installation
3712KPM(T) Keypad Inserts
Figure 2-6 and Figure 2-7 show the keypad insert dimensions for the
3712KPM(T).

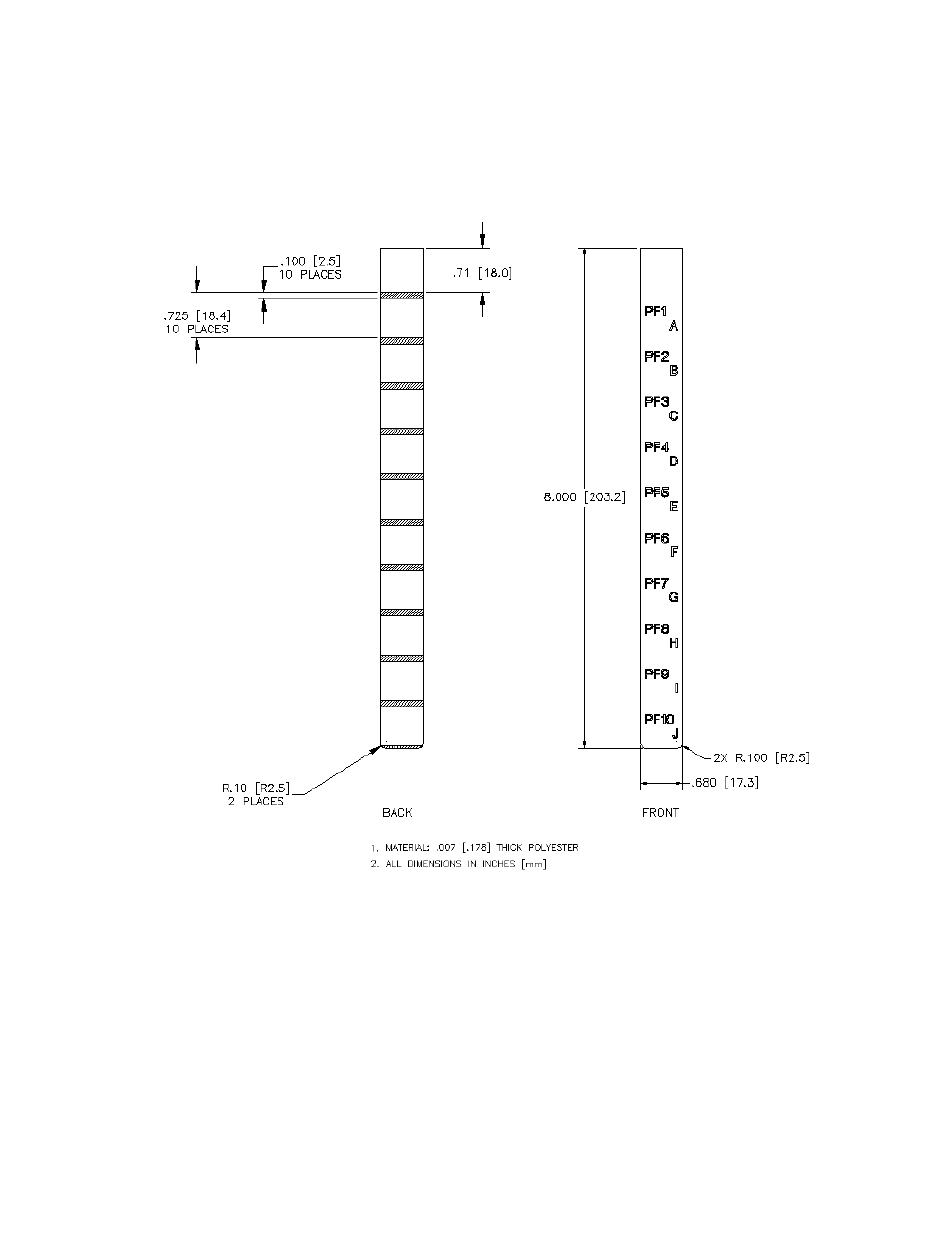

Figure 2-6. 3712KPM(T) Keypad Inserts with Dimensions (PF1 – PF10)
Note : The PF11-PF20 insert has the same dimensions
24
143311 (H)
