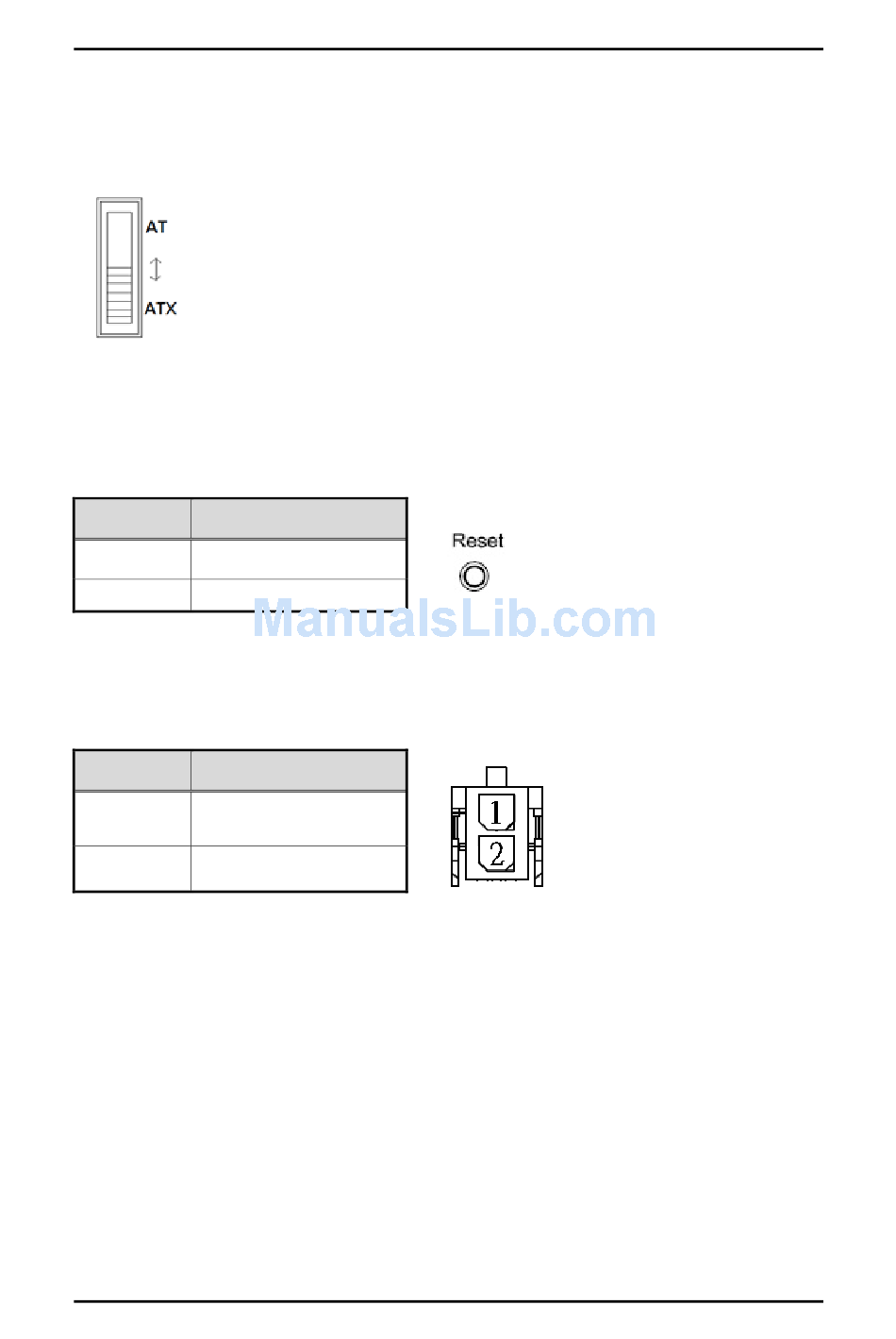

1.7.10 AT/ATX Switch (SW2)

If you set AT/ATX switch to AT mode, the system will be automatically power on without
pressing soft power button during power input; we can use this switch to achieve auto power
on demand.

1.7.11 Reset Button(SW3)

The Reset button can allow users to reset SBC87853.
Function Description
On Reset system
Off Keep system status

1.7.12 Remote Power Switch Connector (PWRBT1)

One 2-pin connector output for remote power on/off switch.
Function Description
Short(1-2) Turn on/off system
Open Keep system status
