2.2 Installation of Mini PCIe Module (Full-Size)

Step 1 Turn off the system and unplug the power cord.

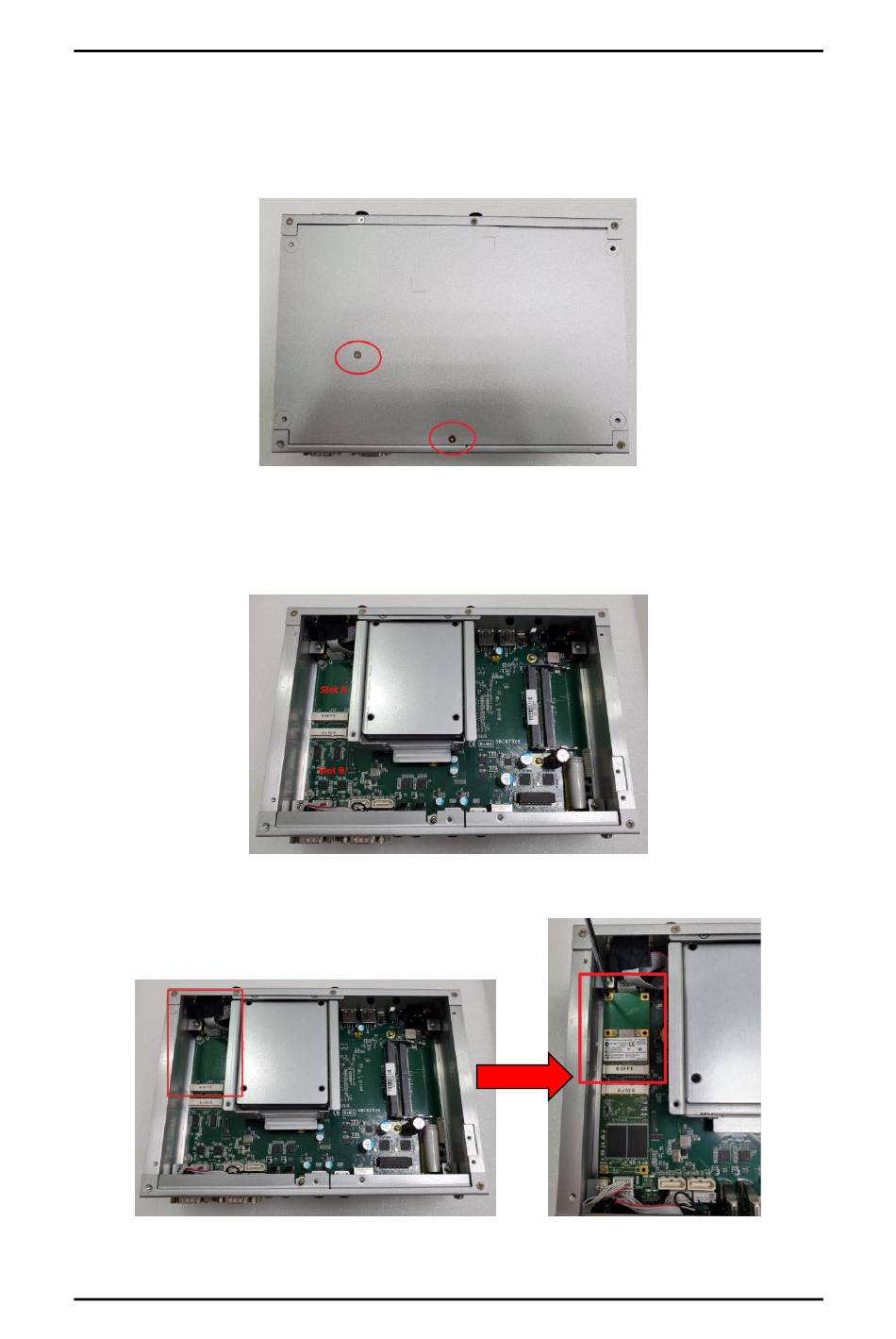

Step 2 Turn the system upside down to locate screws at the bottom, and

loosen two screws as red marked.

Step 3 The eBOX630-528 has two mini card slots:

Slot A (CN6) (USB + PCIe signal)

Slot B (CN7) (USB + PCIe + SATA signal)

Step 4 Slot A is used as the wireless mini card slot, insert the WiFi or LTE

mini PCIe module into the slotand fasten the screw.

Hardware Installation

eBOX630-528-FL Series User's Manual
