Operation

Pos: 32.2 /BA/Sicherheit/2. Vorangestellte Warnhinweise/WARNUNG - Nichtbeachtung der grundlegenden Sicherheitshinweise alte Form @ 254\mod_1397485793575_78.docx @ 1953347 @ @ 1
WARNING!
If the basic safety instructions are not followed, people may be seriously injured or
killed.
To avoid accidents, the basic safety instructions in the chapter Safety must have been
read and followed, see chapter Safety "Basic safety instructions".
Pos: 32.3 /BA/Sicherheit/2. Vorangestellte Warnhinweise/WARNUNG - Nichtbeachtung der Sicherheitsroutinen alte Form @ 273\mod_1404117435996_78.docx @ 2058712 @ @ 1
WARNING!
If the safety routines are not adhered to, people may be seriously injured or killed.
To avoid accidents, the safety routines in the chapter Safety must be read and followed,
see chapter Safety "Safety routines".
Pos: 32.4 /BA/Bedienung /Schwader/Achtung Maschine ist für Vorwärtsfahrt konzipiert. @ 291\mod_1410427944026_78.docx @ 2294406 @ @ 1
CAUTION! - Do not drive in reverse when using the machine for work.
Effect: Damage to the machine.
The machine is designed to travel forwards. Never reverse while the machine is in switched on
and in working position. Lift rotors first.
Pos: 32.5 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.docx @ 1890988 @ @ 1
Pos: 32.6 /Überschriften/Überschriften 2/U-Z/ZZinkenschutze von den Zinkenspitzen entfernen @ 36\mod_1262940295076_78.docx @ 338395 @ 2 @ 1
9.1

Removing the tine protections from the tine tips

Pos: 32.7 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenschutze entfernen SW TC 680_760 @ 213\mod_1389957184427_78.docx @ 1748378 @ @ 1

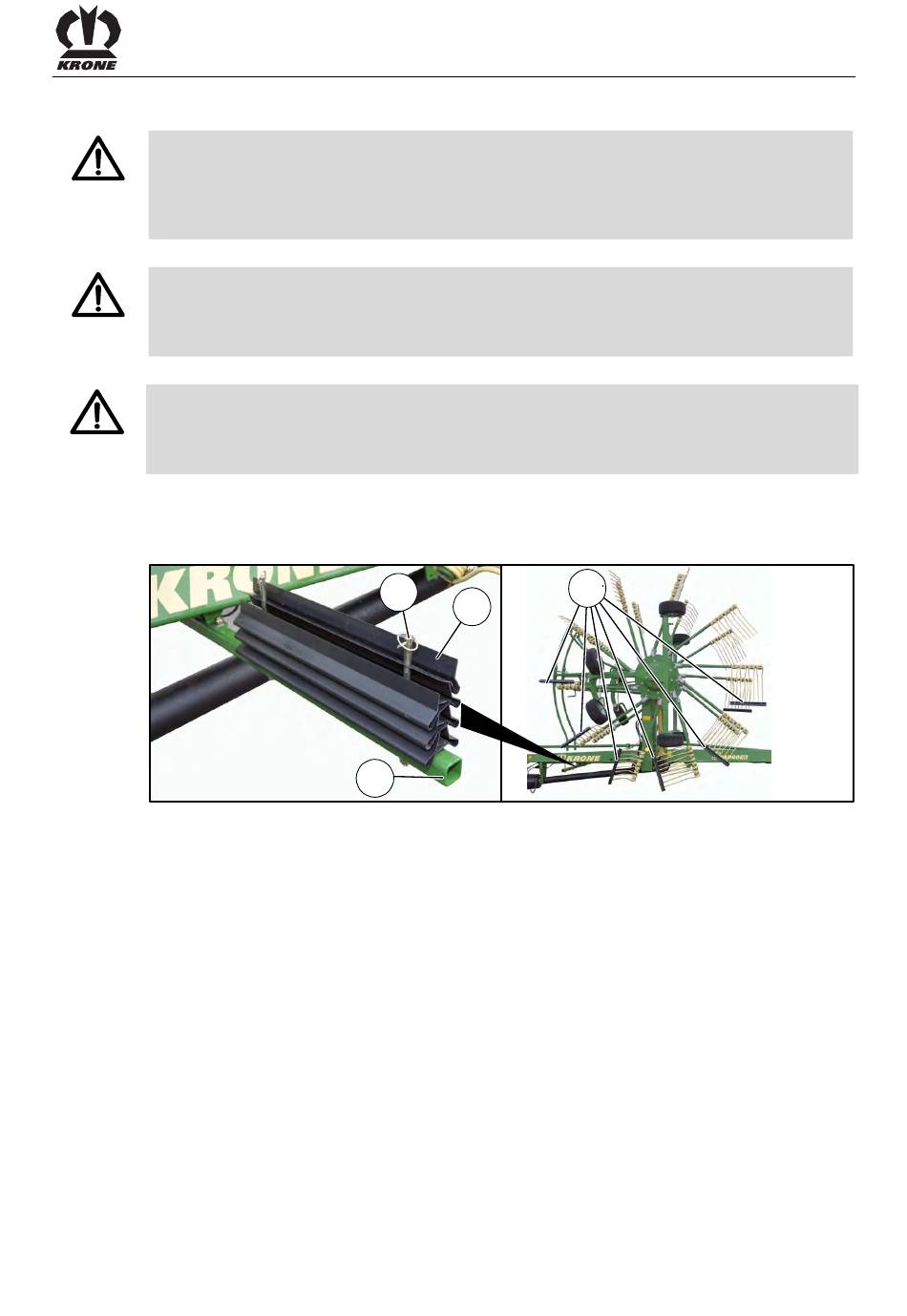

Fig. 32
Turn off the tractor and secure it against the possibility of rolling back.
Remove the tine guards (1) from the machine.
Insert the tine guards into the support (2) and secure them with linch pins (3).
Repeat this process for the other machine side.
Pos: 32.8 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
3
1
2
1
Operation
SW700064_1
63
