9.6.2

For Plus Version

Pos: 32.43 /BA/Bedienung /Schwader/Kreiselhöhe einstellen (vorher: Arbeitstiefe)/Einstellen der Arbeitshöhe elektrisch_Bild Swadro TC 680_760 @ 361\mod_1439392517687_78.docx @ 2667476 @ @ 1
3

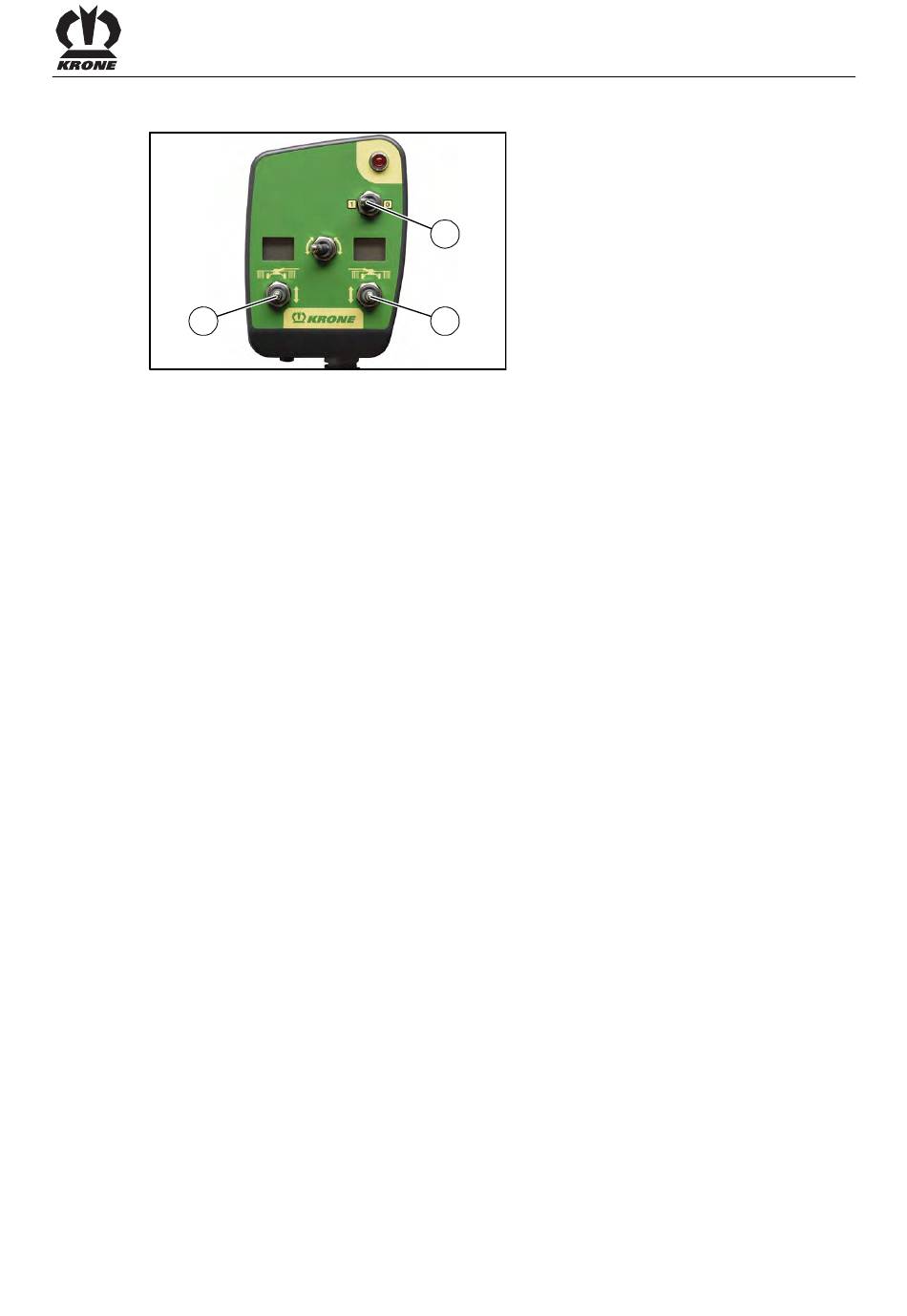

Fig. 41
Pos: 32.44 /BA/Bedienung /Schwader/Kreiselhöhe einstellen (vorher: Arbeitstiefe)/Einstellen der Arbeitshöhe_elektrisch_Text Swadro TC 680_760 @ 361\mod_1439392384655_78.docx @ 2667445 @ @ 1
The working height can be adapted to crops and terrain while the machine is in operation or in
headland position.
To do this:
• Raise lower links until the lower link pinions are approx. 63 cm above the ground.
• Move outrigger arms to headland position or working position.
• Move switch (1) to position 1.
The operation panel is switched on.
Setting the working height on left rotor:
• To increase the working height of left rotor, press switch (3) up.
• To reduce the working height of left rotor, press switch (3) down.
Setting the working height on right rotor:
• To increase the working height of right rotor, press switch (4) up.
• To reduce the working height of right rotor, press switch (4) down.
