Maintenance
Pos: 40.13 /Überschriften/Überschriften 2/A-E/AAbweichendes Drehmoment @ 155\mod_1363620849669_78.docx @ 1373212 @ 2 @ 1
12.4

Deviating Torque

Pos: 40.14 /BA/Wartung/Schwader/Zinken / Zinkenarme/Prüfen der Schrauben an den Zinken nach Wartungstabelle_Swadro TC 680_TC 760_TC 760 X-tr @ 222\mod_1392012676954_78.docx @ 1804815 @ 3 @ 1
12.4.1

Testing the Screws on the Tines

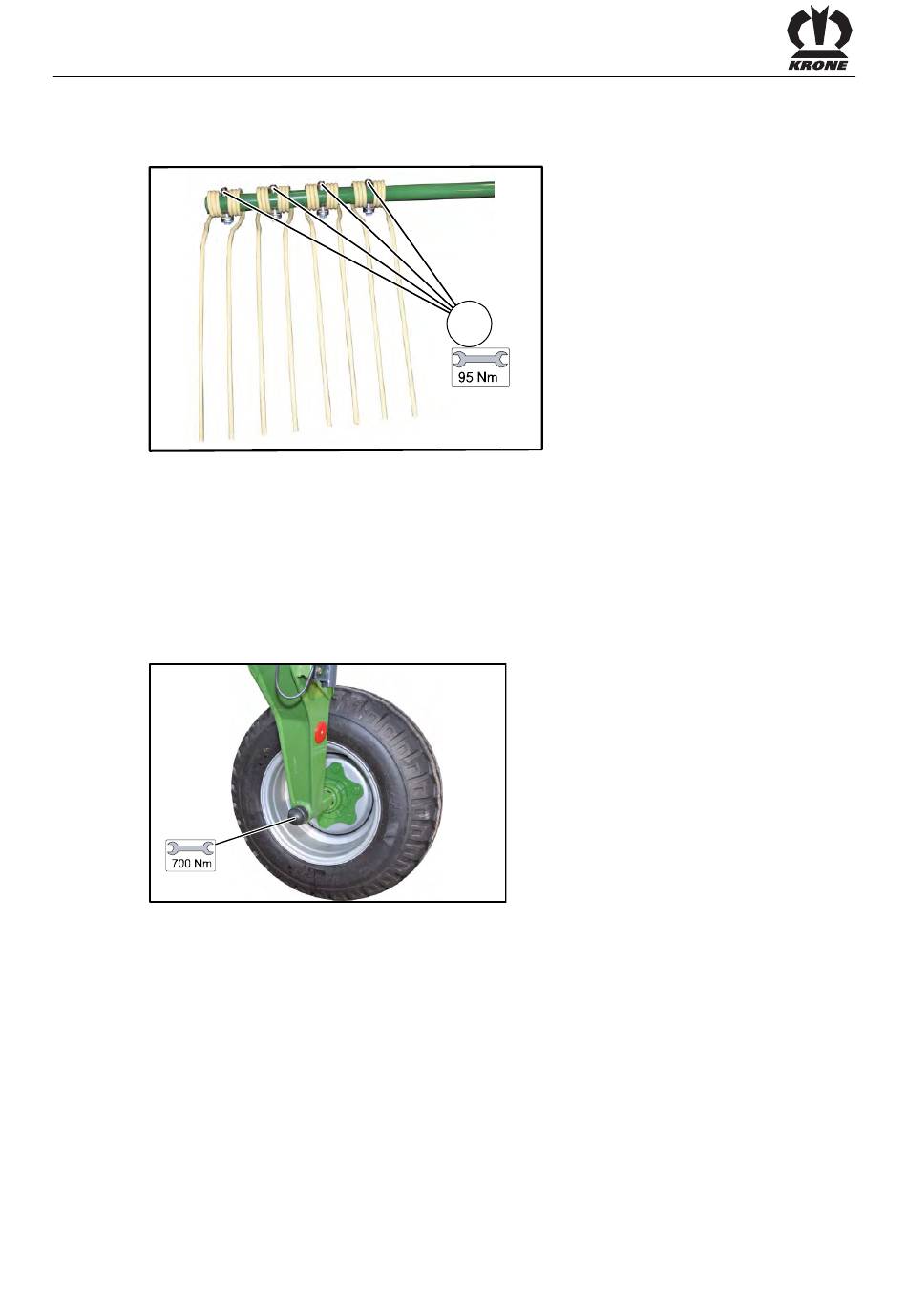

Fig. 67
Testing the Screws on the Tines: According to the Maintenance Table
Pos: 40.15 /BA/Wartung/Schwader/Zinken / Zinkenarme/Prüfen der Schrauben an den Zinken_Vorgehen bei abweichendem Anzugsdrehmoment @ 240\mod_1395147752001_78.docx @ 1891022 @ @ 1
When having released the screws,
• remove the nut.
• apply adhesive (high-strength) on the threading overhang of the screw.
• lift the tines on the tine end and tighten the nut to the torque specified below.
Pos: 40.16 /BA/Wartung/Reifen/Schwader/Anziehdrehmoment der Räder am Fahrwerk Swadro TC 680_TC 760_TC 760 X-tr @ 222\mod_1392014049234_78.docx @ 1805141 @ 3 @ 1
12.4.2

Torque of Wheels on the Running Gear

Fig. 68
Check locknut: According to the maintenance table
Pos: 40.17 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
106
1
SW700030_1
SW700079_1
