Swivelling tine arms into transport position

Pos: 32.70 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 32.71 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung starre Zinkenarme @ 78\mod_1313495329521_78.docx @ 691511 @ 3 @ 1
9.9.1

With rigid tine arms design

Pos: 32.72 /BA/Bedienung /Schwader/Zinken / ZinkenarmeZinkenarme in Transportstellung_Ausführung starre Zinkenarme_Bild_TC- und TS-Maschinen @ 359\mod_1439215612757_78.docx @ 2663361 @ @ 1

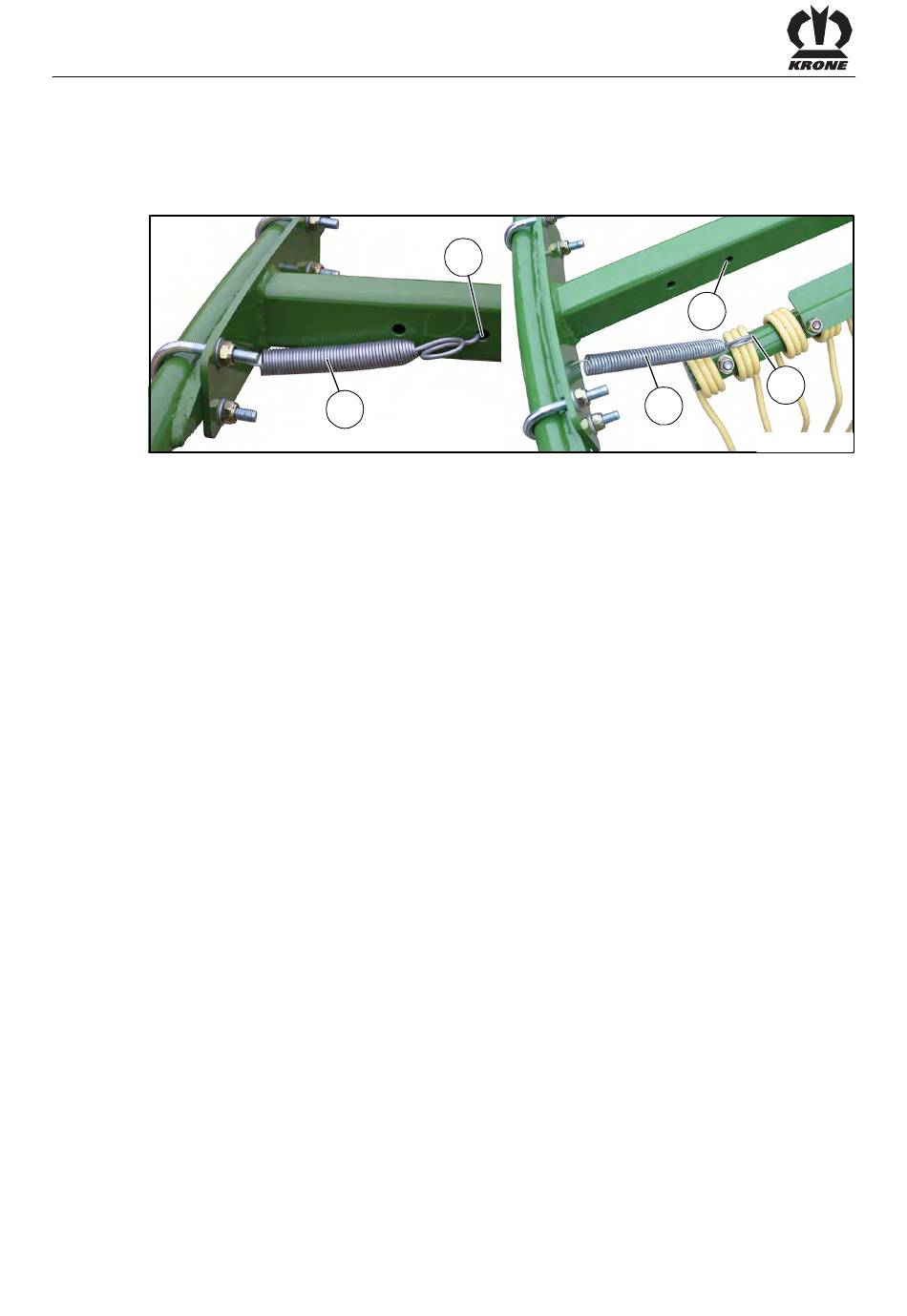

Fig. 45
Pos: 32.73 /BA/Bedienung /Schwader/Zinken / ZinkenarmeZinkenarme in Transportstellung_Ausführung starre Zinkenarme_Text @ 359\mod_1439213939407_78.docx @ 2663120 @ @ 1
Lower outrigger arms into working position.
Switch off tractor and secure it against rolling away.
To prevent the rotors from turning, unhook the tension spring (4) from the fastening hole (5)
and hook it on the tine (6) (rotor locking device, if necessary).
